10) Loosely install the 4 screws (two front and two rear) that secure the lower left Magazine Track
to the chassis (Figure
11) Tighten the magazine track screws at the front panel first and then the two screws at the rear of
the track.
12) Replace the Front Panel of the module using the
instructions in this chapter.
13) Mount Lower Cooling Fan.
a.Slide the fan over the two mounting standoffs while guiding the excess cable through the
cable access hole into the Card Cage back plane area.
b.Install the two screws that secure the fan to the standoffs
c.Slide the bracket up the Shuttle Flex Cable and align to the mounting holes. Replace the two
screws that secure the Flex Cable Bracket
the bracket.
4) Slide the lower left Magazine on to the Magazine Track.
NOTE: Ensure that the magazine does not snag the Kapton Tape.
5) Replace the Cooling Fan Cover Assembly of the module using the
and Replace" instructions in this chapter.
6) Remove the Tabletop Cover (if unit is a tabletop model) and Front Chassis Cover of the
module using the "Library Covers Remove and Replace"
7) Turn on the library module as follows,
1. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
2
3–93).
"Front Panel Remove and Replace"
(Figure
(Figure 3–97).
1

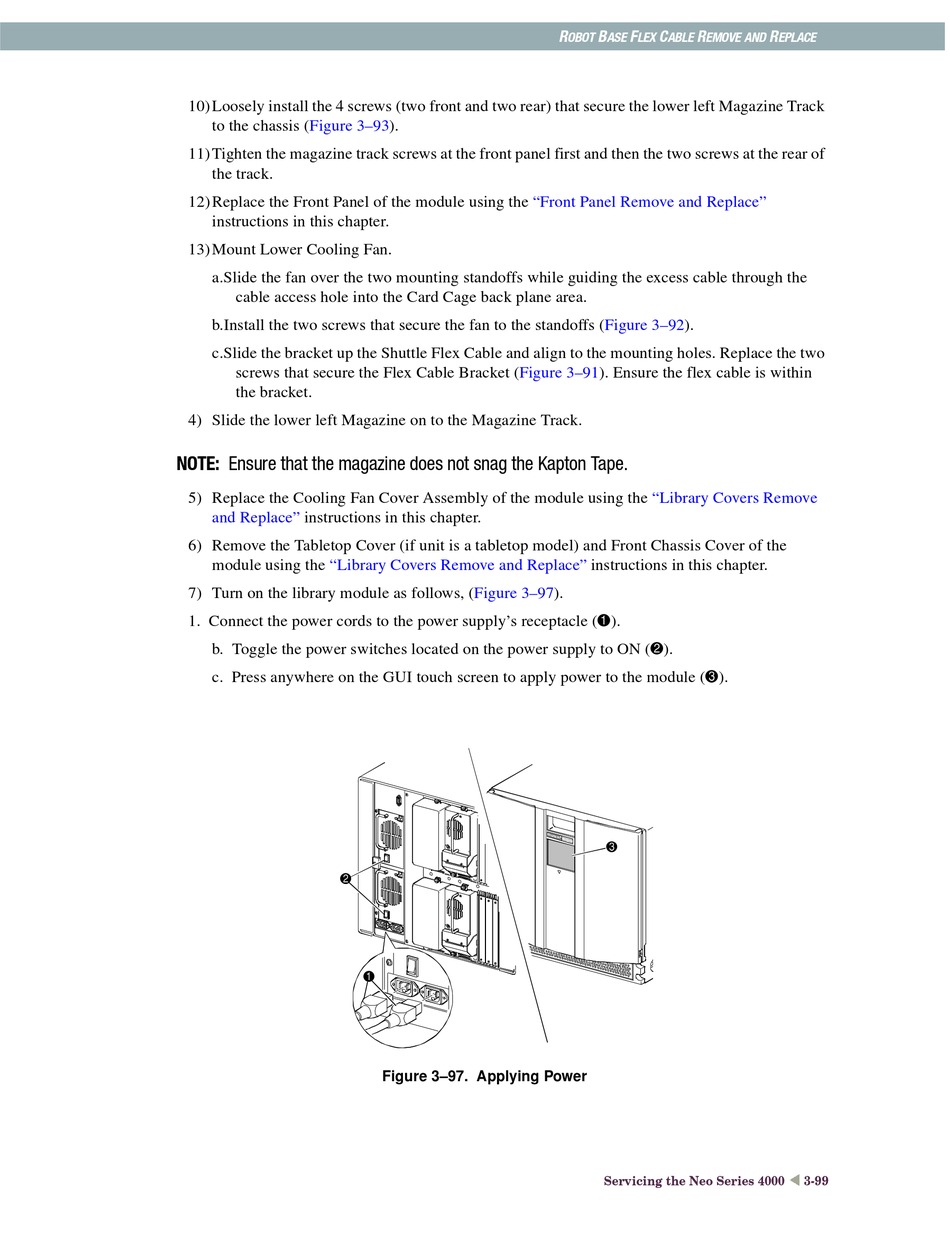

Figure 3–97. Applying Power
R B F C R
OBOT ASE LEX ABLE EMOVE AND
(Figure 3–92).
3–91). Ensure the flex cable is within
"Library Covers Remove
instructions in this chapter.
3
Servicing the Neo Series 4000
R
EPLACE
3-99
