Drive Guides Remove and Replace

There is a Drive Guide in the bottom of each of the drive bays. The Drive Shoe Assembly must be
removed to remove the Drive Guide. The steps are the same to remove either Drive Guide.

Drive Guides Removal

Drive Guides Replacement

2-50 Servicing the Neo Series 2000
u
1) If the library is operational, remove any cartridges in the drives using the front panel controls
or application software. Exit the application software and halt the operating system if
necessary.
2) Power off the library using the Graphical User Interface (GUI) and then switch the Master
Power Switch on the Power Supply at the rear of the module to the off (0) position.
3) Remove the power cord from the receptacle.
4) Remove the Drive Shoe Assembly for the Drive Guide to be replaced using
Assembly Remove and Replace"
5) Remove the outer skin and Fan Cover Assembly using
instructions in this chapter.
6) Remove the four flat-head screws that mount the drive guide in the chassis, see
7) Remove the Drive Guide from the library.

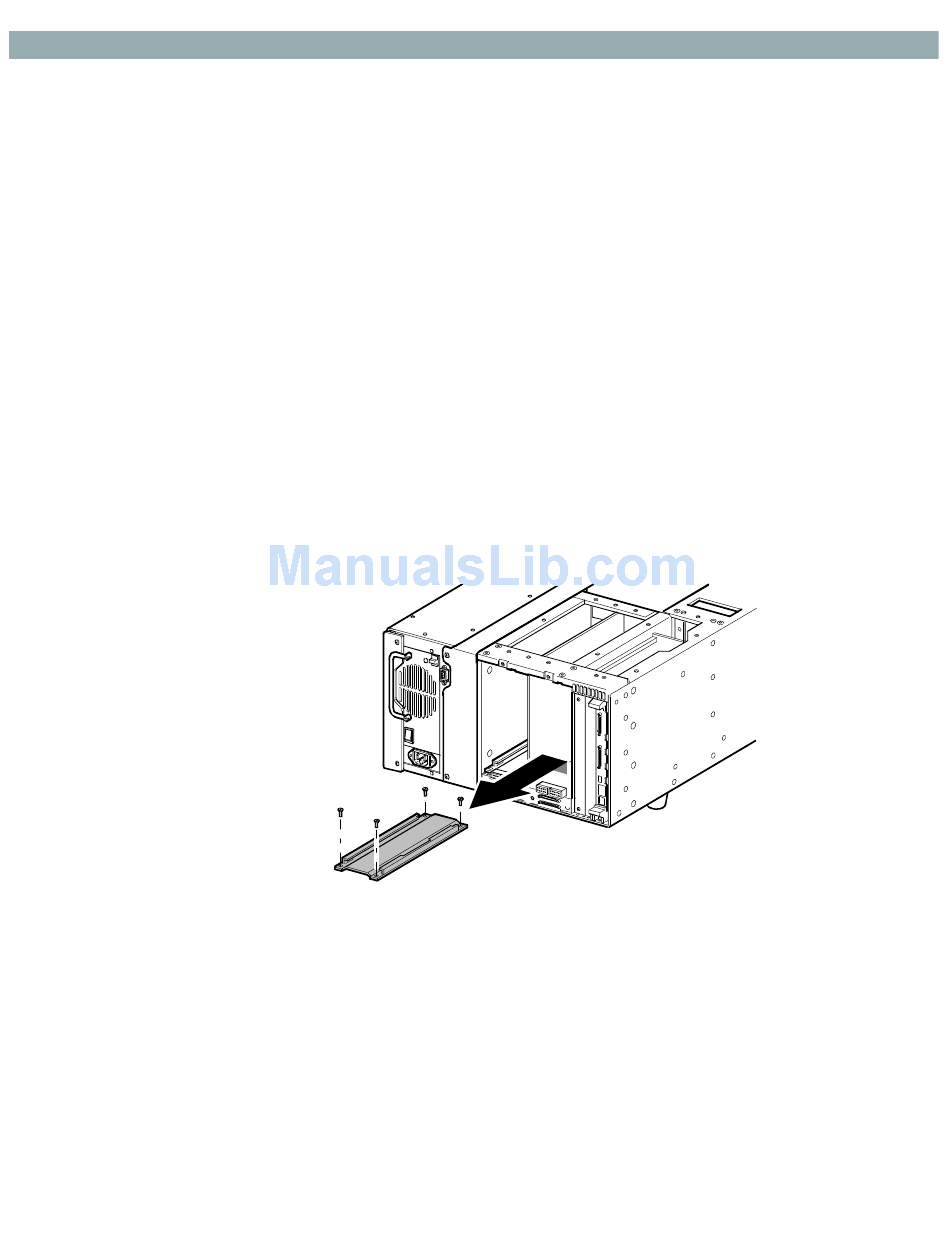

Figure 2–49. Drive Guide Removal
1) Position the Drive Guide in the drive bay with the two straight-sided holes to the rear of the
library, see Figure 2–49.
2) Replace the four flat-head screws that mount the drive guide in the chassis.
instructions in this chapter.
"Library Covers Remove and Replace"
"Drive Shoe
Figure 2–49.
Neo-9061
