D S A R
RIVE HOE SSEMBLY EMOVE AND
2-22 Servicing the Neo Series 2000
u
R
EPLACE
2) Push the Drive Shoe Assembly slowly into the receiver until it seats against the back of the
library.
WARNING: When inserting the Drive shoe Assembly into the chassis, push evenly on both the handle
and the SCSI board connector (bottom portion of the assembly) until it is seated. Damage to the
connector pins and drive communication errors may occur if this procedure is not followed.
3) Tighten the two captive retainer screws to secure the module to the library.
4) If the removal and replacement was done with the library operational, activate the drive by
selecting Menu > Maintenance > Replace Drive > Activate Drive n.
5) If the power was off during the procedure, power on the library. The drive will be activated
during the power on initialization of the library.
6) Turn on the library module, see
1
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
Figure 2–21.
2
3

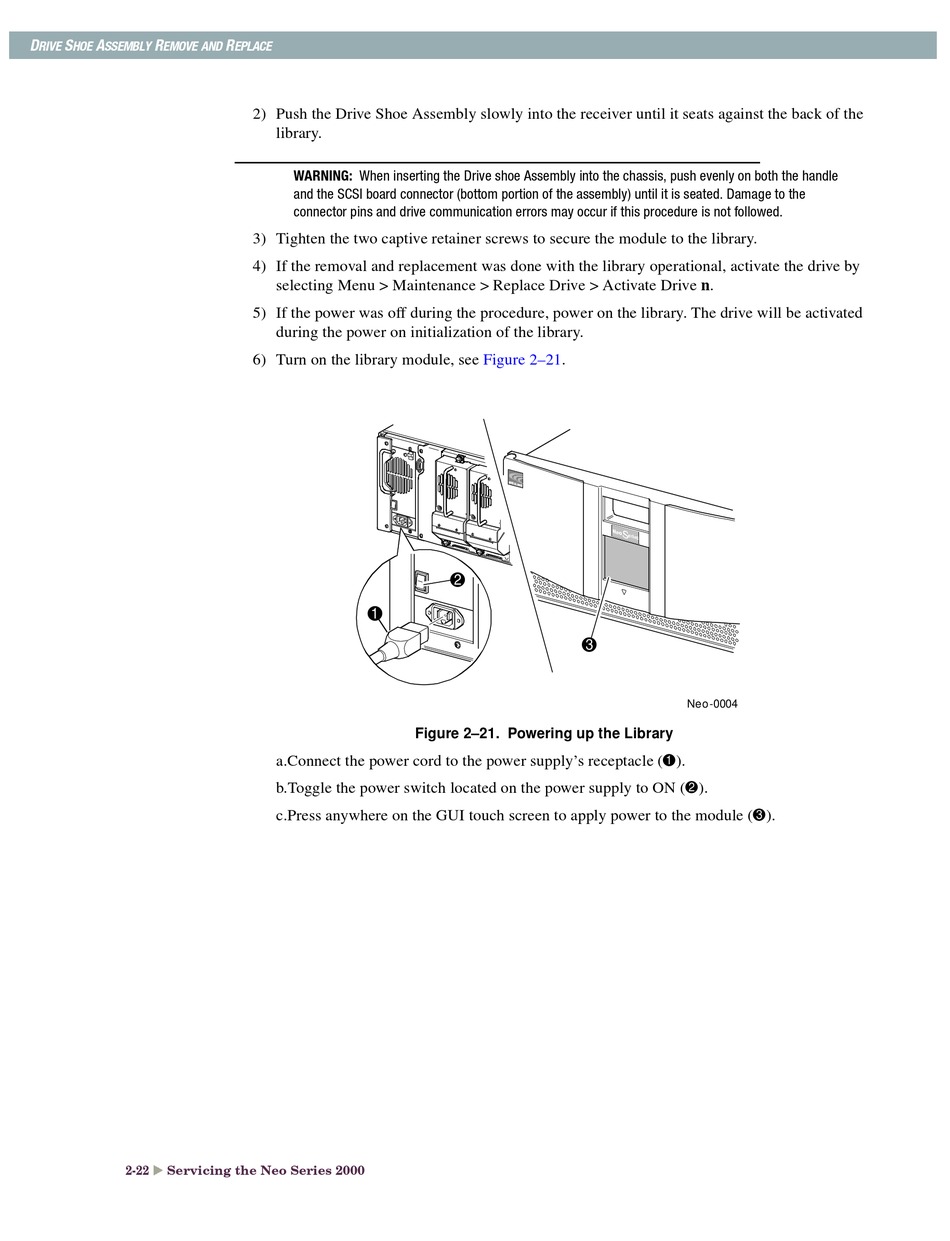

Figure 2–21. Powering up the Library
Neo-0004
