Upper and Lower SCSI I/O Boards

1
2

Table 6-15 SCSI I/O Board Connectors (bottom side)

Figure Legend
1
2
3
4

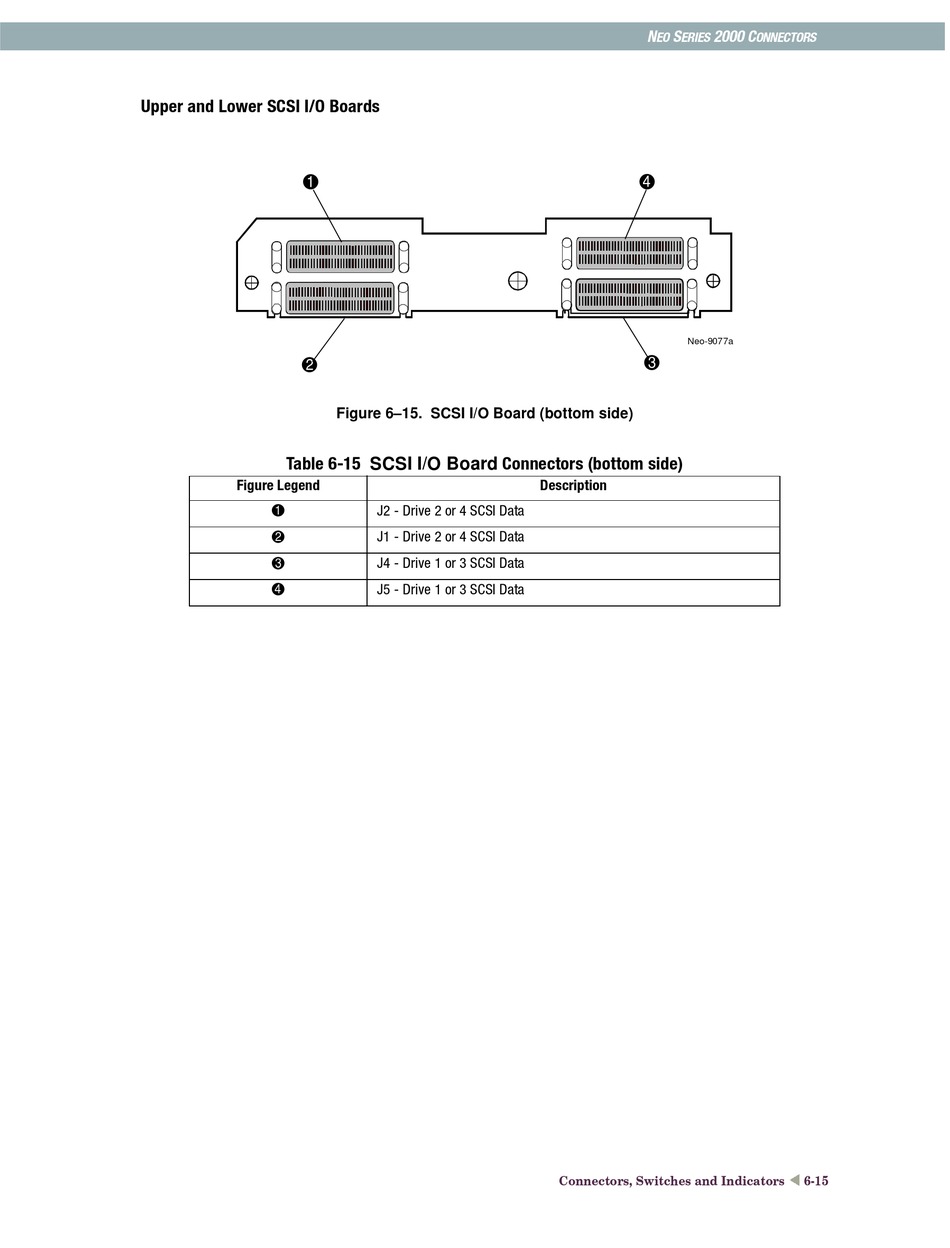

Figure 6–15. SCSI I/O Board (bottom side)
J2 - Drive 2 or 4 SCSI Data
J1 - Drive 2 or 4 SCSI Data
J4 - Drive 1 or 3 SCSI Data
J5 - Drive 1 or 3 SCSI Data
