Figure 3-86 Motor Cable / Mounting Screws; Figure 3-87 Rear Vertical Axis Screws Removed - Overland Storage Neo Series Library Service Manual

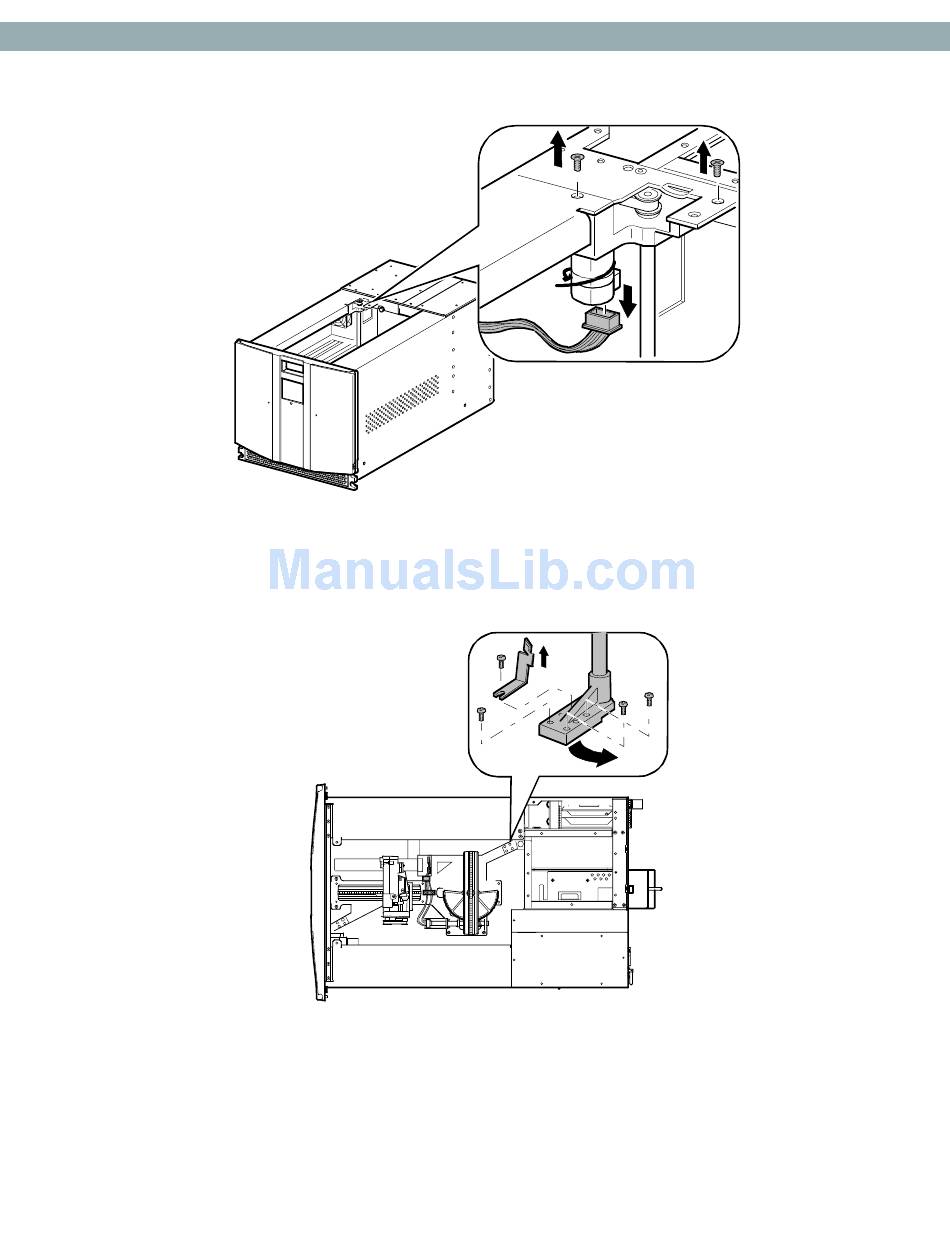

Figure 3–86. Motor Cable / Mounting Screws
10) Remove the four screws that secure the rear Vertical Axis assembly to the robotics base.
11) Remove the screw rail clamp and retain,
Figure 3–87. Rear Vertical Axis Screws Removed
R V A A
EAR ERTICAL XIS SSEMBLY
Neo-7004
(Figure 3–87).
Neo-7001d
Servicing the Neo Series 4000
R R
EMOVE AND EPLACE
3-89
