Library Controller Card Remove and Replace

The Library Controller Card is installed in a card cage assembly on the right at the rear of the library. The
Library Controller Card must be installed in the right-most slot. It will not work in the other slots. The
SCSI interface cable(s), terminator, 10 Base T cable and RS-232 cable must be removed to replace the
Library Controller Card.

Library Controller Removal.

Library Controller Replacement

2-30 Servicing the Neo Series 2000
u
R
EPLACE
1) Exit the application software and halt the operating system if necessary.
2) Power off the library using the Graphical User Interface (GUI) and then switch the Master
Power Switch on the power supply at the rear of the module to the off (0) position. Unplug the
power cord.
3) Remove the power cord from the receptacle.
4) Remove the SCSI interface cable(s), terminator, 10 Base T cable and RS-232 cable.
5) Loosen the two captive hold-down screws, see
6) Disconnect the card by spreading the ejector handles apart.
7) Pull the Library Controller Card out of the card cage.
CAPTIVE
HOLD-DOWN
SCREWS

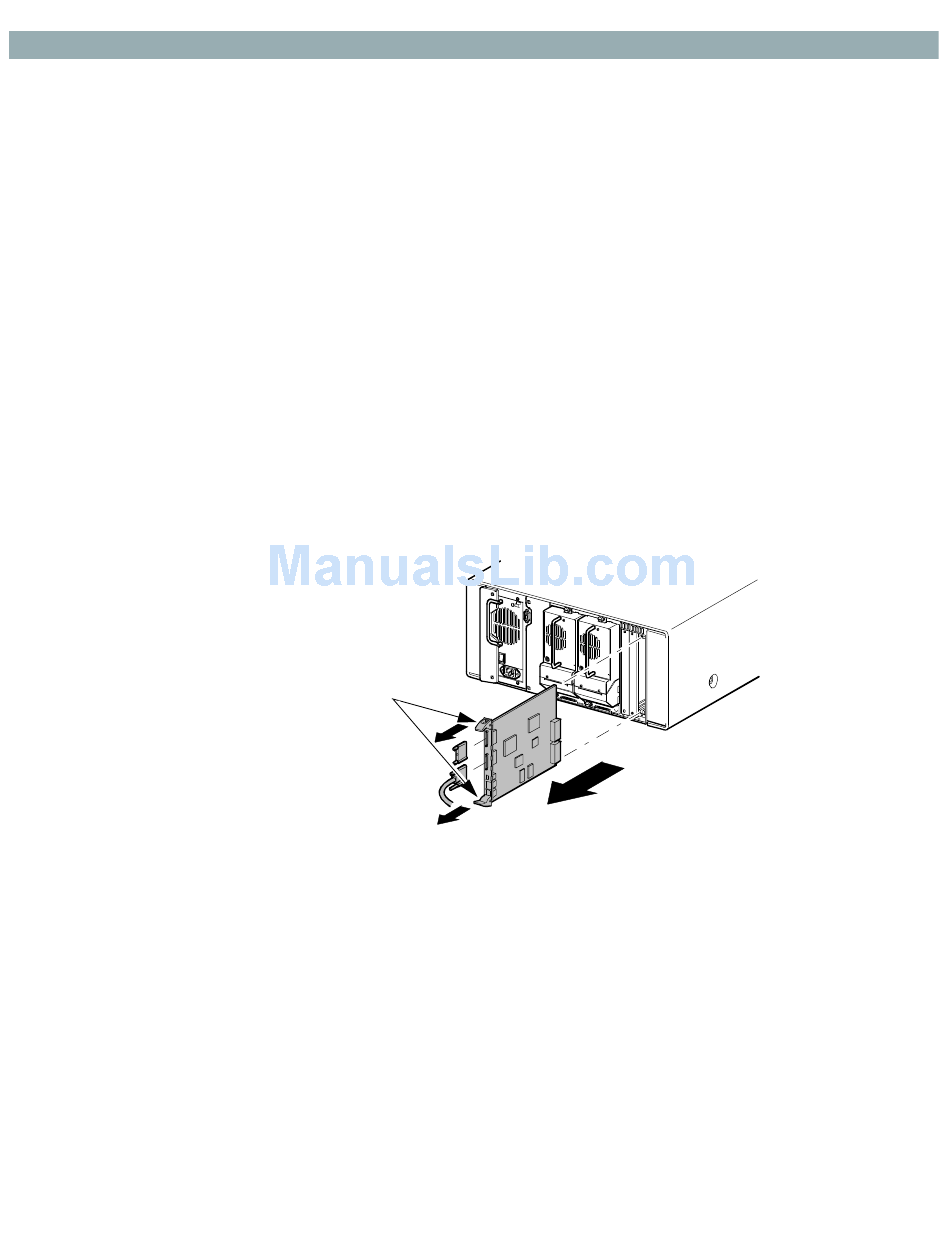

Figure 2–29. Library Controller Card Removal
1) Position the Library Controller Card with the SCSI connectors toward the top and align the
edges of the PCB with the right most slots in the card cage, see
2) Push the Library Controller Card into the card cage until the ejector handles pivot toward each
other. Move the ejector handles toward each other to fully seat the Library Controller Card.
3) Tighten the two captive hold-down screws.
4) Replace the SCSI interface cable(s), terminator, 10 Base T cable and RS-232 cable.
Figure 2–29.
Neo-9052
