Move Media

Selecting this option lets you display the Move Media screen, see
lets you remove a cartridge from a tape drive, to load a cartridge to a tape drive or to move cartridges
within the library.
4-10
Operation
u

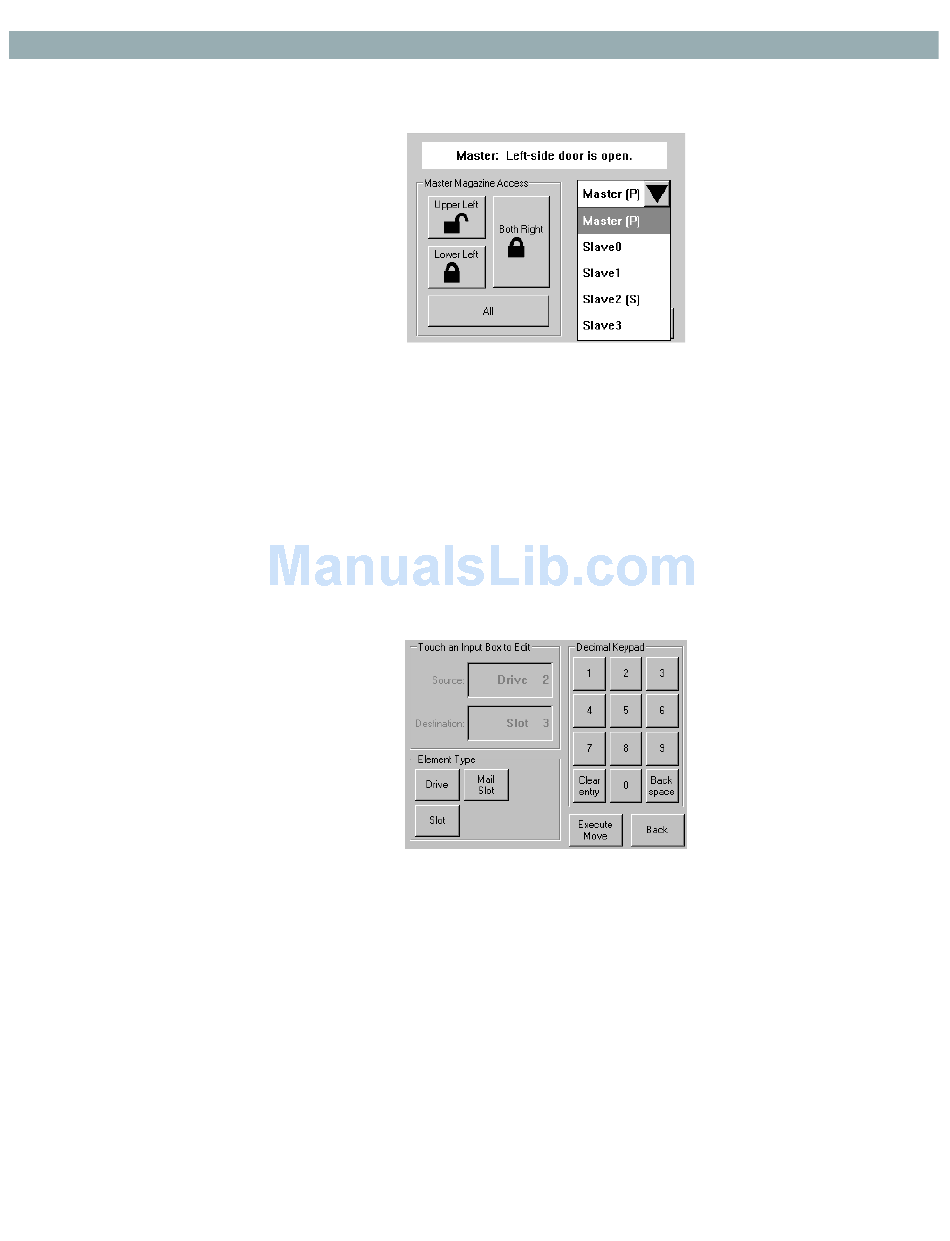

Figure 4–11. Access Magazine Screen
NOTE: In a scaled multi-module library system
button on the Master GUI is the only method to access the left and right magazines of all libraries
in the stack.
The following illustrates moving a cartridge from Drive 2 to Slot 7:
1) Touch the Source Input Box or Element Type from the Move Media screen. The Source Input
Box will change from gray to an active state
2) Touch the source you want to move, from the Source Element Type selections. The options
available are Drive, Mail Slot and Slot, Drive 2 is used for this example.
(Figure
Figure 4–12. Move Media Screen
Figure
4–11), depressing the Magazine Access
Figure
4–12. The Move Media option
4–13.
