Mail Slot Interlock Replacement

3-26 Servicing the Neo Series 4000
u

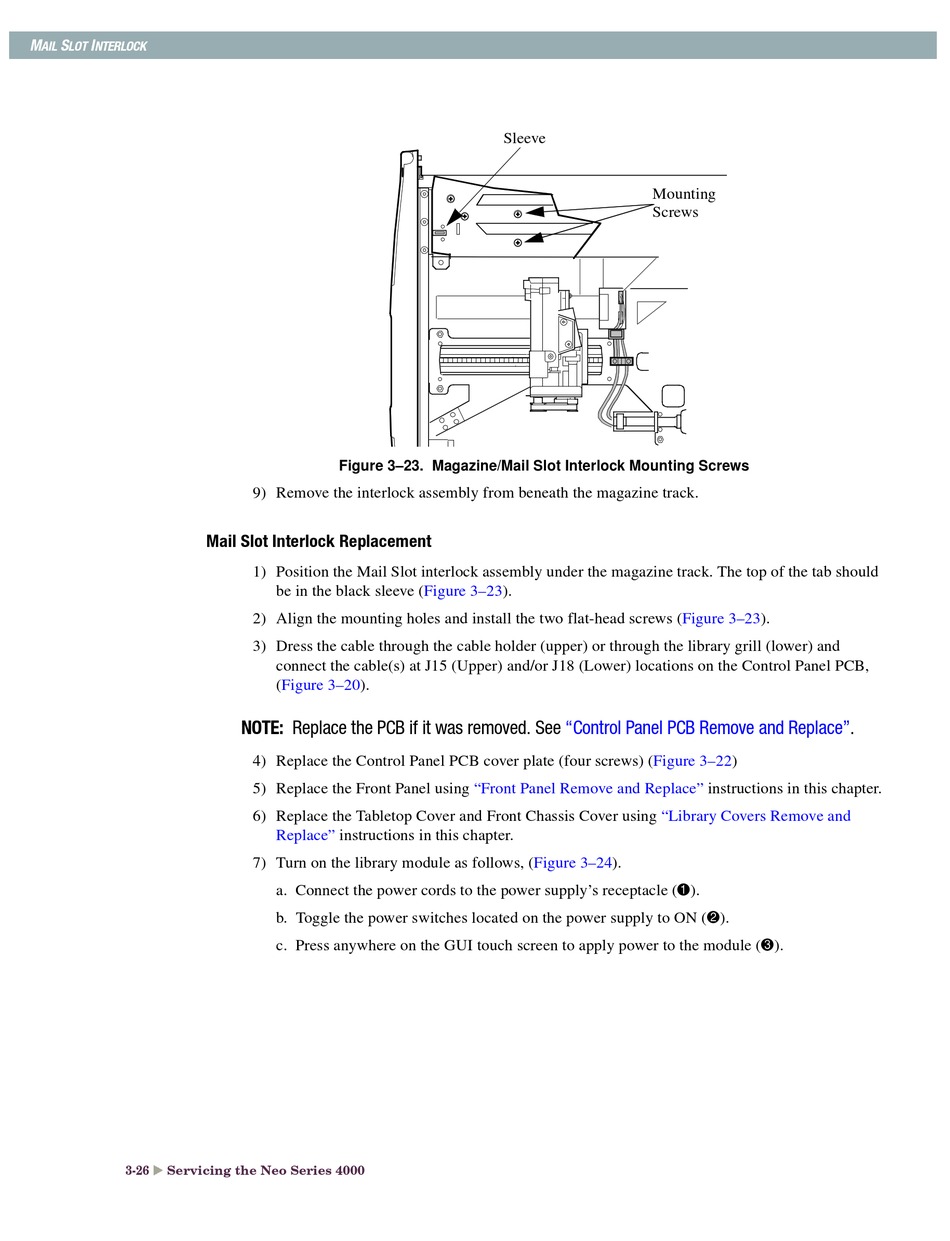

Figure 3–23. Magazine/Mail Slot Interlock Mounting Screws
9) Remove the interlock assembly from beneath the magazine track.
1) Position the Mail Slot interlock assembly under the magazine track. The top of the tab should
be in the black sleeve (Figure
2) Align the mounting holes and install the two flat-head screws
3) Dress the cable through the cable holder (upper) or through the library grill (lower) and
connect the cable(s) at J15 (Upper) and/or J18 (Lower) locations on the Control Panel PCB,
(Figure 3–20).
NOTE: Replace the PCB if it was removed. See
4) Replace the Control Panel PCB cover plate (four screws)
5) Replace the Front Panel using
6) Replace the Tabletop Cover and Front Chassis Cover using
Replace" instructions in this chapter.
7) Turn on the library module as follows,
a. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
Sleeve
3–23).
"Control Panel PCB Remove and
(Figure
"Front Panel Remove and Replace"
(Figure 3–24).
Mounting
Screws
(Figure 3–23).
Replace".
3–22)
instructions in this chapter.
"Library Covers Remove and
