Figure 3-54 Scsi I/O Board Removal; Figure 3-55 Scsi I/O Board Removal - Overland Storage Neo Series Library Service Manual

H D SCSI I/O B
IGH ENSITY OARDS AND
3-60 Servicing the Neo Series 4000
u
SCSI C P A
ONNECTOR LATE SSEMBLIES
11) Remove the cables at J3 and J4
12) Remove four screws that mount the SCSI Connector Plate Assembly to the SCSI I/O PCB,
(Figure 3–55).
13) Disconnect the SCSI Connector Plate Assembly from the High Density SCSI I/O Board.

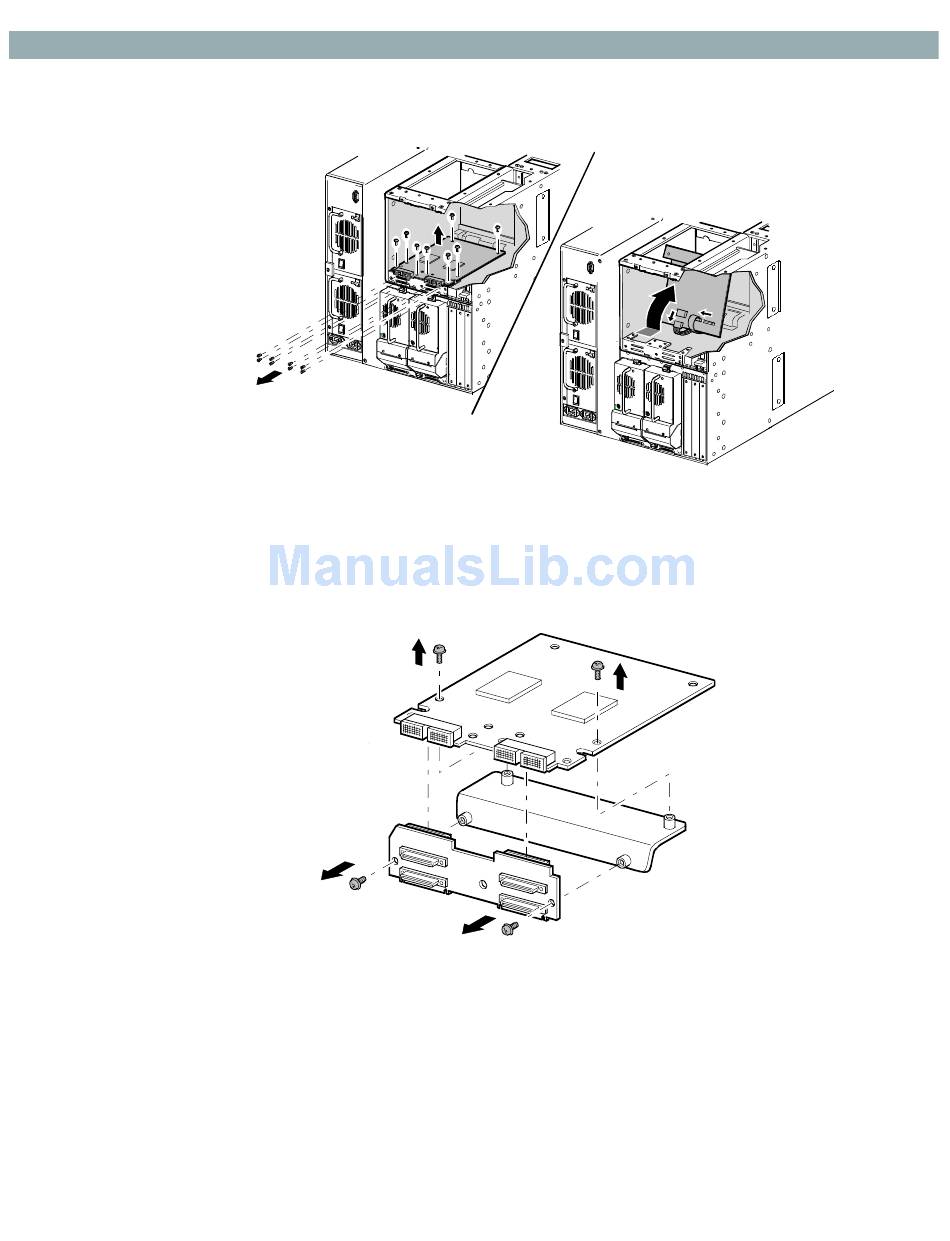

Figure 3–54. SCSI I/O Board Removal
(Figure 3–54). Remove the PCB from the library.
Figure 3–55. SCSI I/O Board Removal
Neo-9058a
Neo-9059
