5) With the card cage still loose, replace the cables at J12, J2, J5, J8, J9, J4, J7, J11, J3 and J6.
See
Figure
2–42.
NOTE: For ease of installation, replace the cables moving from left to right and bottom to top of
the back plane assembly.
6) From inside the drive bay, replace the two flat-head screws at the top of the card cage. See
Figure
2–42.
7) From outside the chassis, replace the two flat-head screws at the top of the card cage and the
two flat-head through-bolts at the bottom of the card cage. See
8) Replace the 1 screw from the backplane board stiffener.
9) Replace the Drive 1 drive guide using
this chapter.
10) Replace the Card Cage/Back Plane Connector Access Plate and mounting screw. See
Figure
2–39.
11) Replace the tabletop cover and Fan Cover Assembly using
Replace"
instructions in this chapter.
12) Replace the Drive 1 Shoe Assembly using
instructions in this chapter.
13) Replace the Library Controller Card using
instructions in this chapter.
14) Replace the FCO Card, if installed, using
instructions in this chapter.
15) Turn on the library module as follows, see
1
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
"Drive Guides Remove and Replace"
"Drive Shoe Assembly Remove and Replace"
"Library Controller Card Remove and Replace"
"Fibre Channel Option Card Remove and Replace"
Figure
2
3

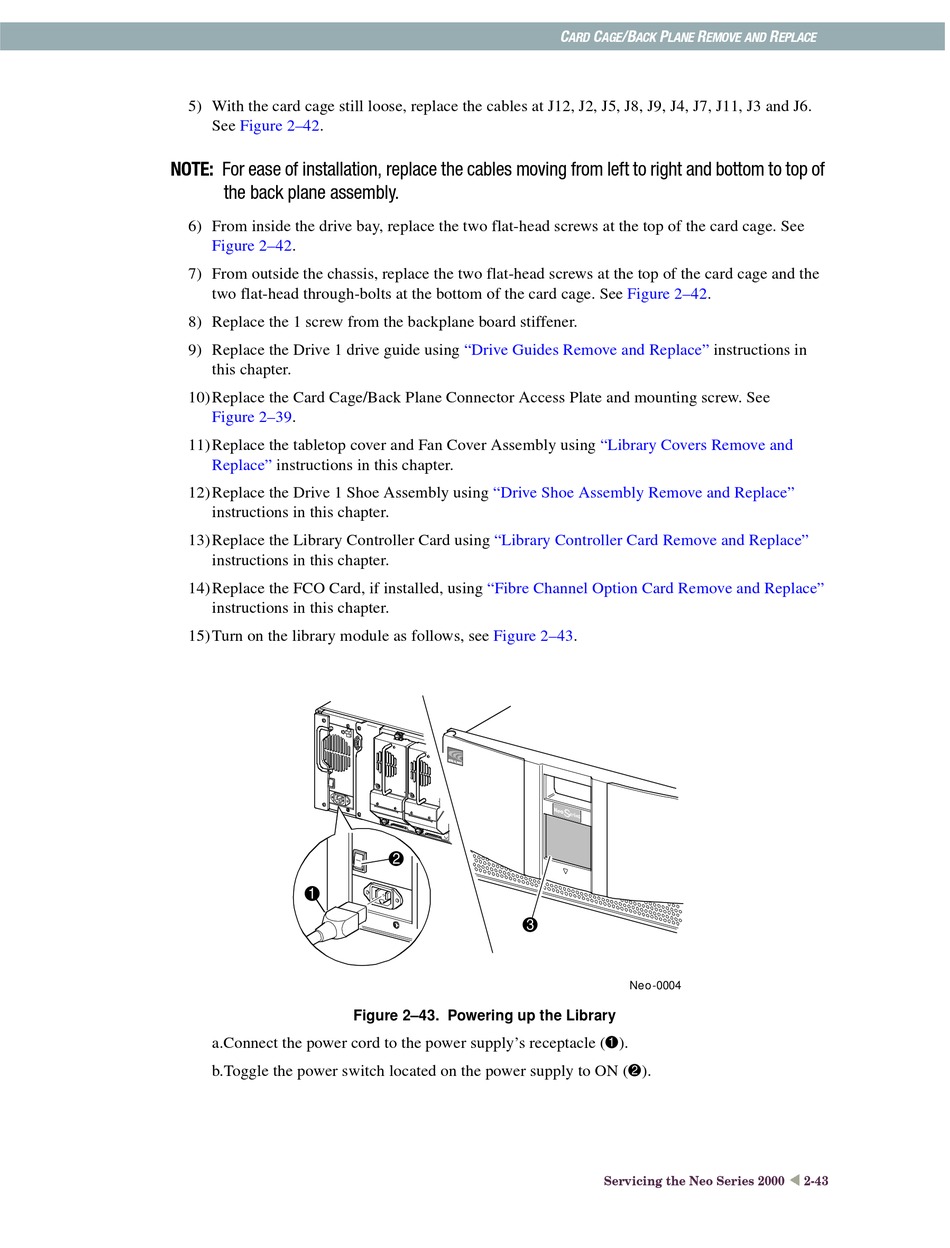

Figure 2–43. Powering up the Library
C
C
/B
P
R
ARD
AGE
ACK
LANE
EMOVE AND
Figure
2–42.
instructions in
"Library Covers Remove and
2–43.
Neo-0004
Servicing the Neo Series 2000
R
EPLACE
2-43
