N S 2000 C
EO ERIES ONNECTORS

Control Panel Board

6-2 Connectors, Switches and Indicators
u
9
1
2
3

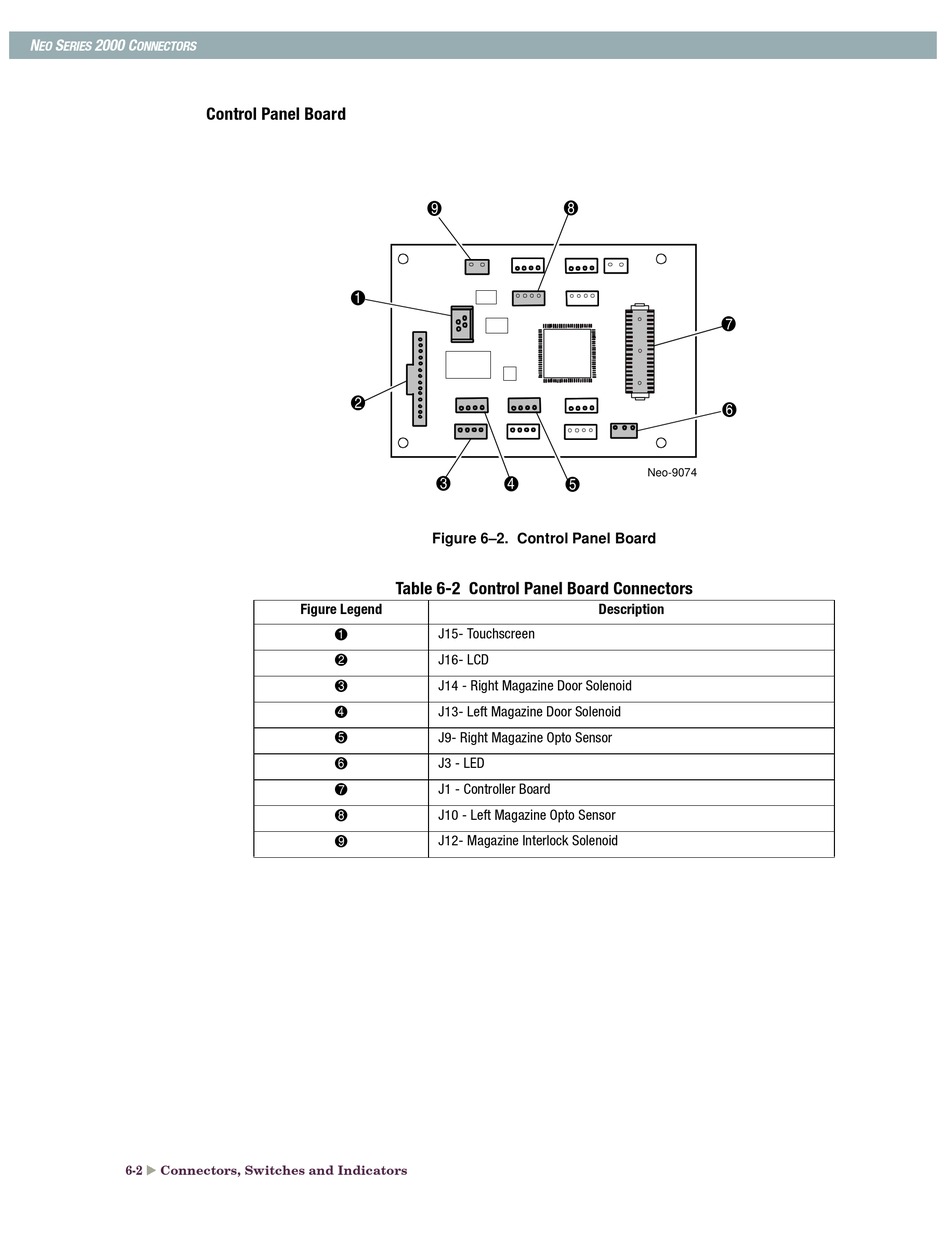

Figure 6–2. Control Panel Board

Table 6-2 Control Panel Board Connectors

Figure Legend
1 J15- Touchscreen
2 J16- LCD
3 J14 - Right Magazine Door Solenoid
4 J13- Left Magazine Door Solenoid
5
J9- Right Magazine Opto Sensor
6
J3 - LED
7
J1 - Controller Board
8
J10 - Left Magazine Opto Sensor
9
J12- Magazine Interlock Solenoid
8
Neo-9074
4 5
Description
7
6
