Drive Guides Replacement; Figure 3-61 Applying Power - Overland Storage Neo Series Library Service Manual

D G R R
RIVE UIDE EMOVE AND EPLACE

Drive Guides Replacement

3-66 Servicing the Neo Series 4000
u
1) Position the Drive Guide in the drive bay with the two straight-sided holes to the rear of the
library, see Figure 3–60.
2) Replace the four flat-head screws that mount the drive guide in the chassis.
3) Replace the Table Top Cover and Fan Cover Assembly using
Replace" instructions in this chapter.
4) Replace the applicable Drive Shoe Assembly using
Replace" instructions in this chapter.
5) Turn on the library module as follows, see
a. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
2
1
"Drive Shoe Assembly Remove and
Figure 3–61.

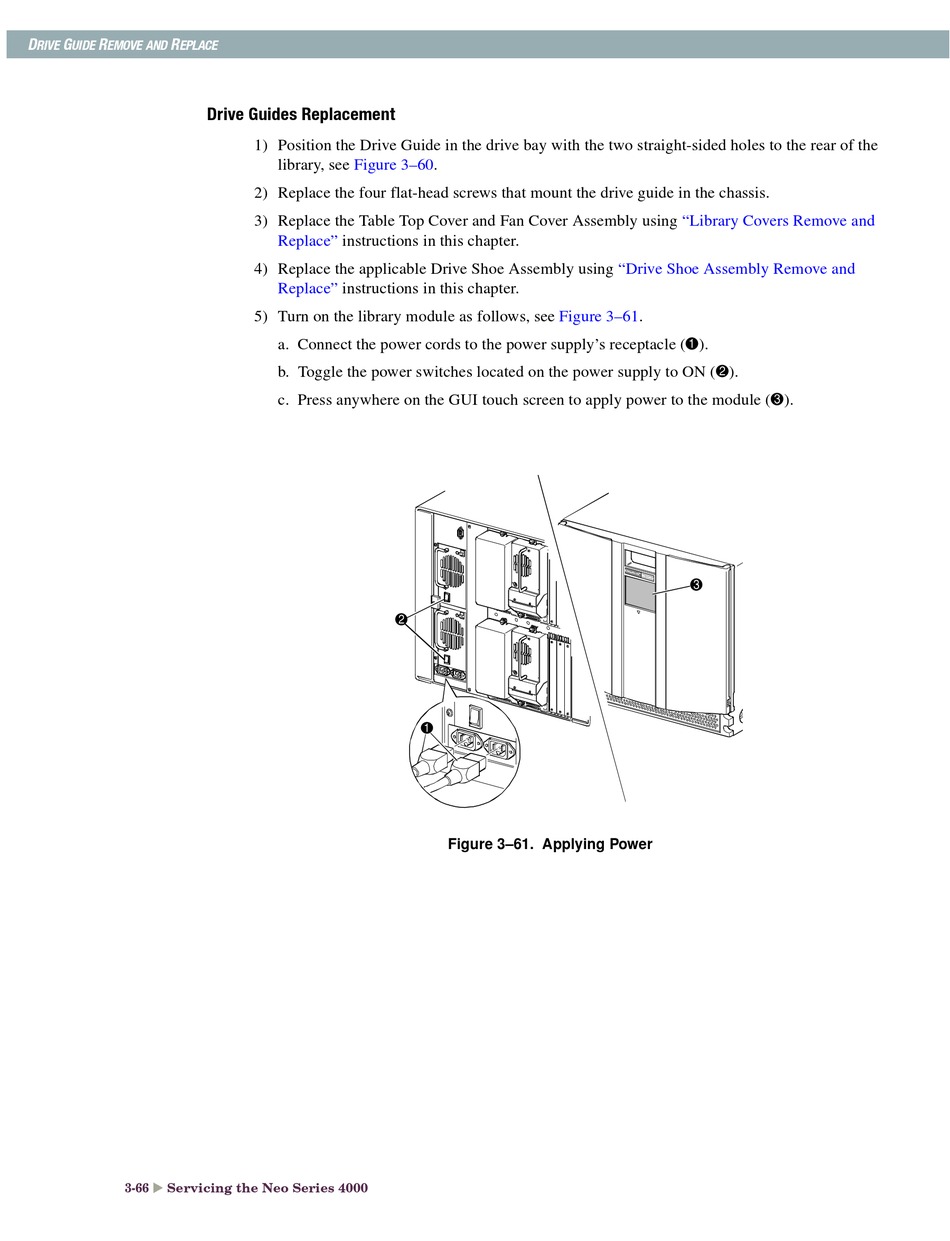

Figure 3–61. Applying Power
"Library Covers Remove and
3
