3) Replace the cable at J5 on the Shuttle Assembly PCB.
4) Replace the cable clamp at the lower front of the Bar Code Reader with the flat side down
5) Replace the outer skin and front panel cover using
instructions in this chapter.
6) Turn on the library module as follows, see
1
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
Figure
2
3

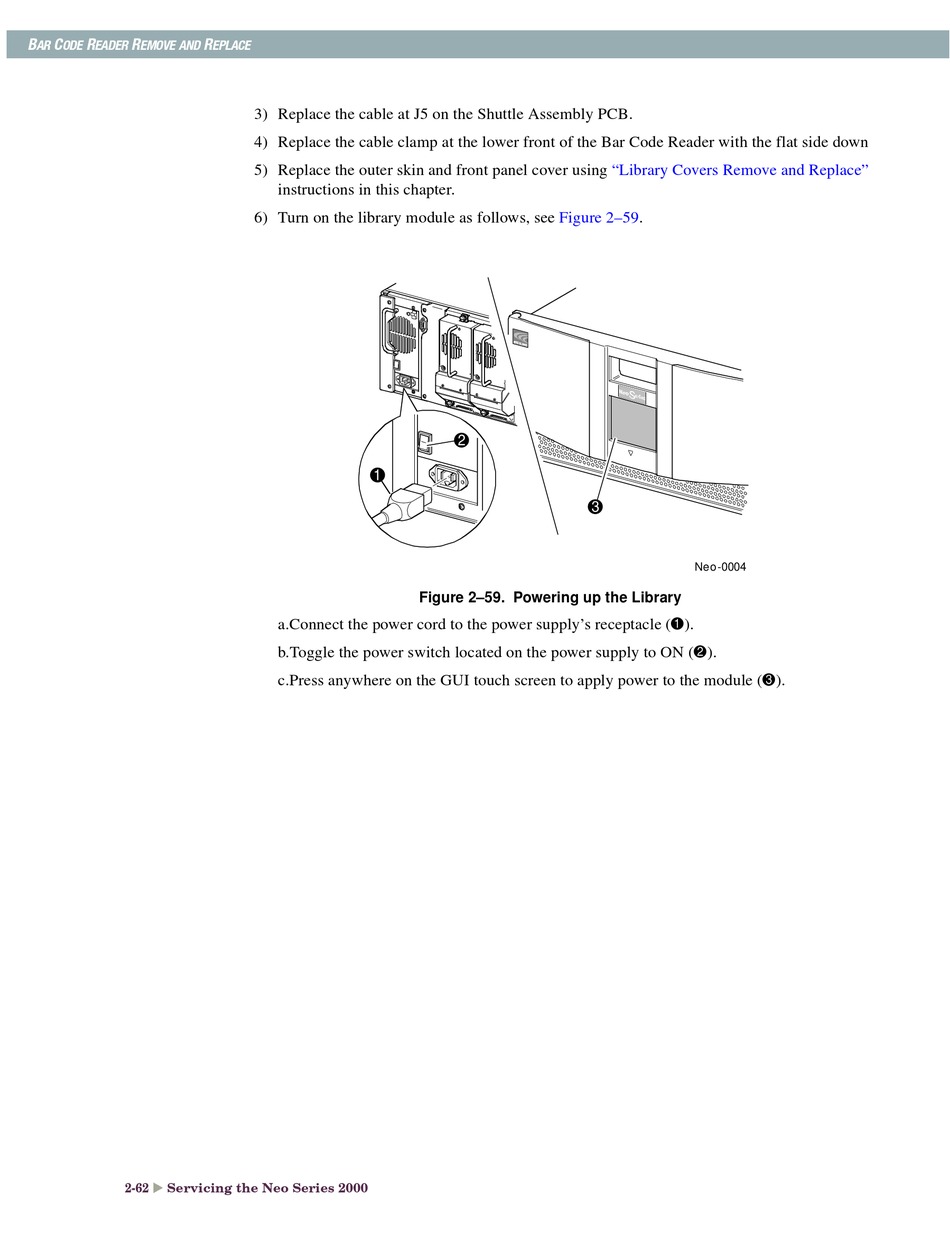

Figure 2–59. Powering up the Library
"Library Covers Remove and Replace"
2–59.
Neo-0004
