Replacing The Controller Board; Figure 3-89 Vertical Controller Board Removed - Overland Storage Neo Series Library Service Manual

V A PCB R
ERTICAL XIS EMOVE AND

Replacing the Controller Board

3-92 Servicing the Neo Series 4000
u
R
EPLACE
1) Replace the four mounting screws that secure the board to the library chassis

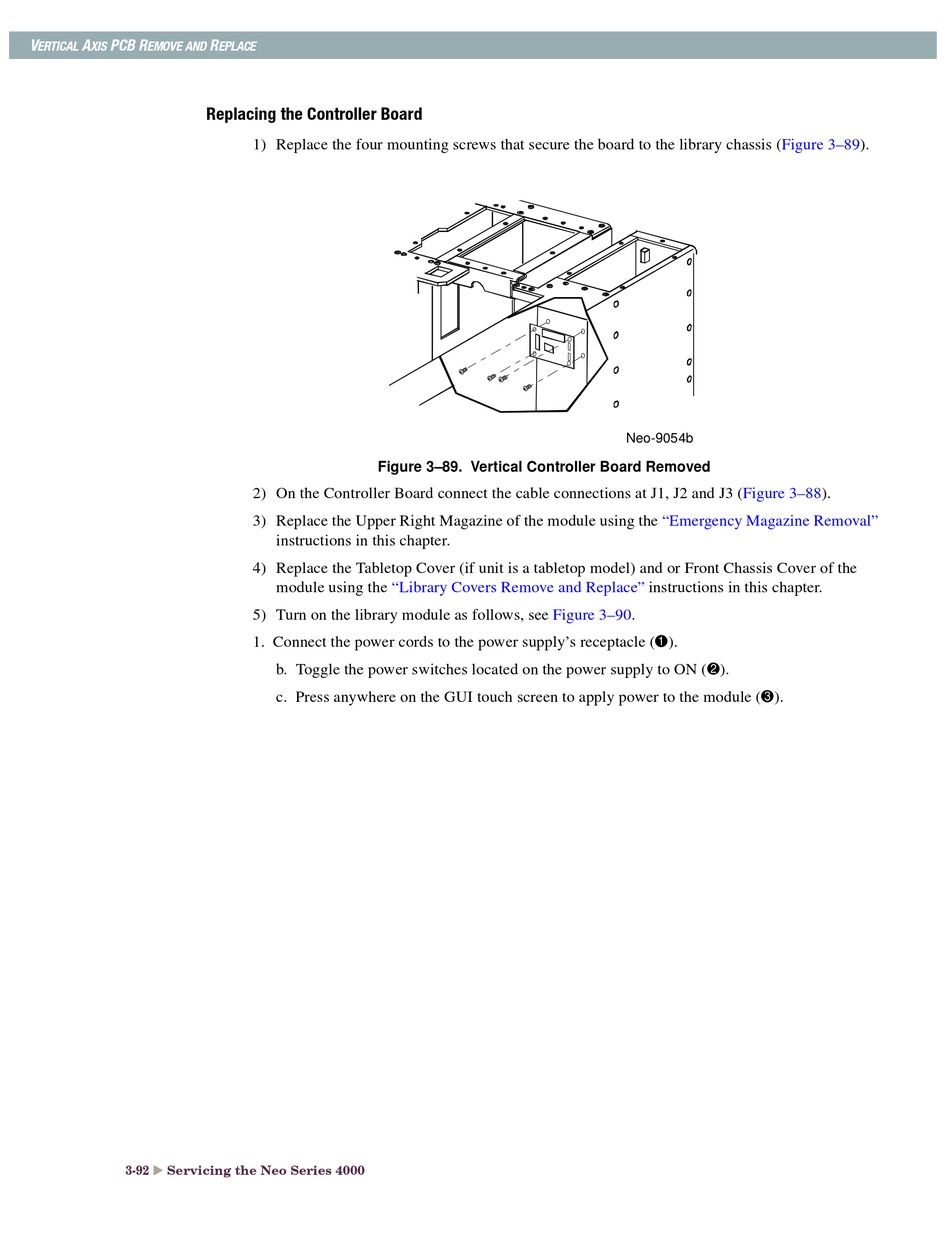

Figure 3–89. Vertical Controller Board Removed
2) On the Controller Board connect the cable connections at J1, J2 and J3
3) Replace the Upper Right Magazine of the module using the
instructions in this chapter.
4) Replace the Tabletop Cover (if unit is a tabletop model) and or Front Chassis Cover of the
module using the
5) Turn on the library module as follows, see
1. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
"Library Covers Remove and Replace"
Figure
(Figure
Neo-9054b
(Figure
"Emergency Magazine Removal"
instructions in this chapter.
3–90.
3–89).
3–88).
