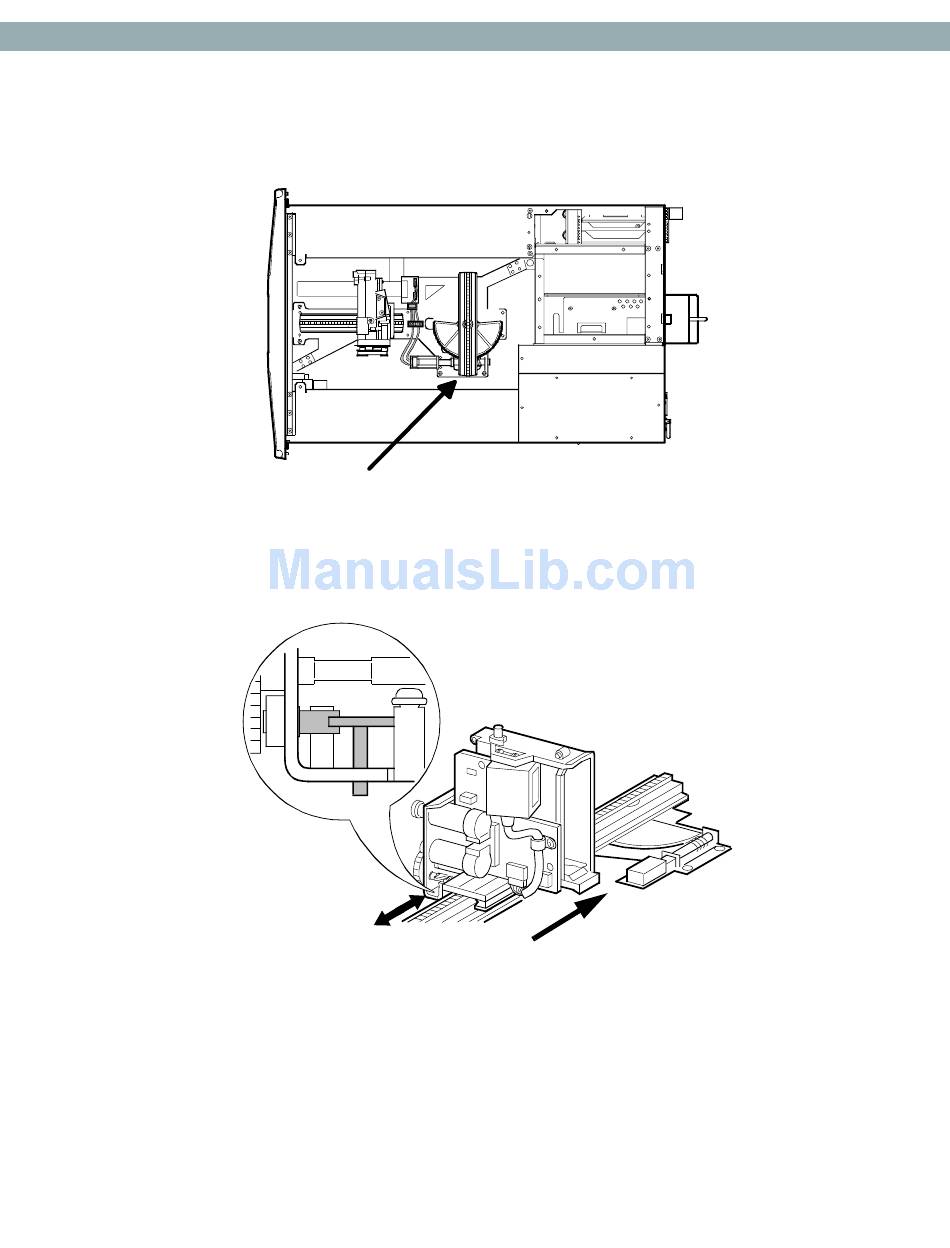

10) Manually rotate the robot track by turning the motor/track coupler approximately 90 degrees
to allow for removal of the Robot Shuttle.
11) Depress Shuttle brake lever on the bottom of the shuttle and remove the Robot Shuttle from
the track.
Figure 3–75. Shuttle Brake Release
12) Remove the Rotating Track Motor Power Cable from the Robotics base PCB.
13) Remove the four screws that secure the rear Vertical Axis Screw Rail from the robotics base,
(Figure
3–76).
14) Remove the Screw Rail Clamp and retain.
S
HUTTLE
Figure 3–74. Rotate Track 90 Deg
.
A
R
R
SSEMBLY
OBOTICS
EMOVE AND
Neo-7001a
Neo-9038
Servicing the Neo Series 4000
R
EPLACE
3-79
