Drive Shoe Assembly Replacement

1) Fully support the Drive Shoe Assembly while starting to slide it into the receiver. Be careful
not to force the drive load handle (DLT8000 only),
2) Push the Drive Shoe Assembly slowly into the receiver until it seats against the back of the
library.
WARNING: When inserting the Drive shoe Assembly into the chassis, push evenly on both the handle
and the SCSI board connector (bottom portion of the assembly) until it is seated. Damage to the
connector pins and drive communication errors may occur if this procedure is not followed.
3) Tighten the two captive retainer screws to secure the module to the library.
4) If the removal and replacement was done with the library operational, reactivate the drive by
selecting Menu > Maintenance > Replace Drive > Reactivate Drive n. If the power was off
during the procedure, power on the library. The drive will be reactivated during the power on
initialization of the library.

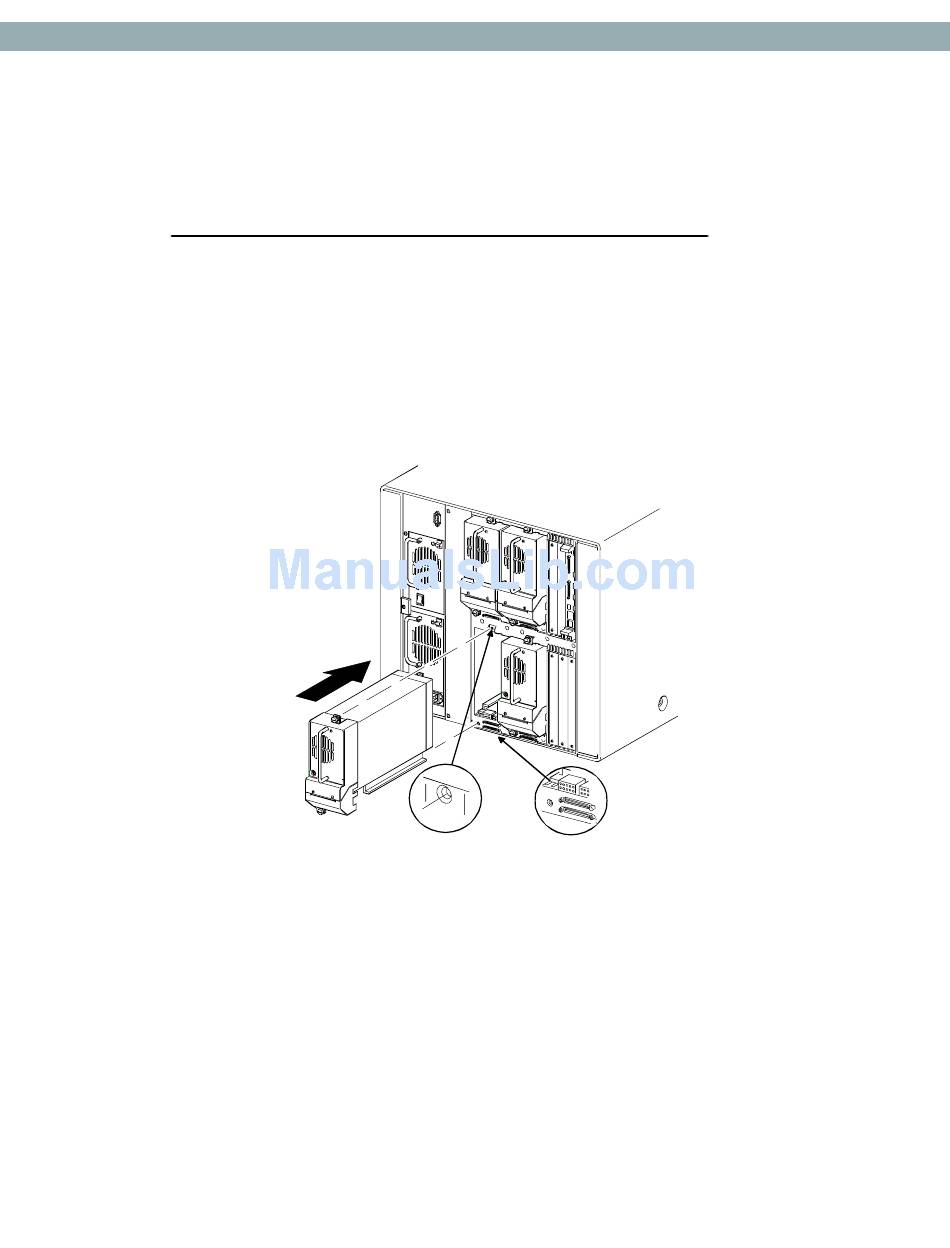

Figure 3–18. Installing a Tape Drive
D S A R
RIVE HOE SSEMBLY EMOVE AND
(Figure 3–18).
Neo-9141a
Servicing the Neo Series 4000
R
EPLACE
3-21
