Replacing the Robot Shuttle and Base

3-80 Servicing the Neo Series 4000
u
R
EPLACE
15) Manually rotate the pulley at the top of the rear Vertical Axis Motor Screw rail clockwise and
raise the shuttle base approximately 1/2 inch, then gently press the base plate down adjacent to
the Screw Rail nut to release it from the alignment pins,
16) Swing the rear Vertical Axis Screw Rail foot counter-clockwise to the rear of the unit. The
alignment pins on the robotics base should be visible.
17) Remove the four screws that secure the front Vertical Axis Screw Rail from the robotics base.
18) Manually rotate the flex coupling at the top of the front Vertical Axis Screw Rail at the Z Axis
Motor coupler clockwise and raise the foot of the Screw Rail to relieve pressure on the
robotics base.
19) Swing the front Vertical Axis Screw Rail foot clockwise to the front of the unit. There are no
alignment pins.
20) Carefully lift the robotics base from the chassis

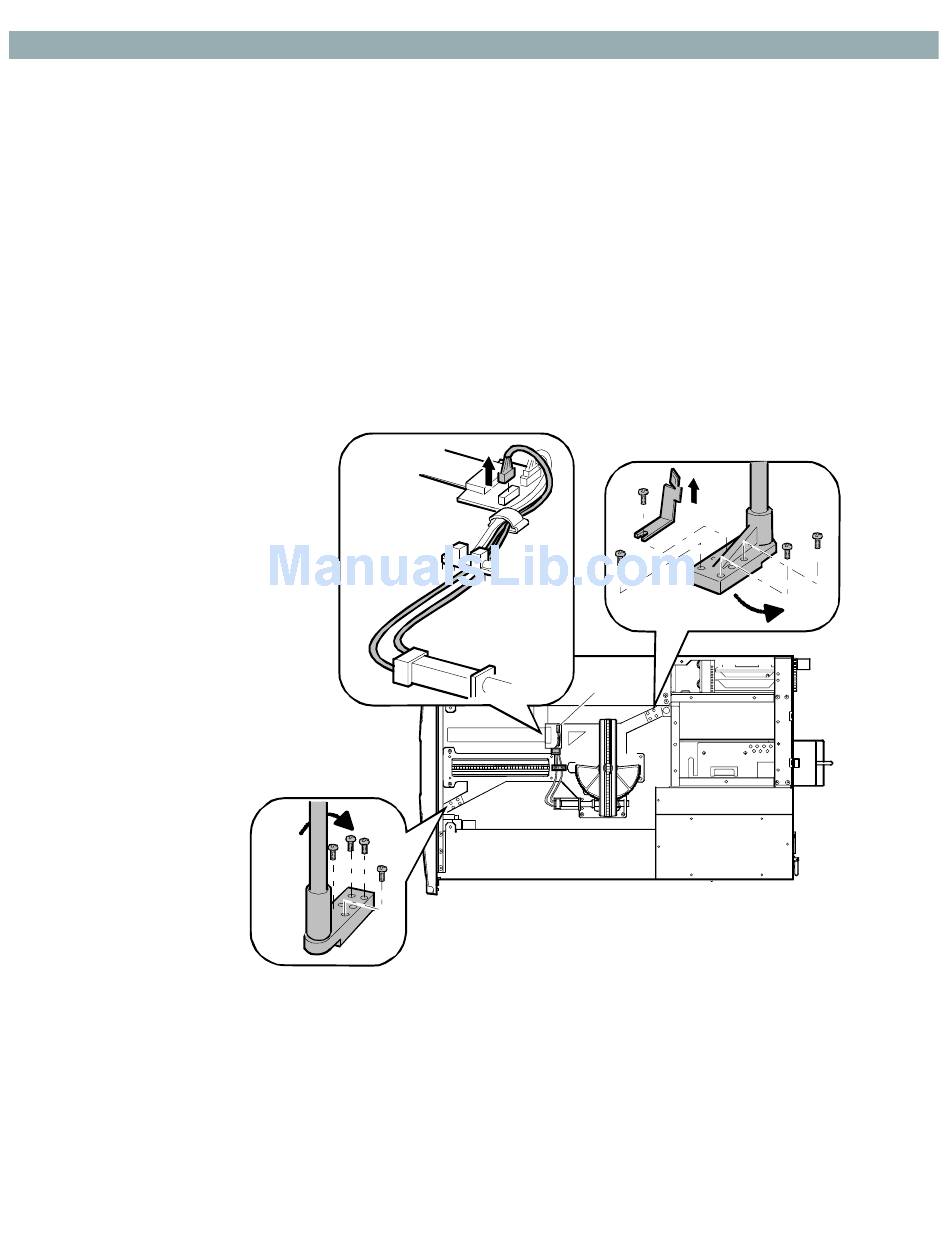

Figure 3–76. Removing Robotics Base
1) Carefully place the robotics base into the chassis, (see
(Figure 3–76).
(Figure 3–76).
J3
Figure 3–76)
