F V A A R R
RONT ERTICAL XIS SSEMBLY EMOVE AND EPLACE
Neo-7002

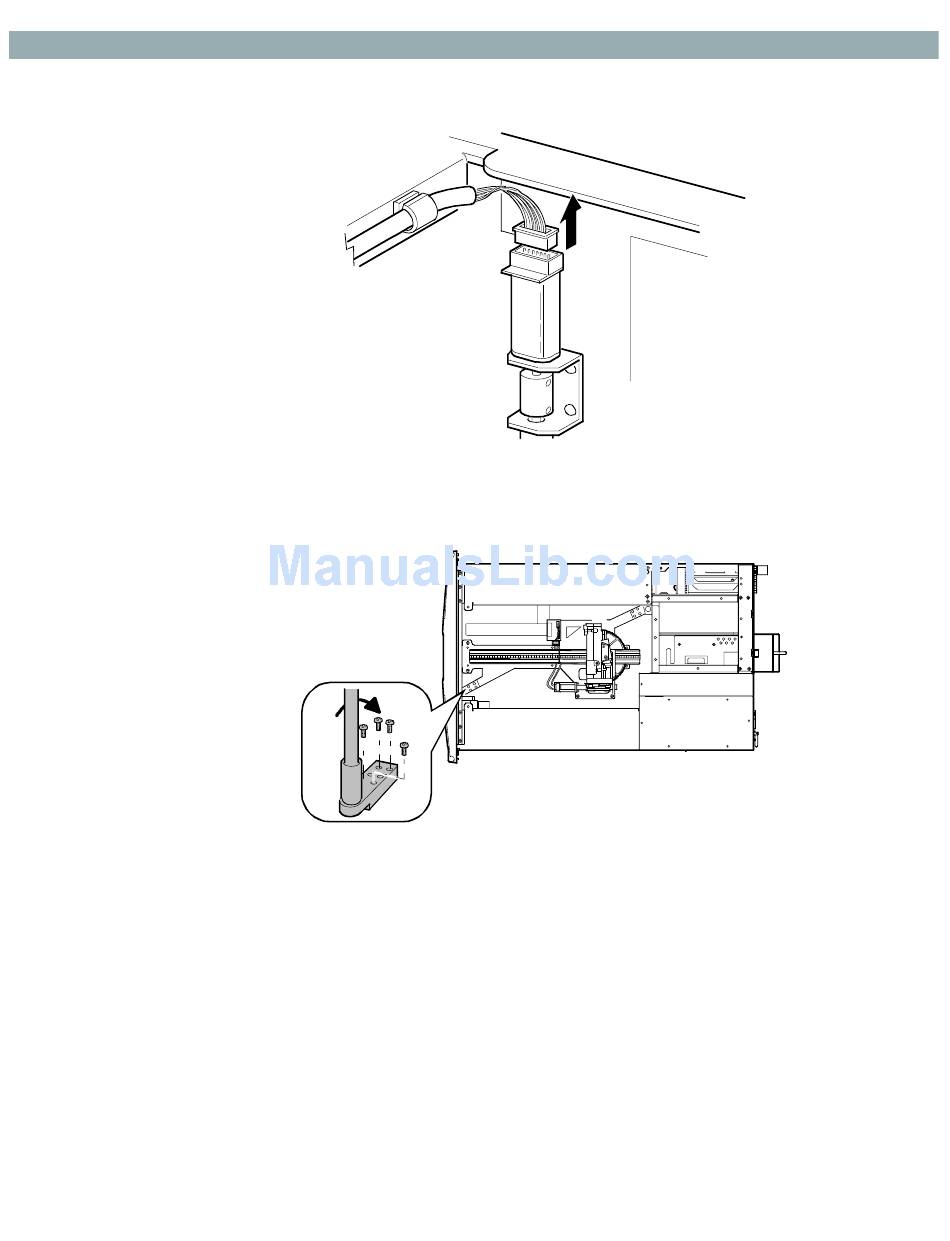

Figure 3–82. Front Vertical Axis Motor Cable
7) Remove the four screws that secure the Front Vertical Axis Assembly to the robotics base.
Neo-7001b
Figure 3–83. Front Vertical Axis Screws
8) Manually rotate clockwise the front Screw Rail at the Front Flex Shaft Coupling and raise the
foot of the Screw Rail to relieve pressure on the robotics base.
9) Swing the front Screw Rail foot clockwise to the front of the unit (no alignment pins).
10) Remove the assembly from the chassis
3-86 Servicing the Neo Series 4000
