Add-on/Spare Library Controller Instructions
This document describes how to remove and replace a library
controller in a NEO S-Series library from Overland Storage.
WARNING:
eTo reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the unit.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
Prepare the Unit
Power Off the Library
1. Verify that all host processes are idle.
2. Power off the library by depressing the power button on
the front panel.
Disconnect Cables
1. From the module containing the failed controller, unplug
the AC power cables.
2. Remove the Ethernet cables and the USB device from
the library controller to be replaced.

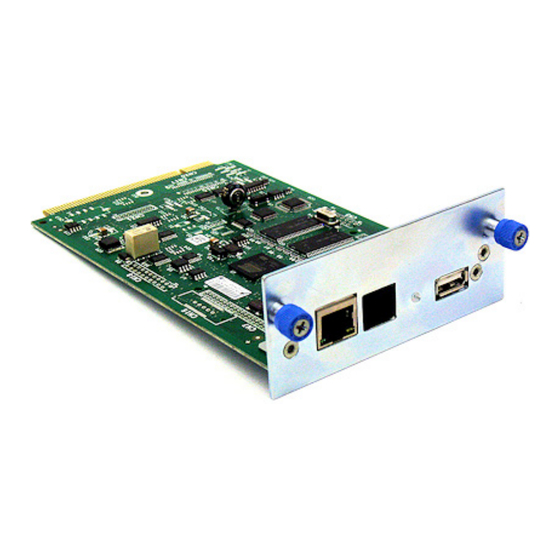

Install/Replace Library Controller
Remove the Library Controller
1. Loosen the two blue captive thumbscrews on the
controller.
2. Using the thumbscrews, slowly remove the controller
from the library.
3. Retain the old controller for return to Overland.
10400650-001
©2015 Overland Storage, Inc.
NEO
S-Series Libraries
®
Page 1 of 3
