Lower Card Cage Fan Replacement; Figure 3-44 Flex Cable Bracket Removal; Figure 3-45 Lower Card Cage Fan Removal - Overland Storage Neo Series Library Service Manual

C C F R R
ARD AGE AN EMOVE AND EPLACE

Lower Card Cage Fan Replacement

3-46 Servicing the Neo Series 4000
u

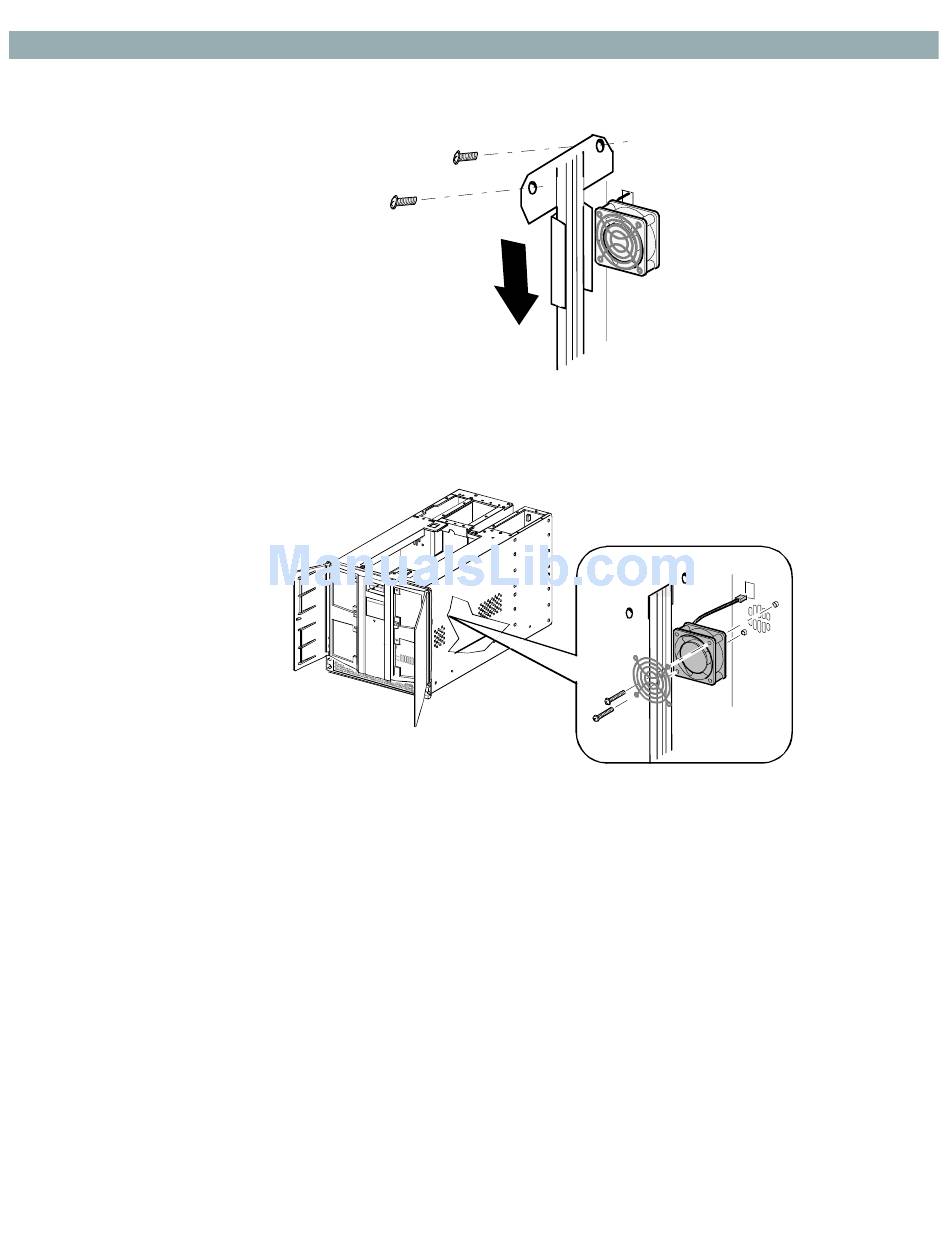

Figure 3–44. Flex Cable Bracket Removal
5) Remove the Card Cage Fan from the library.
Figure 3–45. Lower Card Cage Fan Removal
1) Position the Card Cage Fan inside the left magazine area with the cable at the top left corner.
The airflow direction is from the Card Cage/Back Plane connector area into the main chassis
area (see arrow on the fan frame for airflow direction).
2) Install the fan over the two mounting standoffs while guiding the cable through the cable
access hole into the Card Cage back plane area.
3) Install the two screws that secure the fan to the standoffs.
4) Slide the bracket up the flex cable and align to the mounting holes. Replace the two screws
that secure the Flex Cable Bracket
5) Connect the cable at connector J11 on the Card Cage/Back Plane PCB, see
Neo-9055c
(Figure 3–44). Ensure the flex cable is within the bracket.
Neo-9055b
Figure 3–43.
