Card Cage/Back Plane Replacement

2-42 Servicing the Neo Series 2000
u
R
EPLACE

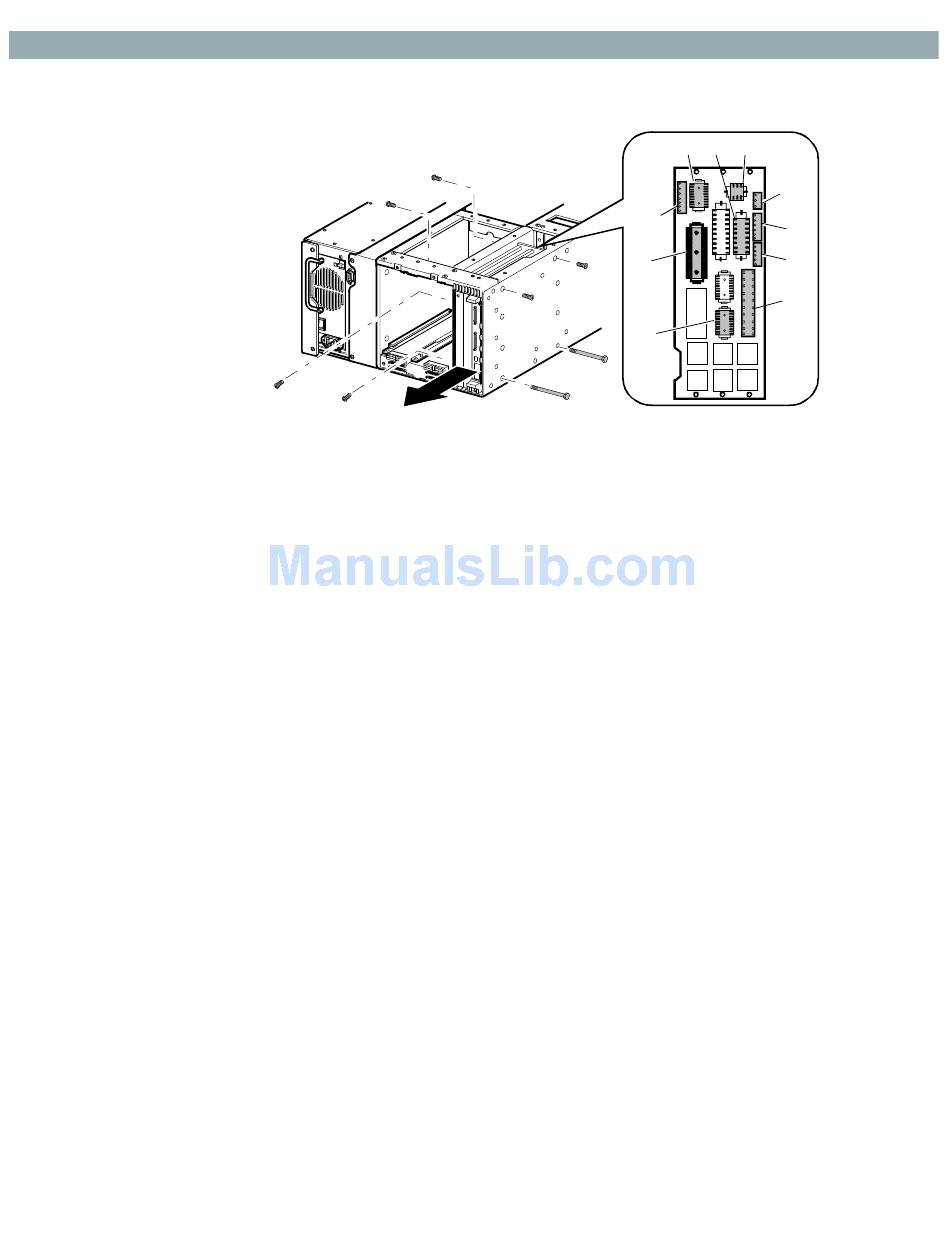

Figure 2–42. Card Cage Back Plane Assembly Removal
11) From inside the drive bay, remove two flat-head screws at the top of the card cage.
12) Remove the 1 screw from the backplane board stiffener.
13) With the card cage loose and working from inside the drive bay access and the top, remove the
cables from J6, J3, J11, J7, J4, J8, J9, J5, J2 and J12.
14) Slide the card cage halfway out.
15) From inside the card cage, support the grounding strip plate and spacer and remove the two
flat-head mounting screws from inside the drive bay. Remove the grounding strip plate and
spacer, see Figure 2–42.
16) Slide the card cage the rest of the way out of the library.
1) Position the card cage at the rear of the library with connectors J6/J3 at the top and towards
the front of the library.
2) Slide the Card Cage/Back Plane assembly about halfway into the opening. See
3) From inside the card cage, position the grounding strip plate with the spacer between it and
the drive bay wall. The grounding strip contacts should be on the card cage side and towards
the rear of the library. From inside the drive bay, replace the two flat-head mounting screws.
See Figure 2–42.
4) Slide the card cage the rest of the way in.
NOTE: Lift the cables toward the top of the unit so as not to trap any cables beneath the card
cage.
J3
J6 J7
J11
J12
J8
J2 J5
J4
J9
Neo-9057
Figure 2–42.
