Figure 2-39 Card Cage Backplane Connector Access Plate Removal; Figure 2-40 Card Cage Fan Removal - Overland Storage Neo Series Library Service Manual

C C F R R
ARD AGE AN EMOVE AND EPLACE
Neo-9054

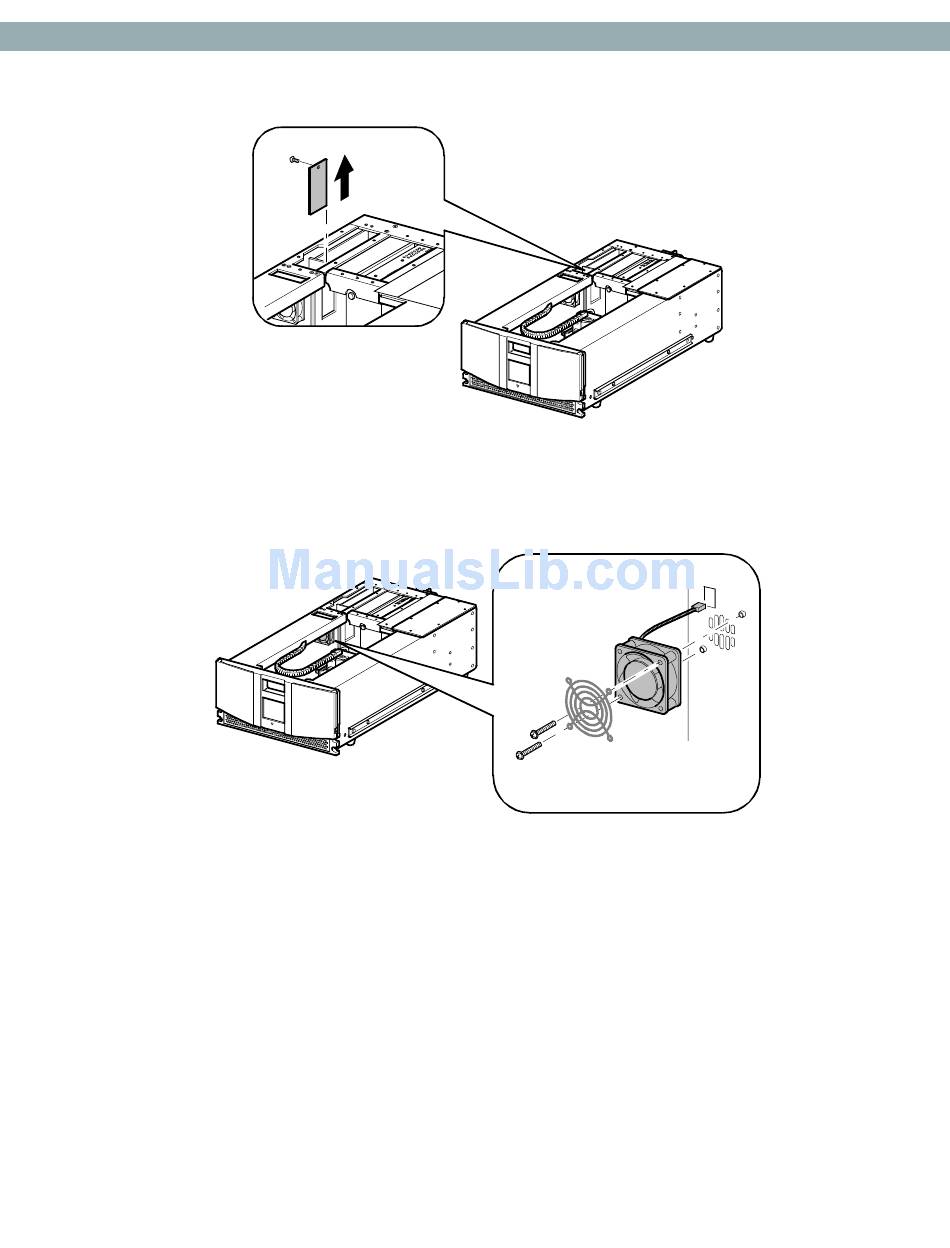

Figure 2–39. Card Cage Backplane Connector Access Plate Removal
3) Remove the two screws that secure the fan shroud and fan to the studs.
Neo-9055
Figure 2–40. Card Cage Fan Removal
4) Pull the fan straight off of the studs while guiding the fan cable out through the cable access
hole, see Figure 2–40.
5) Remove the Card Cage Fan from the library.
Servicing the Neo Series 2000 2-39
