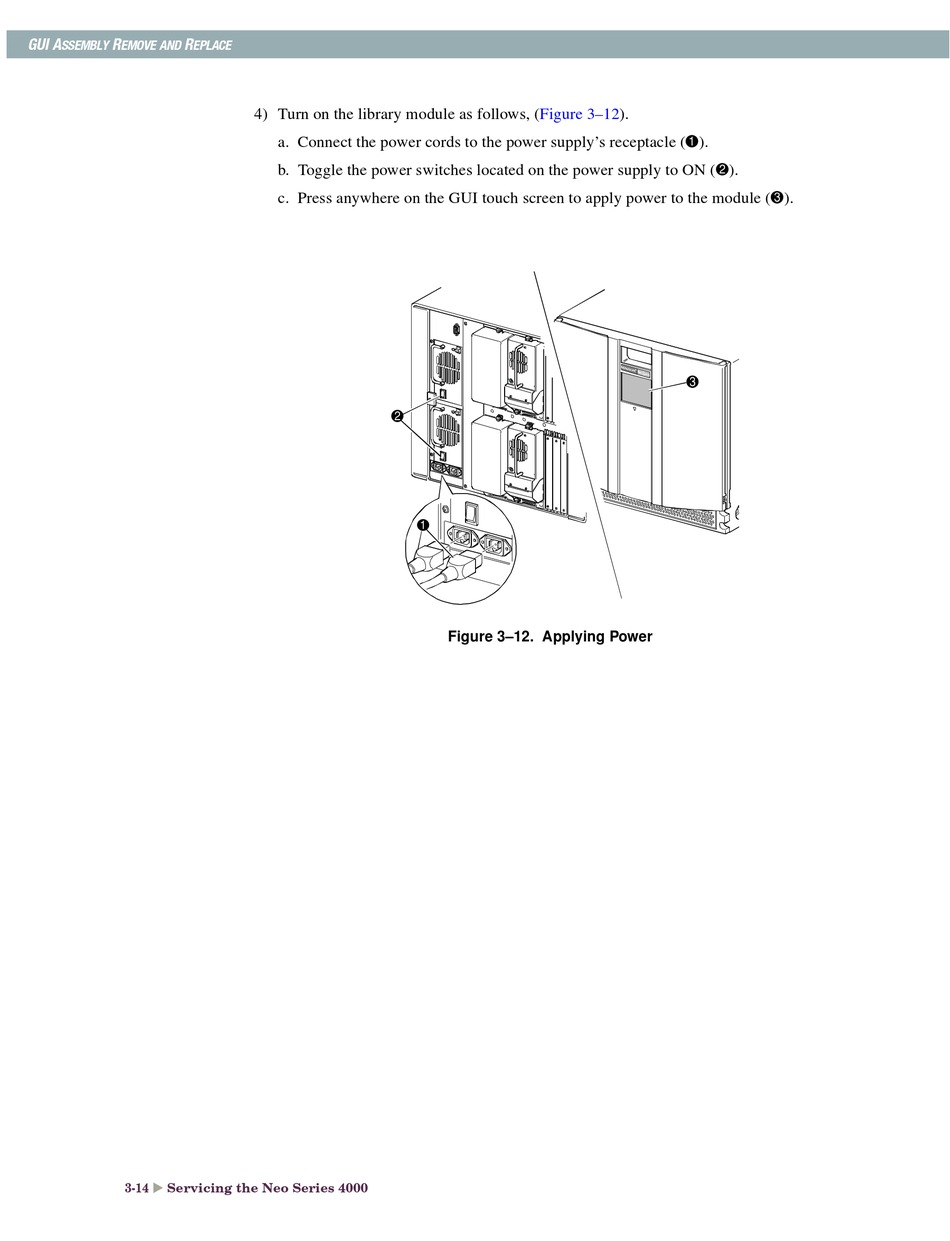

Figure 3-12 Applying Power - Overland Storage Neo Series Library Service Manual

GUI A R R
SSEMBLY EMOVE AND EPLACE
4) Turn on the library module as follows, (Figure 3–12).
a. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
3
2
1
Figure 3–12. Applying Power
3-14 Servicing the Neo Series 4000
