Front Chassis Cover Replacement

1) Carefully slide the Front Chassis cover toward the back of the library and engage the two rear
tabs and seat the cover in the library chassis, see
2) Replace the two screws that secure the cover to the library chassis.
3) Replace the two screws that secure the cover to the library chassis.

Fan Cover Assembly Removal

1) Remove the 11 screws that secure the cover to the library chassis,
2) Lift the inside edge of the Fan Cover Assembly and disconnect the cooling fan.
3) Lift the cover up and away from the library chassis.

Fan Cover Assembly Replacement

1) Connect the power cable from the fan attached to the Fan Cover Assembly cover to the Y
connector coming from the card cage fan.
2) Lower the cover vertically towards the unit.
3) Ensure that the fan power cables do not bind between the cover and the top of the library
chassis.
4) Seat the cover on the library chassis aligning the screw holes,
5) Replace the 11 screws that secure the cover to the library chassis.

Power Supply Receiver Cover Removal

1) Remove the 6 screws that secure the cover to the library chassis, see
2) Lift the cover up and away from the library chassis.
Figure
.

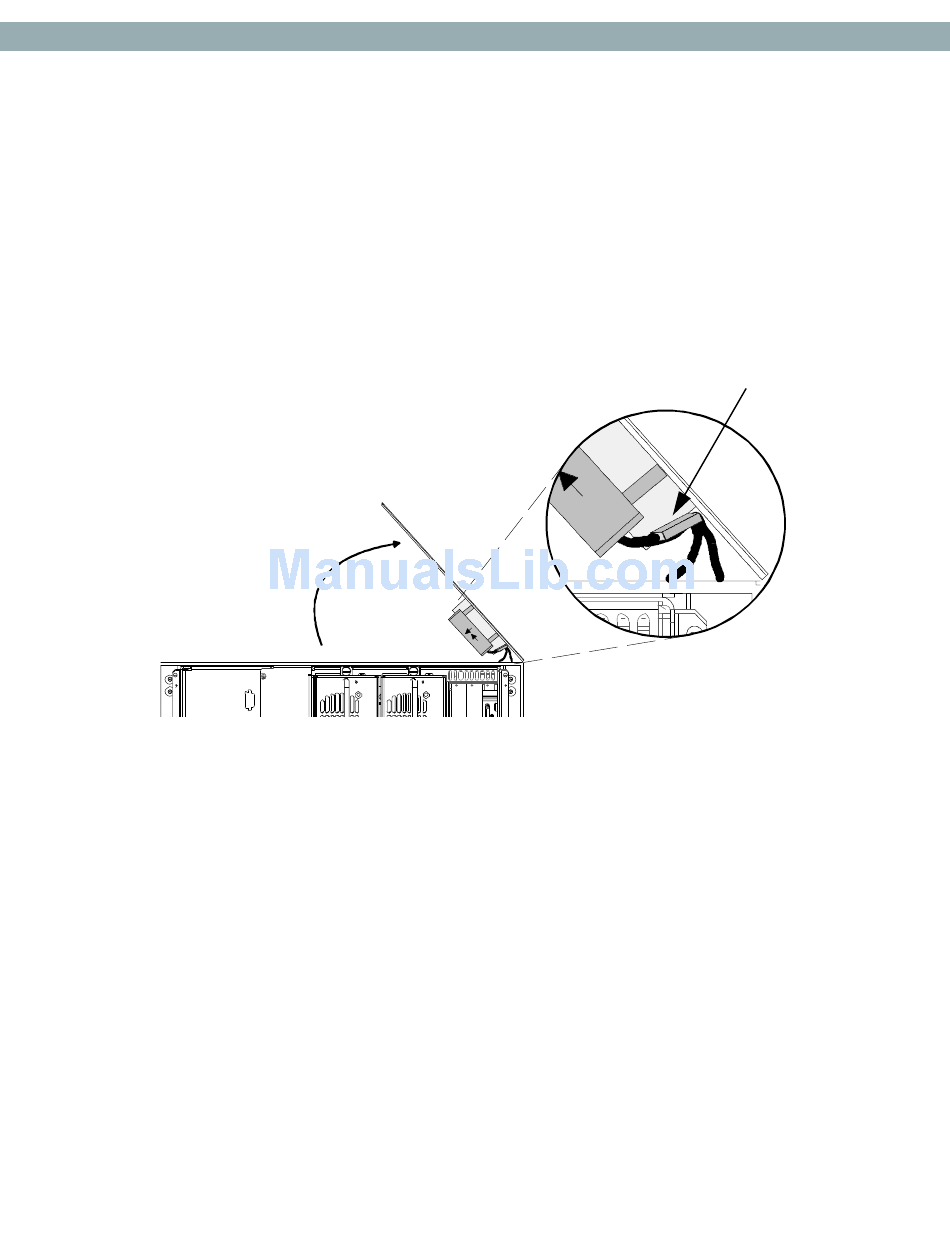

Figure 2–4. Cooling Fan Disconnect
L C R
IBRARY OVERS EMOVE AND
2–5.
(Figure 2–5).
(Figure 2–5).
Figure 2–5.
