Neo Series Router

The Neo Series Router is an 8 or 9 Port, Overland Data Inc. configured device. It is designed as plug and
play when installed in a standard RETMA rack and connected via 10BaseT cables to individual Neo
modules. The router is capable of supporting up to seven Neo Series Library Modules. It is pre-
configured at the Overland factory specifically for use with a Neo Series multi-module library. The router
is physically encased in a rack mountable shelf to be installed in the rack.

Router Installation

C-4
u
1) Verify that power is not applied to the router and the power cord is not connected.
2) Position and hold the router in place at the top rear of the RETMA rack to locate the mounting
holes in the rack rails.
3) Install the four captive fasteners into the RETMA rack rails, see
4) Mount the Router using the four screws (10-32x 1/2 P.H.).
NOTE: Once the Router is installed in the rack do not apply power or connect any cables.
5) In most cases you have received a pre-assembled 10U or 20U Elevator Assembly. If the length
is correct for your system. Proceed to the section
need to add a Elevator extension to your system, proceed to the section
Extension".
MOUNTING HOLES
1 2 3 4
10Base T
CONNECTION
PORTS
POWER
SWITCH
COM PORT
(Factory use only)

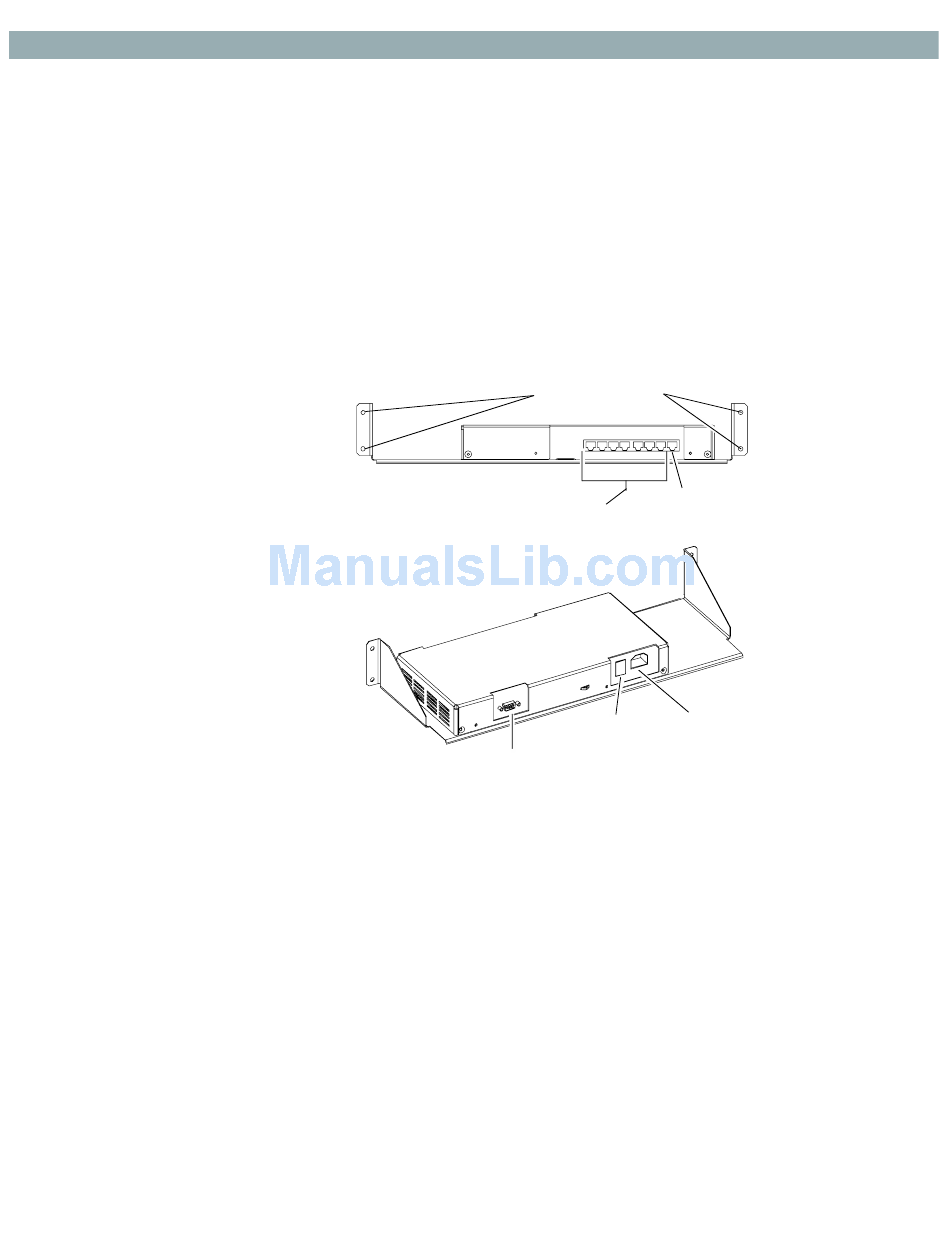

Figure C–2. Typical Router
"Installing the Elevator
7 WAN
5 6
HOST PORT
AC POWER
Figure C–2 and Figure
Assembly". If you
"Elevator Assembly
C–3.
