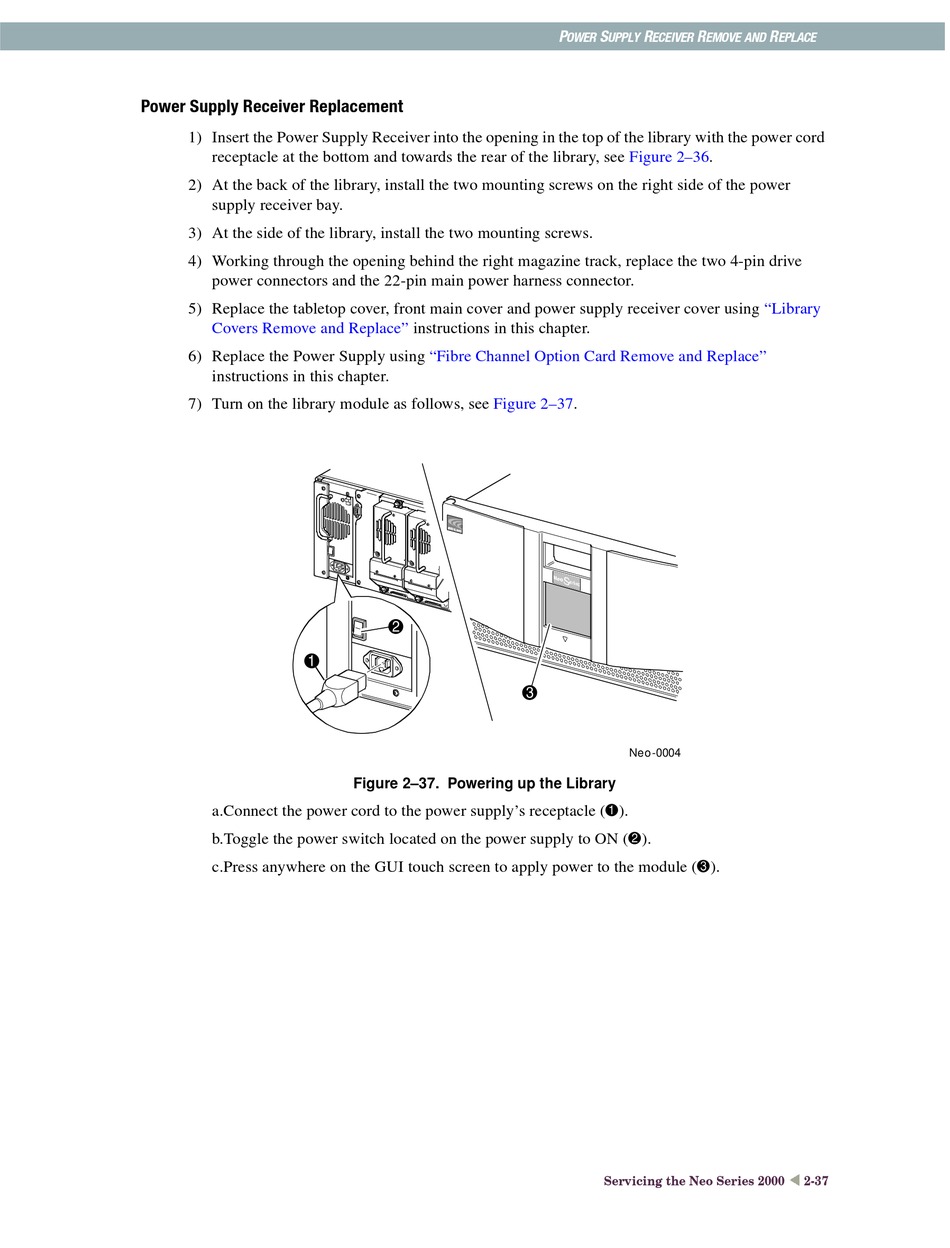

Power Supply Receiver Replacement

1) Insert the Power Supply Receiver into the opening in the top of the library with the power cord
receptacle at the bottom and towards the rear of the library, see
2) At the back of the library, install the two mounting screws on the right side of the power
supply receiver bay.
3) At the side of the library, install the two mounting screws.
4) Working through the opening behind the right magazine track, replace the two 4-pin drive
power connectors and the 22-pin main power harness connector.
5) Replace the tabletop cover, front main cover and power supply receiver cover using
Covers Remove and Replace"
6) Replace the Power Supply using
instructions in this chapter.
7) Turn on the library module as follows, see
1
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
instructions in this chapter.
"Fibre Channel Option Card Remove and Replace"
Figure
2
3
Figure 2–37. Powering up the Library
P S R R
OWER UPPLY ECEIVER EMOVE AND
Figure 2–36.
2–37.
Neo-0004
Servicing the Neo Series 2000
R
EPLACE
"Library
2-37
