Drive Guide Remove and Replace

There is a Drive Guide in the bottom of each of the drive bays. The Drive Shoe Assembly must be
removed to remove the Drive Guide. The steps are the same to remove any of the Drive Guides.

Drive Guides Removal

1) If the library is operational, remove any cartridges in the drives using the front panel controls
or application software. Exit the application software and halt the operating system if
necessary.
2) Power off the library using the Graphical User Interface (GUI) and then switch the Master
Power Switch on the Power Supply at the rear of the module to the off (0) position. remove the
power cord.
3) Remove the Drive Shoe Assembly for the Drive Guide to be replaced using
Assembly Remove and Replace"
4) Remove the Tabletop Cover and Fan Cover Assembly using
Replace" instructions in this chapter.
5) Remove the four flat-head screws that mount the drive guide in the chassis, see
6) Remove the Drive Guide from the library.
instructions in this chapter.

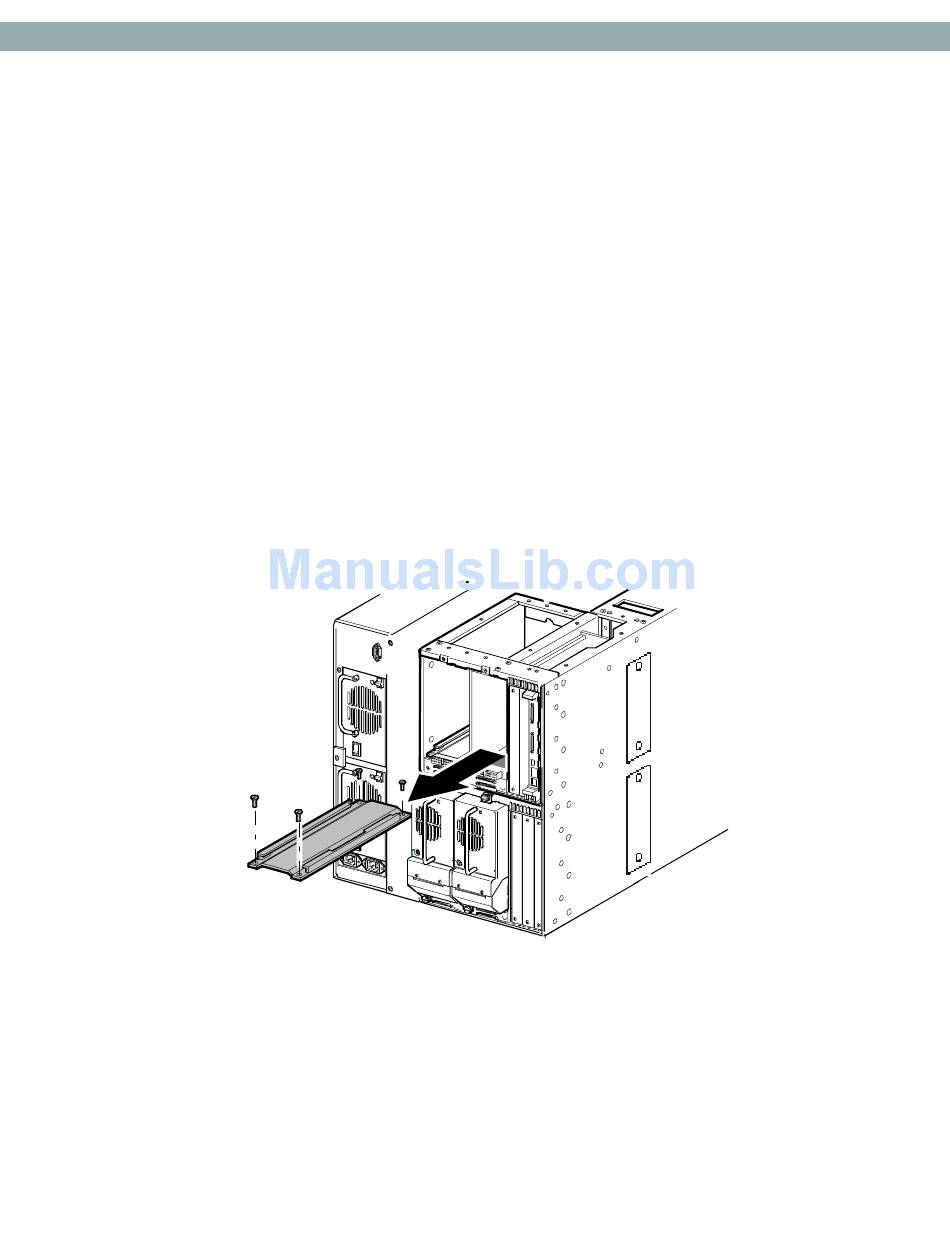

Figure 3–60. Drive Guide Removal
D G R R
RIVE UIDE EMOVE AND EPLACE
"Drive Shoe
"Library Covers Remove and
Figure 3–60.
Neo-9061a
Servicing the Neo Series 4000 3-65
