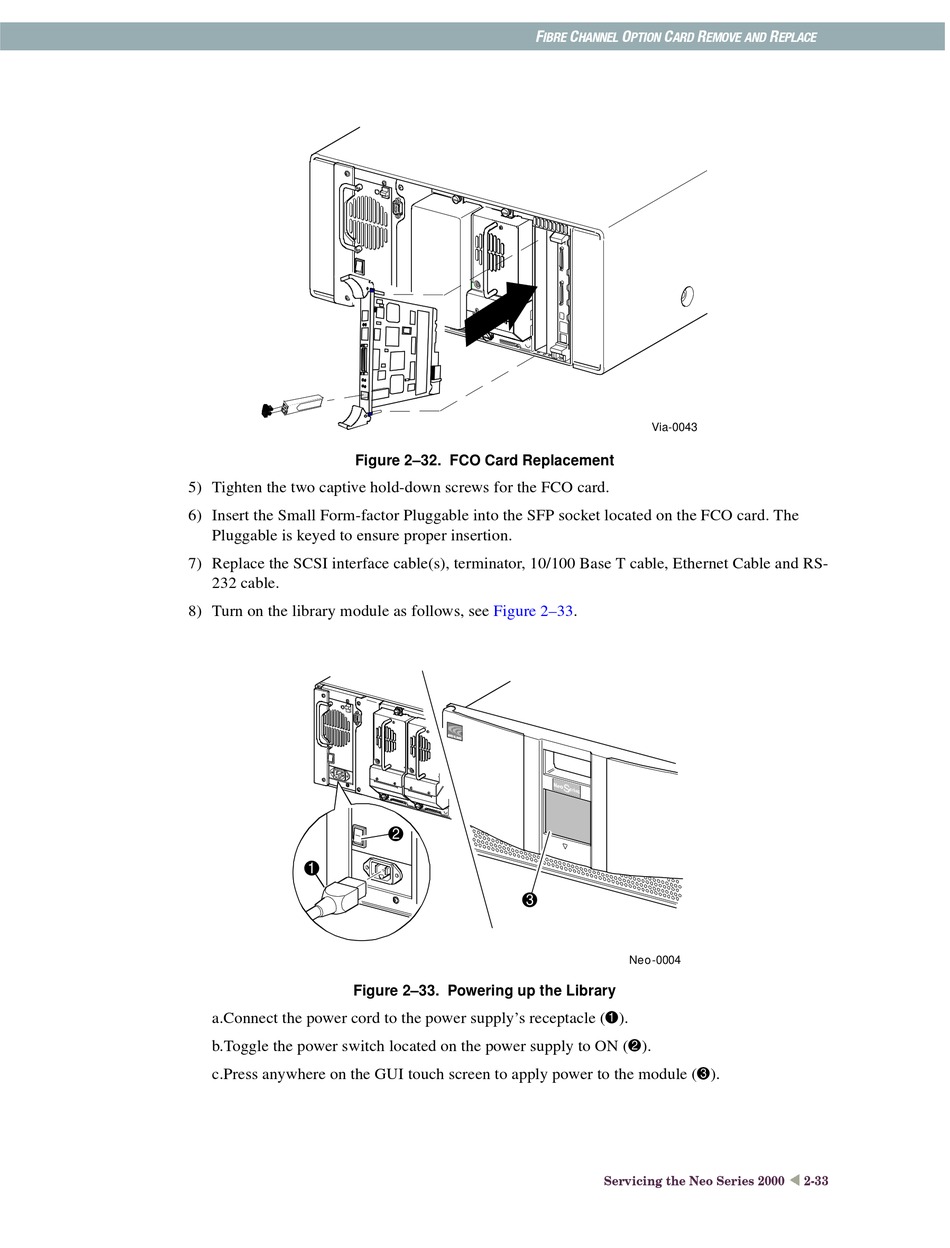

Figure 2–32. FCO Card Replacement
5) Tighten the two captive hold-down screws for the FCO card.
6) Insert the Small Form-factor Pluggable into the SFP socket located on the FCO card. The
Pluggable is keyed to ensure proper insertion.
7) Replace the SCSI interface cable(s), terminator, 10/100 Base T cable, Ethernet Cable and RS-
232 cable.
8) Turn on the library module as follows, see
1
Figure 2–33. Powering up the Library
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
F
IBRE
Figure 2–33.
2
3
C O C R
HANNEL PTION ARD EMOVE AND
Via-0043
Neo-0004
