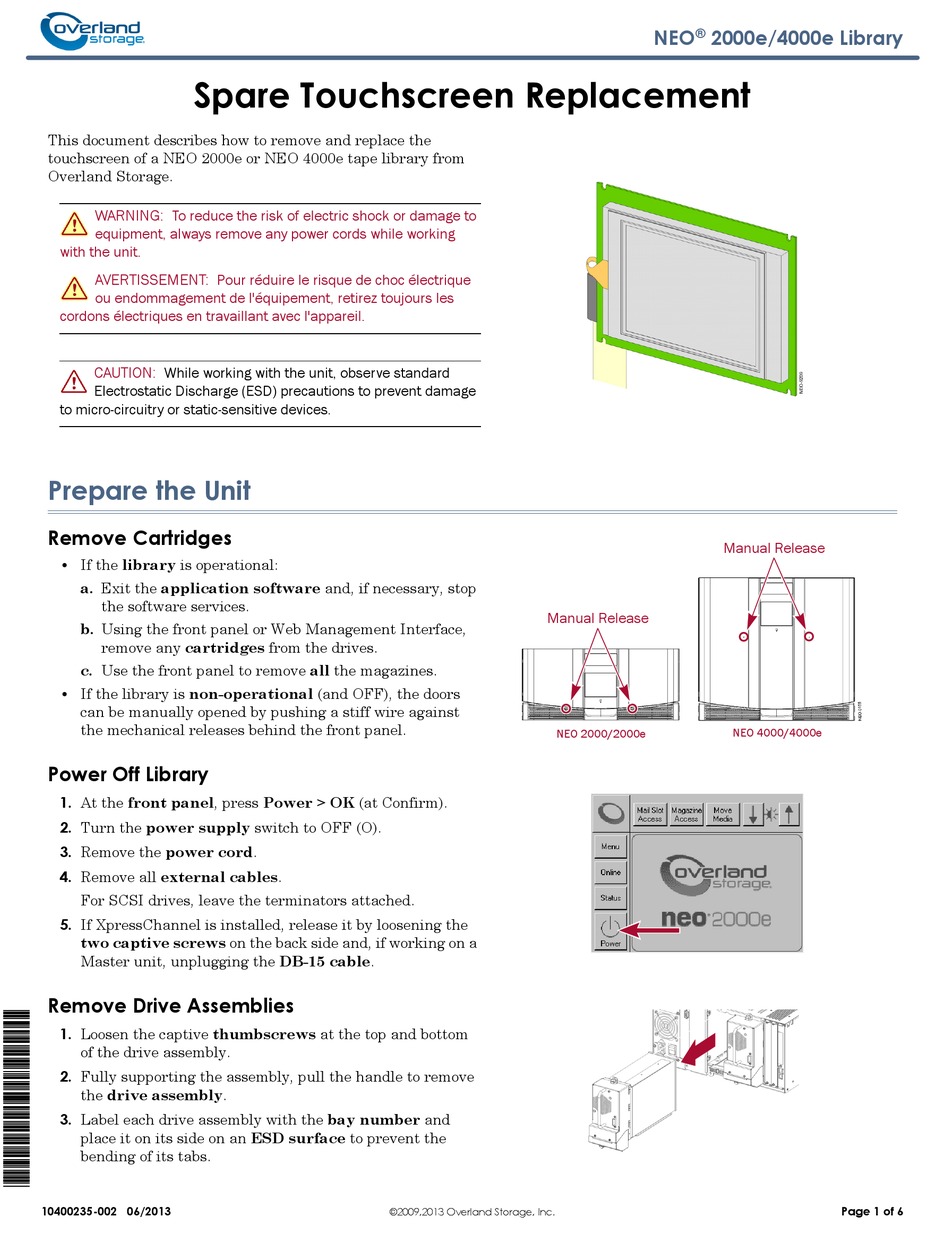

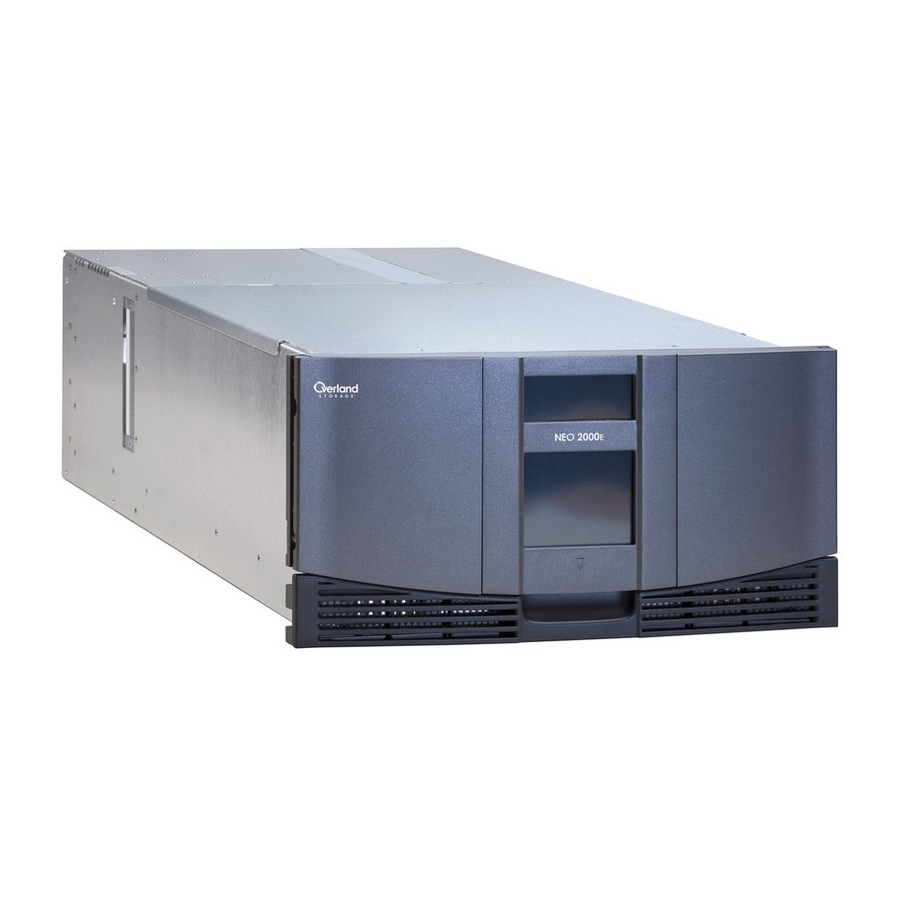

Overland Storage NEO 2000e Replacement Manual

Spare Touchscreen Replacement
This document describes how to remove and replace the
touchscreen of a NEO 2000e or NEO 4000e tape library from
Overland Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

Prepare the Unit

Remove Cartridges

• If the library is operational:
a. Exit the application software and, if necessary, stop
the software services.
b. Using the front panel or Web Management Interface,
remove any cartridges from the drives.
c. Use the front panel to remove all the magazines.
• If the library is non-operational (and OFF), the doors
can be manually opened by pushing a stiff wire against
the mechanical releases behind the front panel.

Power Off Library

1. At the front panel, press Power > OK (at Confirm).
2. Turn the power supply switch to OFF (O).
3. Remove the power cord.
4. Remove all external cables.
For SCSI drives, leave the terminators attached.
5. If XpressChannel is installed, release it by loosening the
two captive screws on the back side and, if working on a
Master unit, unplugging the DB-15 cable.

Remove Drive Assemblies

1. Loosen the captive thumbscrews at the top and bottom
of the drive assembly.
2. Fully supporting the assembly, pull the handle to remove
the drive assembly.
3. Label each drive assembly with the bay number and
place it on its side on an ESD surface to prevent the
bending of its tabs.
