Figure 1-3 Neo Series 4000 Mechanical Parts; Table 1-2 Mechanical Spare Parts List - Overland Storage Neo Series Library Service Manual

3
2
1
:
9
9
:

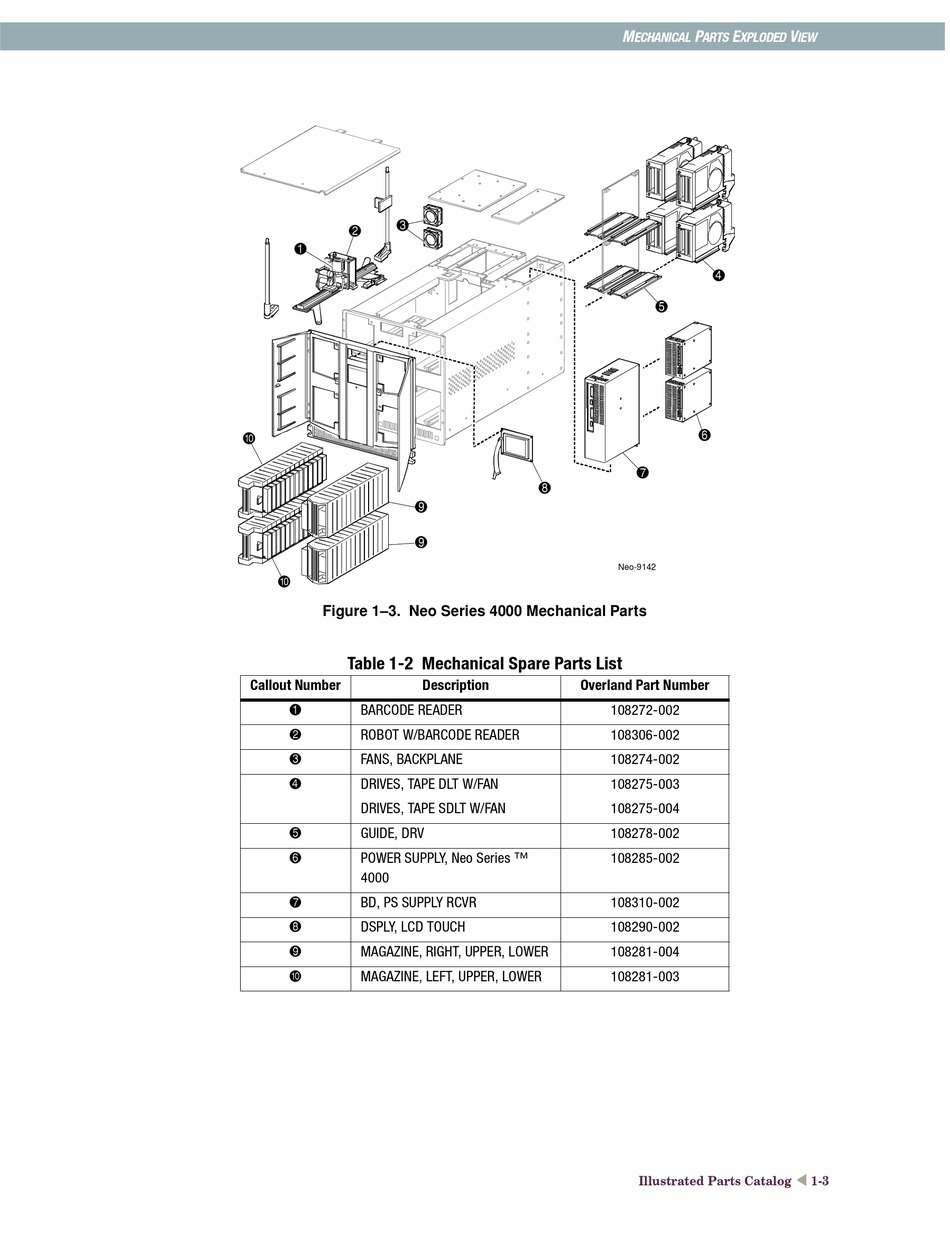

Figure 1–3. Neo Series 4000 Mechanical Parts

Table 1-2 Mechanical Spare Parts List

Callout Number
1 BARCODE READER
2 ROBOT W/BARCODE READER
3
FANS, BACKPLANE
4
DRIVES, TAPE DLT W/FAN
DRIVES, TAPE SDLT W/FAN
5 GUIDE, DRV
6 POWER SUPPLY, Neo Series ™
4000
7
BD, PS SUPPLY RCVR
8
DSPLY, LCD TOUCH
9
MAGAZINE, RIGHT, UPPER, LOWER
- MAGAZINE, LEFT, UPPER, LOWER
8
Description Overland Part Number
M P E V
ECHANICAL ARTS XPLODED
4
5
6
7
Neo-9142
108272-002
108306-002
108274-002
108275-003
108275-004
108278-002
108285-002
108310-002
108290-002
108281-004
108281-003
Illustrated Parts Catalog
IEW
1-3
