Partitioning Controller Card Remove and Replace

The Partitioning Controller Card is installed in a card cage assembly on the right at the rear of the
library next to the Library Controller Card. The SCSI interface cable(s), terminator, 10/100 Base T
cable, Ethernet and RS-232 cable must be removed to replace the FCO Card.

FCO Card Removal

1) Exit the application software and halt the operating system if necessary.
2) Power off the library using the Graphical User Interface (GUI) and then switch the Master
Power Switches on the power supplies at the rear of the module to the off (0) position.
3) Remove the power cord from the receptacle.
4) Remove the SCSI interface cable(s), terminator, 10/100 Base T cable, Ethernet cable and RS-
232 cable.
5) Loosen the two captive hold-down screws under the ejector handles.
6) Disconnect the card by spreading the ejector handles apart.
7) Pull the FCO Card out of the card cage,

FCO Card Replacement

1) Carefully insert the Fibre Channel Option card into the upper and lower guide rails of the
option bay, see Figure
2) The SFP socket should be at the bottom of the FCO card.
3) Slide the Fibre Channel Option card into the option bay. Resistance will be felt when the FCO
begins to mate with the library backplane.
4) Apply just enough force to seat the FCO card snugly into the library backplane to ensure
proper connectivity.
P
ARTITIONING
(Figure 3–30).

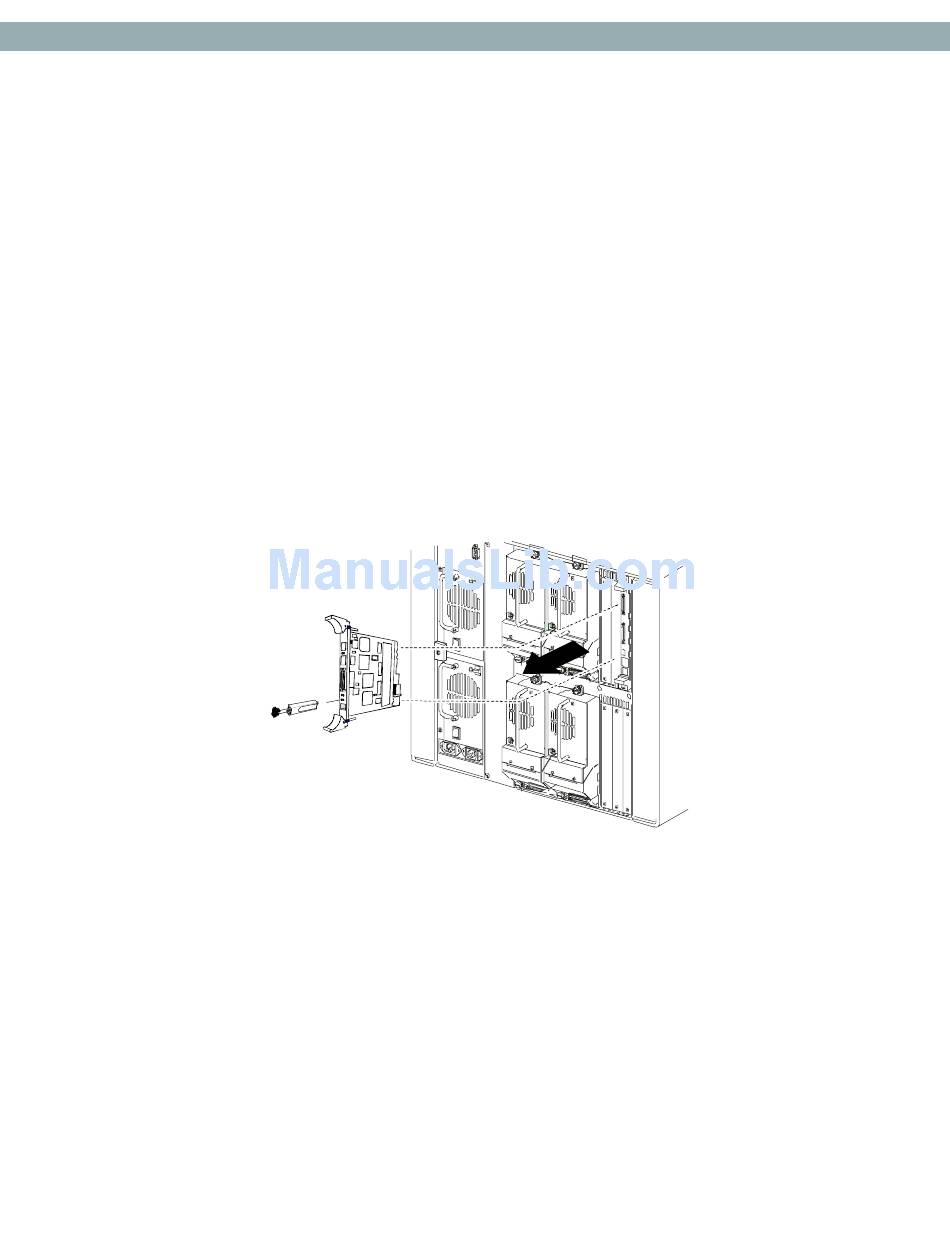

Figure 3–33. FCO Card Removal
3–31.
C C R R
ONTROLLER ARD EMOVE AND
Via-0044a
Servicing the Neo Series 4000
EPLACE
3-35
