Front Panel LED Remove and Replace

The Front Panel LED is mounted inside the Front Panel. The Front panel GUI Assembly must be
removed to replace the Front Panel LED.

Front Panel LED Removal

1) Using the GUI, park the cartridge Shuttle Assembly by powering off the module and then
switch the Master Power Switch on the power supply at the rear of the module to the off (0)
position. If the module is not operable, refer to
Service or Shipment".
2) Turn off the Master Power Switch on the power supply at the rear of the module.
3) Remove the power cord from the receptacle.
4) Remove the Front Panel as described in
5) Remove the GUI Assembly as described in
6) Note the location of the cable tie that is near the left-handed door solenoid that ties the two
solenoid cables and the front panel LED to the Front Panel.
7) Remove the two screws that mount the LED to the Front Panel,

Front Panel LED Replacement

1) Position the Front Panel LED on the mounting posts with the cable to the right.
2) Replace the two mounting screws,
3) Replace the GUI Assembly as described in
4) Replace the Front Panel as described in
"Parking the Shuttle Assembly Robotics for
"Front Panel Remove and
"GUI Assembly Remove and

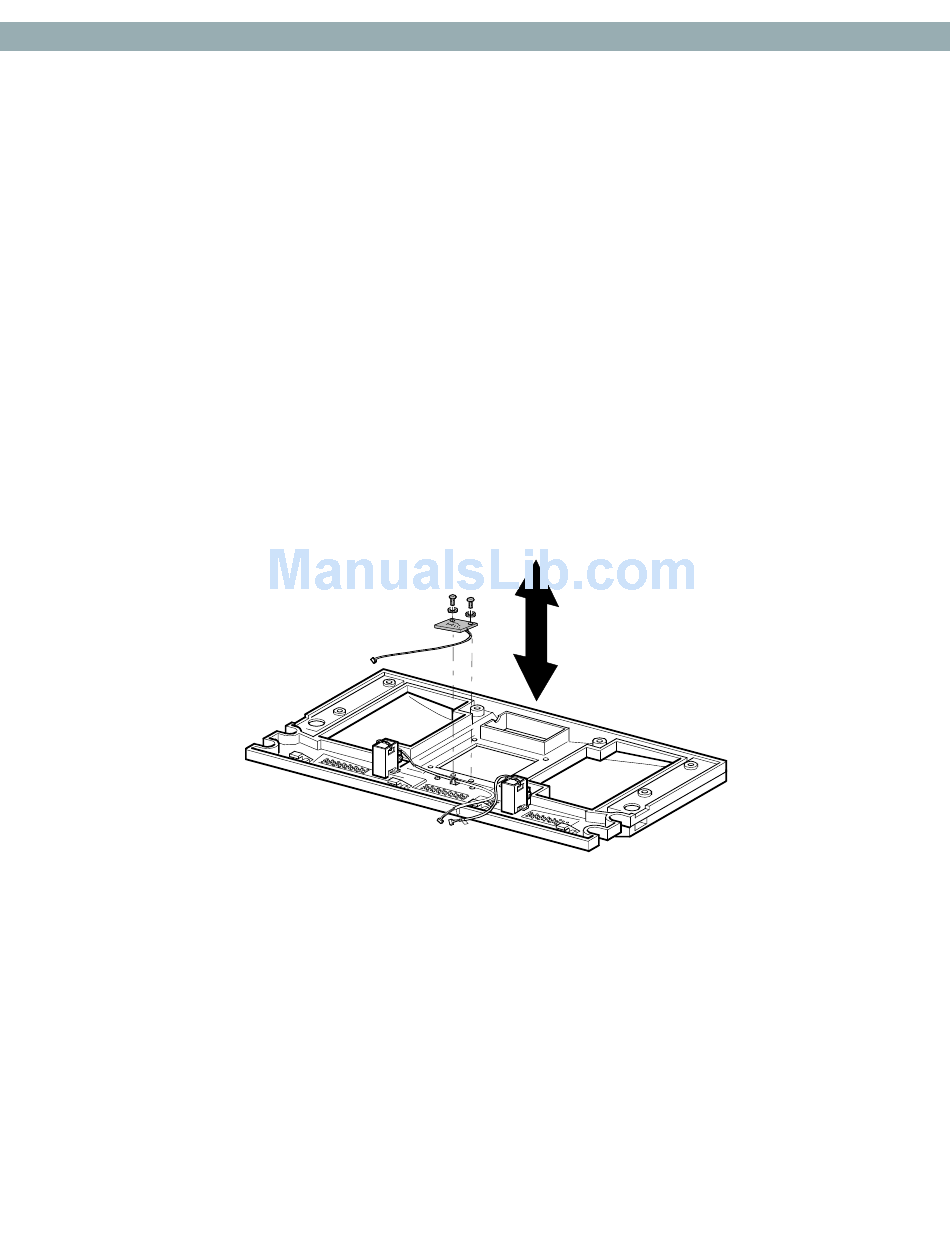

Figure 2–14. Front Panel LED Remove
(Figure 2–14).
"GUI Assembly Remove and
"Front Panel Remove and Replace"
F P LED R R
RONT ANEL EMOVE AND
Replace".
Replace".
(Figure 2–14).
Neo-9044c
Replace".
