Figure 3-34 Fco Card Replacement; Figure 3-35 Apply Power - Overland Storage Neo Series Library Service Manual

P C C R
ARTITIONING ONTROLLER ARD
3-36 Servicing the Neo Series 4000
u
R
EMOVE AND EPLACE
5) Tighten the two captive hold-down screws for the FCO card.
6) Insert the Small Form-factor Pluggable (if applicable) into the SFP socket located on the FCO
card. The Pluggable is keyed to ensure proper insertion.
7) Replace the SCSI interface cable(s), terminator, 10/100 Base T cable, Ethernet Cable and RS-
232 cable.
8) Turn on the library module as follows,
a. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
1

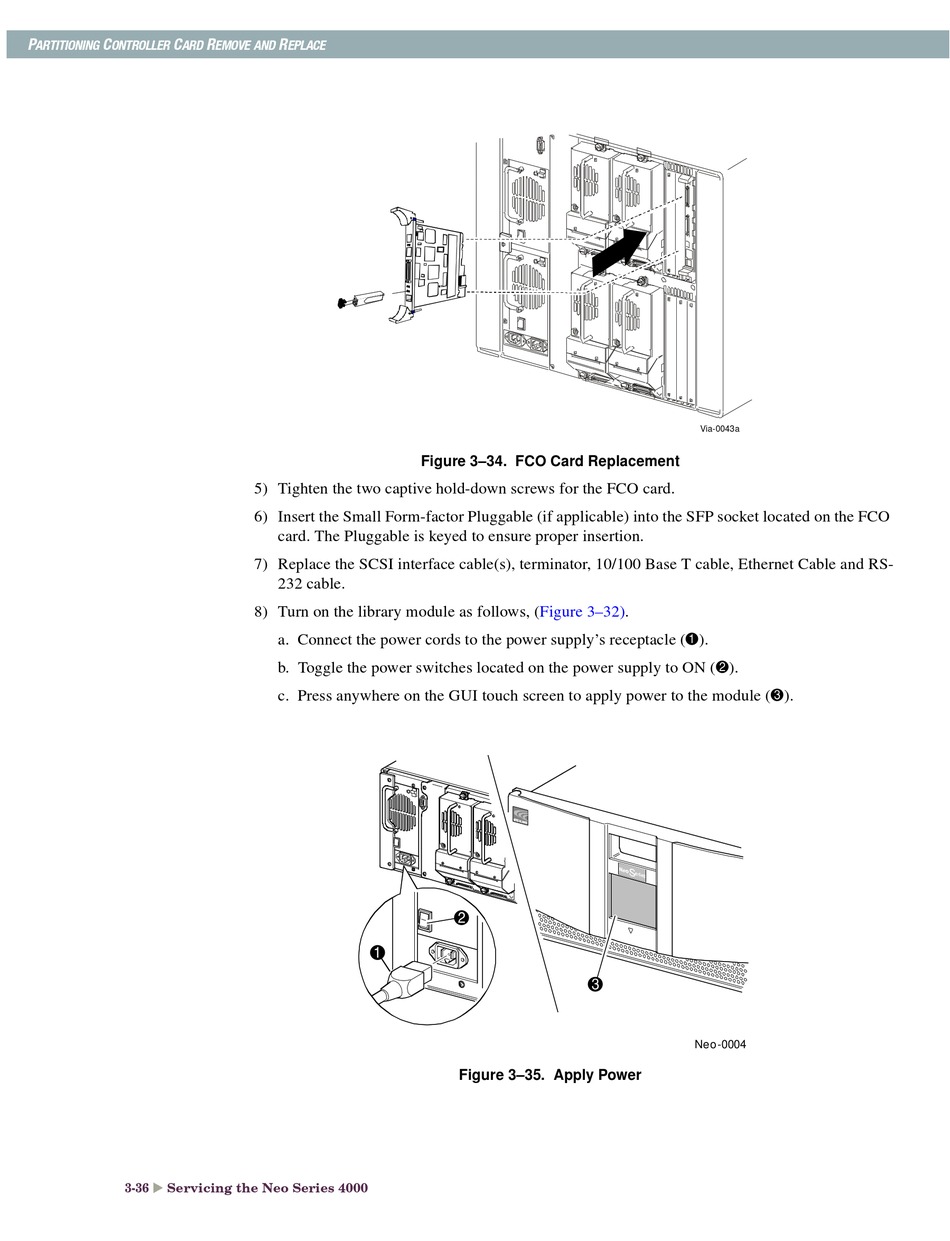

Figure 3–34. FCO Card Replacement
(Figure 3–32).
2
3
Figure 3–35. Apply Power
Via-0043a
Neo-0004
