Card Cage/Backplane Board; Figure 6-10 Card Cage/Backplane Board; Table 6-10 Card Cage/Backplane Board Connectors - Overland Storage Neo Series Library Service Manual

N S 2000 C
EO ERIES ONNECTORS

Card Cage/Backplane Board

6-10 Connectors, Switches and Indicators
u
q
1
2
3
4

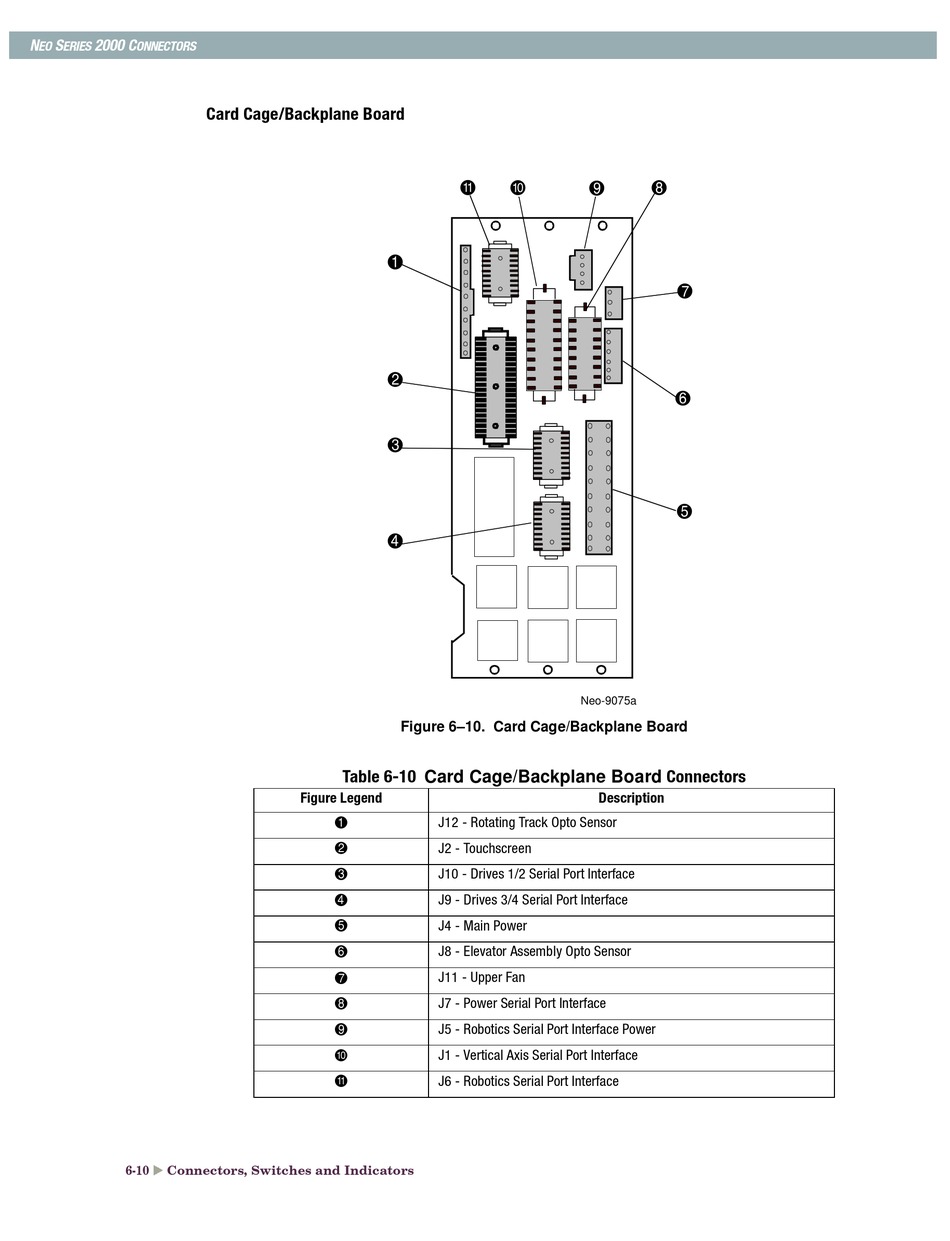

Figure 6–10. Card Cage/Backplane Board

Table 6-10 Card Cage/Backplane Board Connectors

Figure Legend
1
J12 - Rotating Track Opto Sensor
2
J2 - Touchscreen
3
J10 - Drives 1/2 Serial Port Interface
4
J9 - Drives 3/4 Serial Port Interface
5
J4 - Main Power
6 J8 - Elevator Assembly Opto Sensor
7 J11 - Upper Fan
8 J7 - Power Serial Port Interface
9 J5 - Robotics Serial Port Interface Power
- J1 - Vertical Axis Serial Port Interface
q
J6 - Robotics Serial Port Interface
- 8
9
7
6
5
Neo-9075a
Description
