GUI Assembly Remove and Replace

The Graphical User Interface (GUI) assembly is mounted on the inside of the Front Panel. The Front
Panel must be removed to replace the GUI Assembly.

GUI Assembly Removal

1) Using the GUI, park the cartridge Shuttle Assembly by powering off the module and then
switch the Master Power Switches on the power supplies at the rear of the module to the off
(0) position. If the module is not operable, refer to
for Service or Shipment". Unplug the power cords.
2) Remove the Front Panel as described in
3) Place the Front Panel face down on the work surface. Use some cushioning material to protect
the finish of the Front Panel.
4) Remove the four screws with insulating washers that hold the GUI Assembly to the Front
Panel, (Figure 3–11).

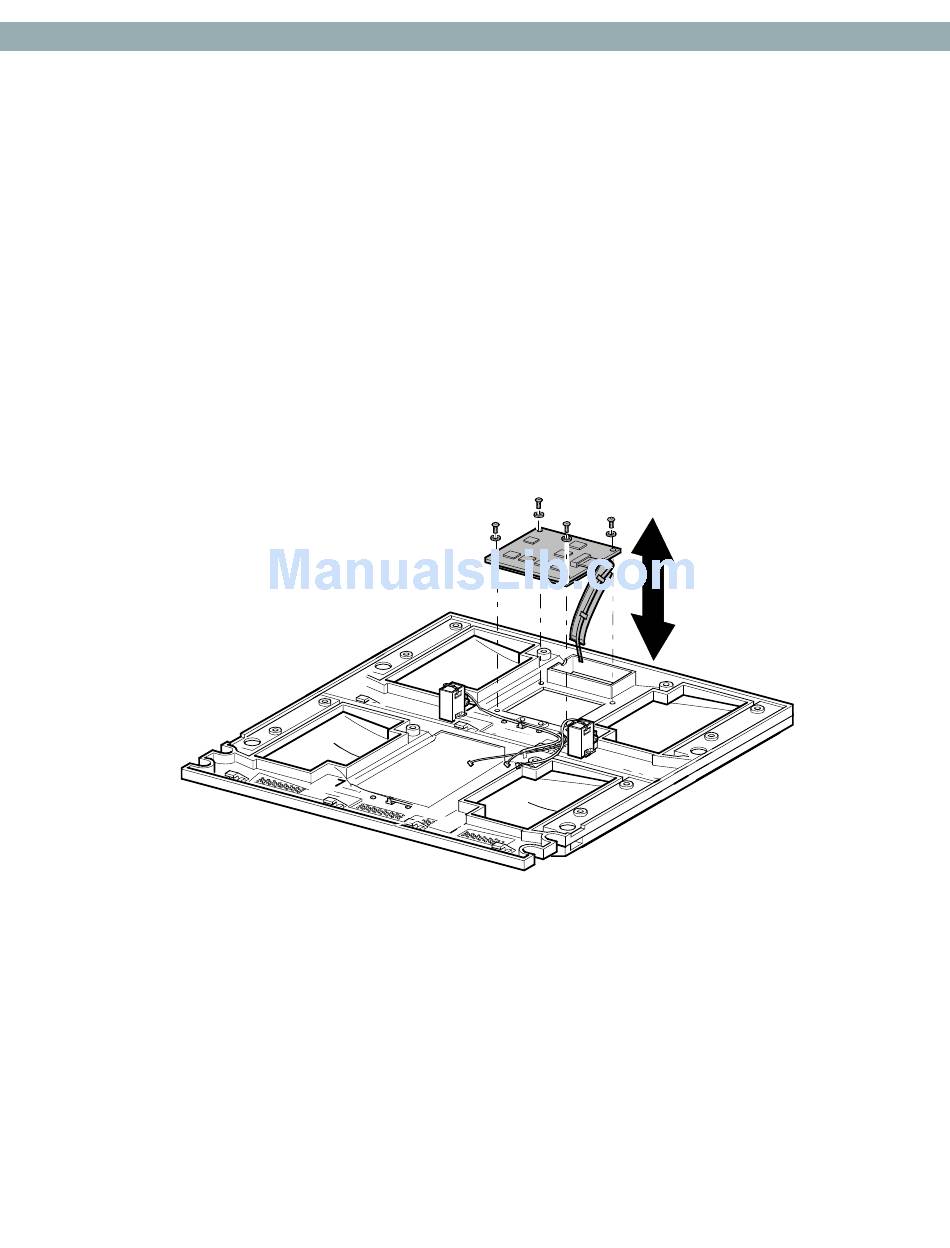

Figure 3–11. GUI Assembly Remove and Replace
5) Lift the GUI Assembly from the Front Panel.

GUI Assembly Replacement

1) Place the GUI Assembly on the mounting posts with the ribbon cable and flex cable to the
right, (Figure 3–11).
2) Replace the four mounting screws and insulating washers with the insulating washers between
the mounting screw washer and the PCB.
3) Replace the Front Panel Assembly using the instructions
GUI A
SSEMBLY
"Parking the Shuttle Assembly Robotics
"Front Panel Remove and Replace".
.
"Front Panel Remove and
Servicing the Neo Series 4000
R R
EMOVE AND EPLACE
Neo-9044a
Replace".
3-13
