Power Supply Remove And Replace; Power Supply Removal; Power Supply Replacement; Figure 2-34 Power Supply Remove And Replace - Overland Storage Neo Series Library Service Manual

P S R R
OWER UPPLY EMOVE AND EPLACE

Power Supply Remove and Replace

The Power Supply is installed on the left side at the rear of the library in a quick-change receiver. No
other assemblies need to be removed to remove the Power Supply.

Power Supply Removal

Power Supply Replacement

2-34 Servicing the Neo Series 2000
u
1) Power off the library using the front panel control and then switch the Master Power Switch
on the power supply at the rear of the module to the off (0) position, see
2) Remove the power cord from the receptacle.
CAUTION:
The power supply is NOT to be removed by the operator. Hazardous voltage is present in the cavity
if the power cord is not removed.
VORSICHT:
Die Stromversorgungseinheit darf nicht vom Bedienungspersonal entfernt werden. Gefährliche
Stromspannung tritt im Hohlraum auf, wenn das Netzkabel nicht entfernt ist.
3) Remove the two mounting screws securing the power supply locking bracket, see
34.
4) Push down on the latch and use the handle to pull the power supply out of the receiver.

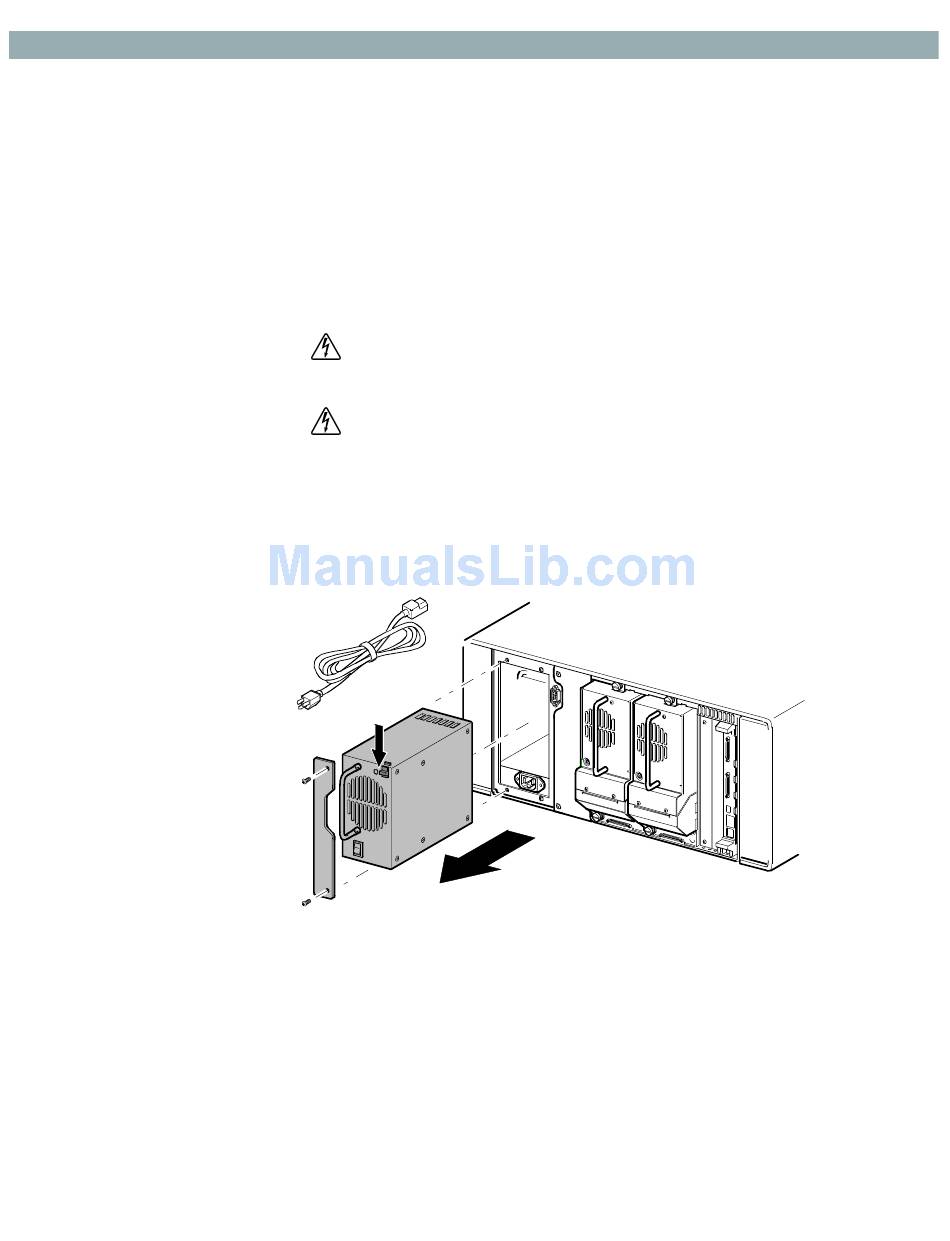

Figure 2–34. Power Supply Remove and Replace
1) Position the power supply at the rear of the library with the latch at the top and the Master
Power Switch at the bottom, see
2) Push the Power Supply into the receiver until the latch engages.
Figure 2–34.
Figure 2–34.
Figure 2–
Neo-9051
