5) Refer to
Figure
2–56. Where the cables exit the Flex Chain at the pivot point, bend the cables
in a circle to the left (counter-clockwise) and back under the Flex Chain and Cable Support
Rod. Replace the cable clamp at the pivot point. Put the clamp on the cable with the flat side
up and open side to the right. Replace the spacer, cable clamp, screw and washer on the pivot
block, but do not tighten the screw at this time
Cable Tie

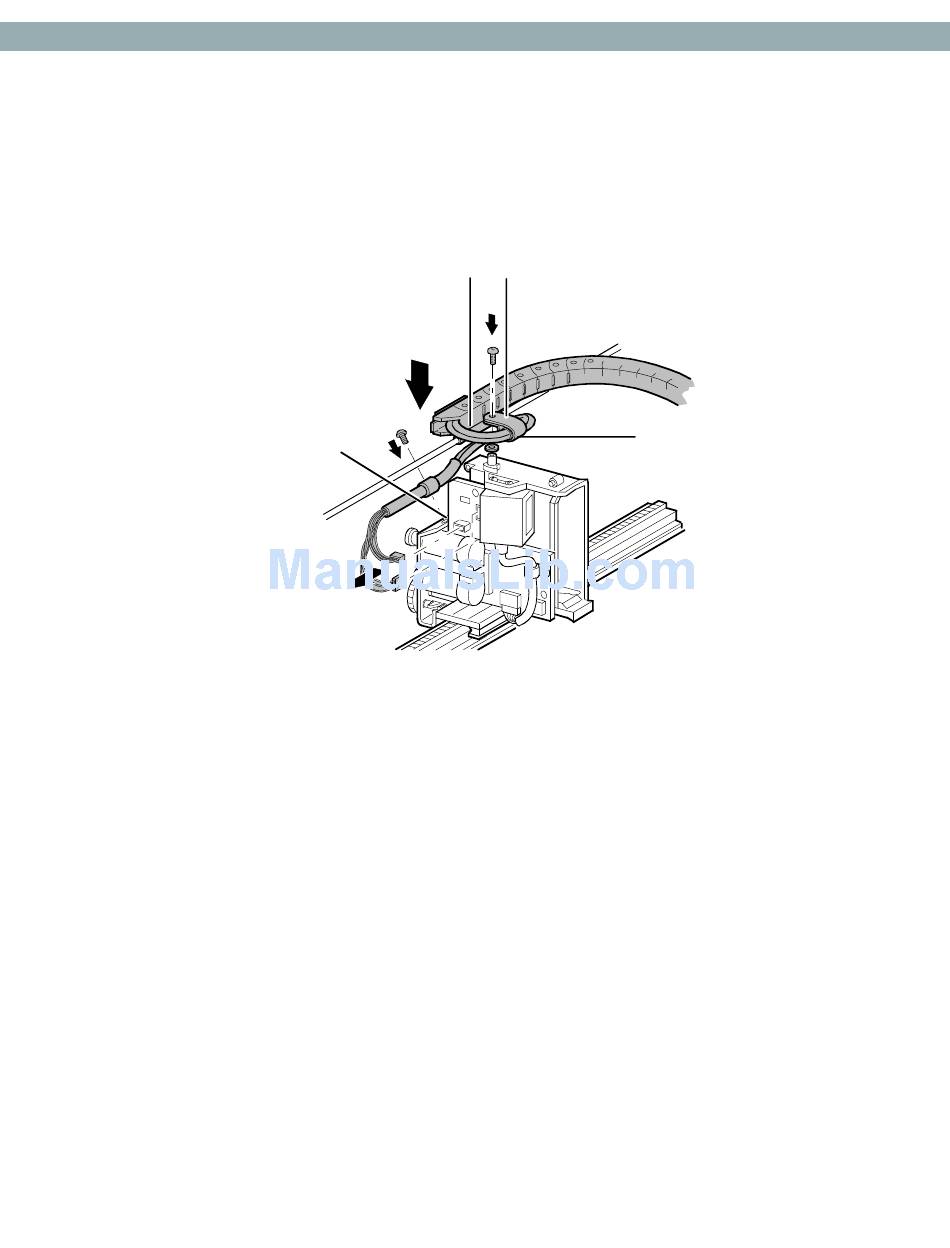

Figure 2–56. Installing Flex Chain On Robot
6) Dress the cables between the Flex Chain and the cable clamp to align the cable tie on the
cables with the rear edge of the cable clamp. The shrink tubing will be inside the clamp. The
cables should exit the cable clamp side-by-side.
7) Tighten the screw against the spacer. Be sure the spacer is inside the screw mounting holes of
the clamp. The cable clamp should be able to rotate after tightening the screw.
8) Continue routing the cables counterclockwise down the Shuttle Assembly PCB. The cables
should remain parallel and not be twisted around each other. Replace cables at J9 and J3.
9) Replace the cable clamp above the pulleys. The flat side should be down with the cables about
the mounting screw and shrink tubing inside the clamp. Do not tighten the screw at this time.
10) Align the end of the shrink tubing with the edge of the Shuttle Assembly PCB and tighten the
screw.
11) Replace the outer skin and front panel cover using
instructions in this chapter.
12) Turn on the library module as follows, see
S
A
R
HUTTLE
SSEMBLY
1/2"
Cable Tie
Neo-9066b
"Library Covers Remove and Replace"
Figure
2–57.
Servicing the Neo Series 2000
R
R
OBOTICS
EMOVE AND
EPLACE
2-59
