Magazine Interlock Solenoid Assembly

The Magazine Interlock Solenoid Assembly is mounted on the underside of the left magazine track near
the front of the library. The left magazine must be removed to remove the Magazine Interlock Solenoid.

Magazine Interlock Solenoid Removal

Magazine Interlock Solenoid Replacement

2-28
Servicing the Neo Series 2000
u
SSEMBLY
1) Remove the left magazine using the front panel control. Refer to the section
Magazine Removal"
2) Using the Graphical User Interface GUI, park the cartridge Shuttle Assembly by powering off
the module and then switch the Master Power Switch on the power supply at the rear of the
module to the off (0) position. If the module is not operable, refer to the section
Shuttle Assembly Robotics for Service or
3) Remove the power cord from the receptacle.
4) Remove the tabletop cover and front main cover using
instructions in this chapter.
5) Disconnect the cable at J12 on the Control Panel PCB, see
6) While supporting the solenoid assembly below the magazine track, remove the two flat-head
mounting screws that are towards the center of the magazine track, see
7) Remove the Magazine Interlock Solenoid from beneath the magazine track.

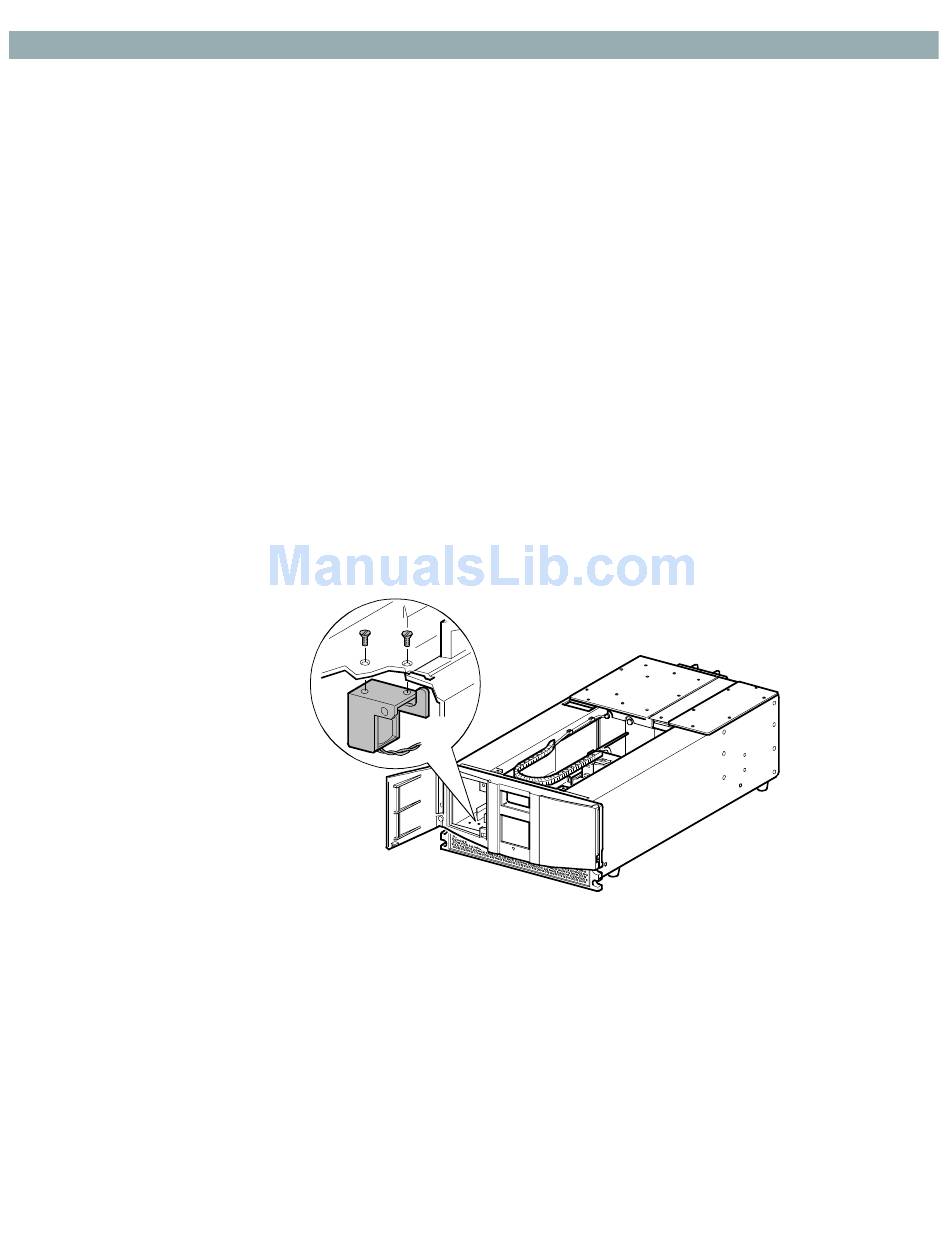

Figure 2–27. Mail Slot Solenoid Remove and Replace
1) Position the Magazine Interlock Solenoid underneath the magazine track with the locking tab
to the right. The top of the tab should be in the slot, see
2) Align the mounting holes and install the two flat-head screws.
3) Connect the cable at J12 on the Control Panel PCB, see
if necessary.
Shipment".
"Emergency
"Parking the
"Library Covers Remove and Replace"
Figure
2–25.
Figure
2–27.
Neo-9049
Figure
2–27.
Figure
2–25.
