N S 2000 C
EO ERIES ONNECTORS

Shuttle Assembly Board

6-4 Connectors, Switches and Indicators
u
1
2
3
4

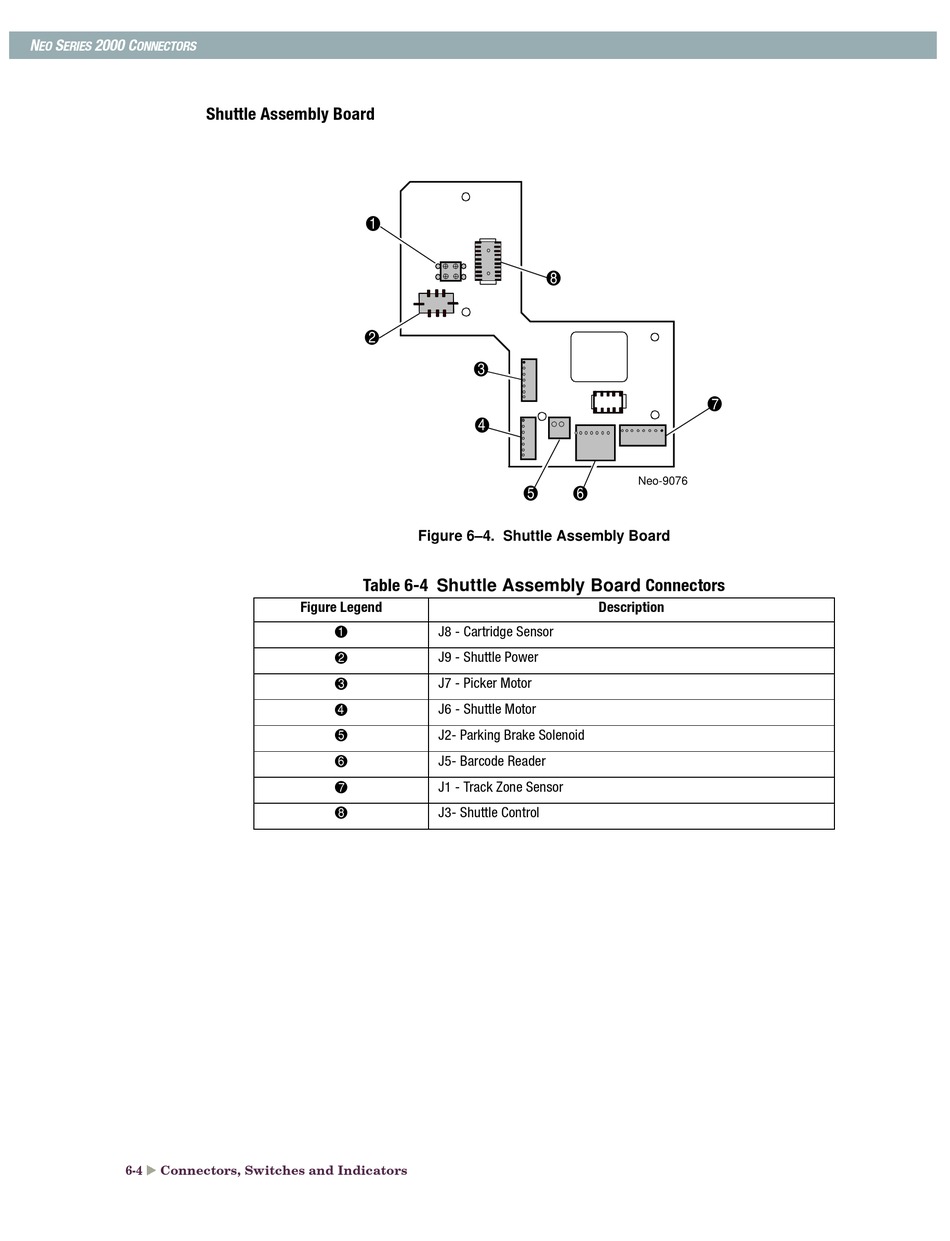

Figure 6–4. Shuttle Assembly Board

Table 6-4 Shuttle Assembly Board Connectors

Figure Legend
1 J8 - Cartridge Sensor
2
J9 - Shuttle Power
3
J7 - Picker Motor
4
J6 - Shuttle Motor
5 J2- Parking Brake Solenoid
6 J5- Barcode Reader
7 J1 - Track Zone Sensor
8 J3- Shuttle Control
8
Neo-9076
5 6
Description
7
