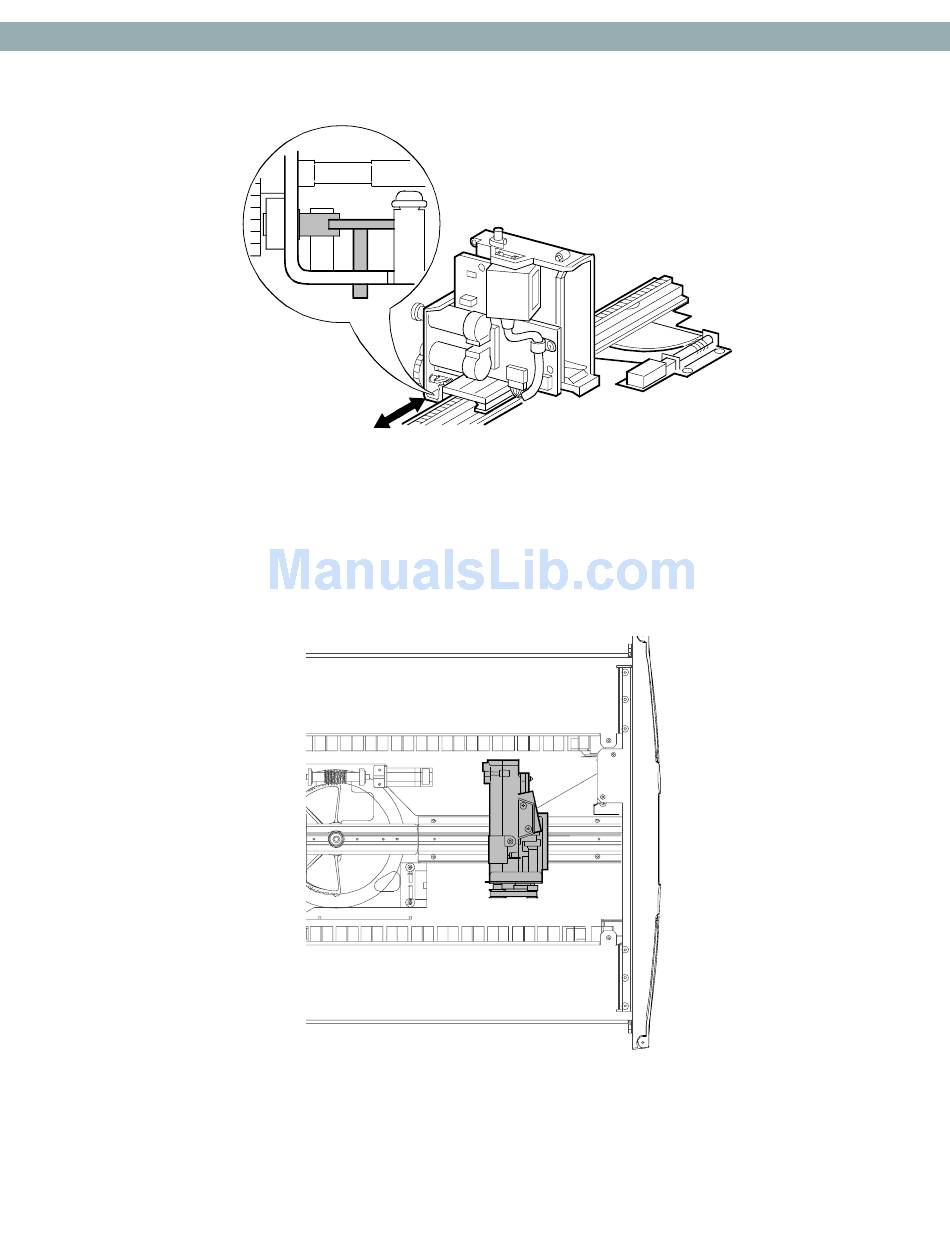

Figure 3–6. Shuttle Brake Release
8) Release the brake release lever and verify that it is locked.
9) Replace the Tabletop Cover and Front Chassis Cover using
Replace" instructions in this chapter if the library is to be shipped.
10) It is now safe to proceed with the service or shipment.
Track
Figure 3–7. Shuttle Assembly in Parked Position
P S
ARKING THE HUTTLE
.
.
Rotating Track
Section
A R S
SSEMBLY OBOTICS FOR ERVICE OR
Neo-9038
"Library Covers Remove and
Servicing the Neo Series 4000
S
HIPMENT
3-9
