Power Supply Receiver Cover Replacement; Figure 2-5 Tabletop Model Cover Removal - Overland Storage Neo Series Library Service Manual

L C R R
IBRARY OVERS EMOVE AND EPLACE
Neo-9040

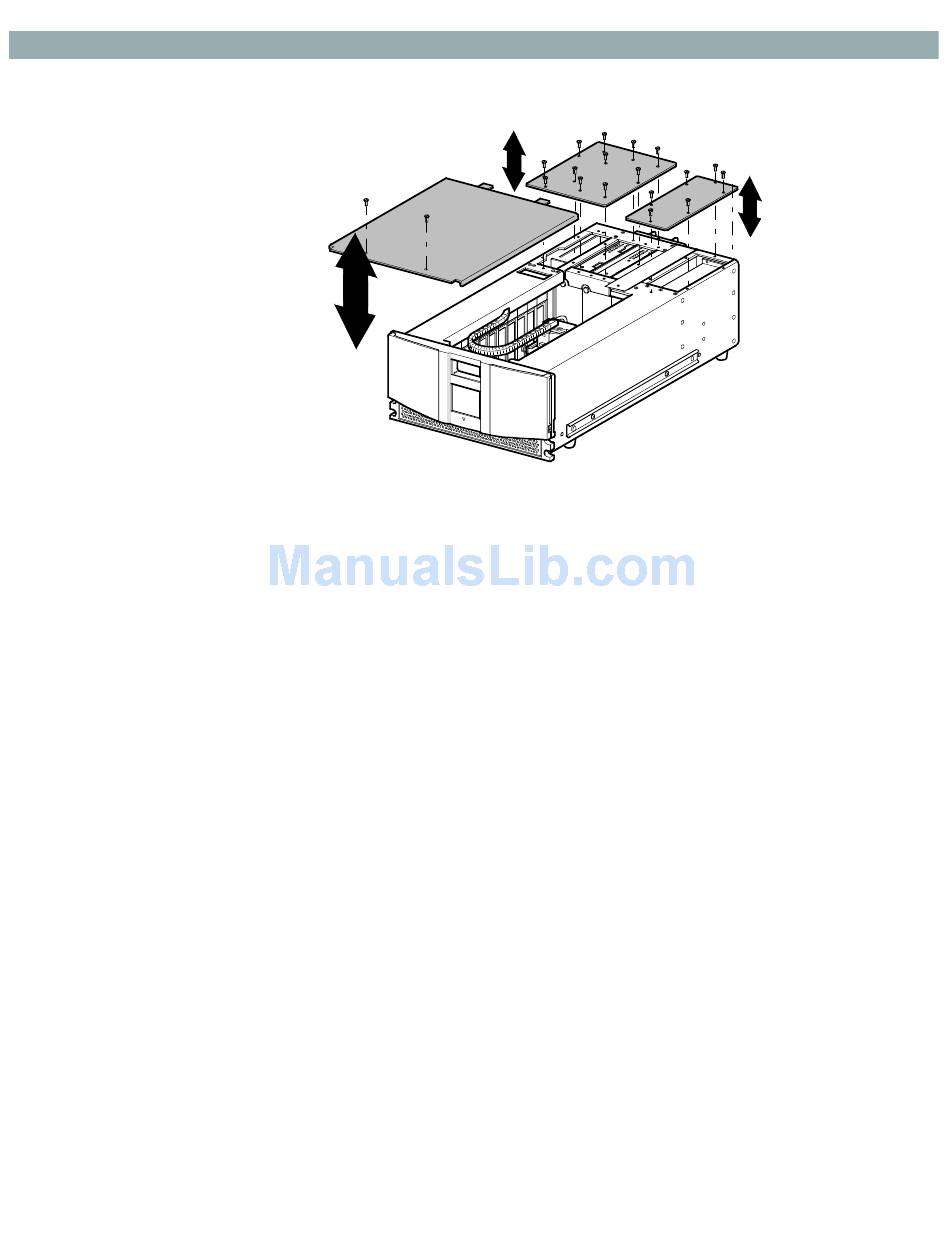

Figure 2–5. Tabletop Model Cover Removal

Power Supply Receiver Cover Replacement

1) Seat the cover on the library chassis aligning the screw holes, see Figure 2–5.
2) Replace the 6 screws that secure the cover to the library chassis.
2-6 Servicing the Neo Series 2000
