J18
7) Remove the Control Panel PCB from the chassis area.

Control Panel PCB Replacement

1) Position the Control Panel PCB at the front of the chassis and make the appropriate
connections at the J4, J2, J6, J12, J11, J18, and J15 locations,
2) Make the appropriate connections at the J1 and J9 locations,
3) Replace the four mounting screws and washers from the PCB
NOTE: Be sure not to pinch any of the PCB cables when replacing the mounting screws.
4) Replace the Front Panel using
5) Turn on the library module as follows
a. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
J11 J12 J6 J2
Upper Edge
J15 J9

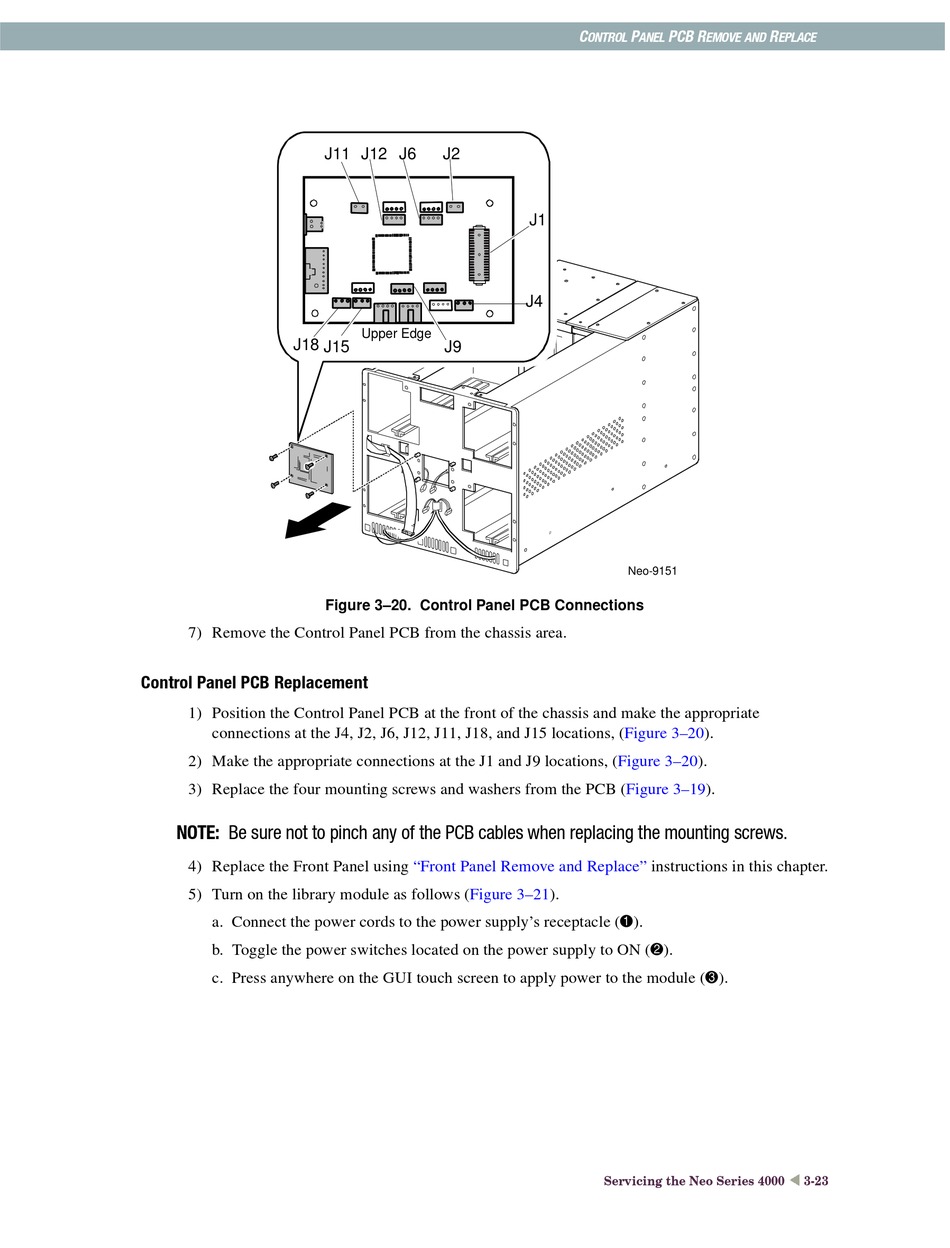

Figure 3–20. Control Panel PCB Connections
"Front Panel Remove and Replace"
(Figure
C P PCB R
ONTROL ANEL
J1
J4
Neo-9151
(Figure 3–20).
(Figure 3–20).
(Figure 3–19).
instructions in this chapter.
3–21).
Servicing the Neo Series 4000
R
EMOVE AND EPLACE
3-23
