Front Panel Replacement

2-10 Servicing the Neo Series 2000
u
7) While holding the Front Panel against the chassis, remove the 2 screws that hold the Front
Panel to the chassis, see
8) Remove the 2 screws behind the chassis ears located at the top corners.
9) Carefully pull the top of the Front Panel away from the chassis about one inch and then lift up
on the Front Panel so that the four tabs that hold the panel at the bottom clear the chassis.
10) Guide the cables out through the chassis opening while removing the Front Panel, see
Figure 2–9.
1) Position the Front Panel near the chassis and guide the cables through the chassis opening.
NOTE: The cables are to be routed through the lower-right part of the L-shaped opening that is
close to the bottom of the chassis. See
stays on top of the 15 pin flat cable and does not get twisted or folded as it goes through the
chassis.
Figure 2–9.
.4
Molded Tab (4)

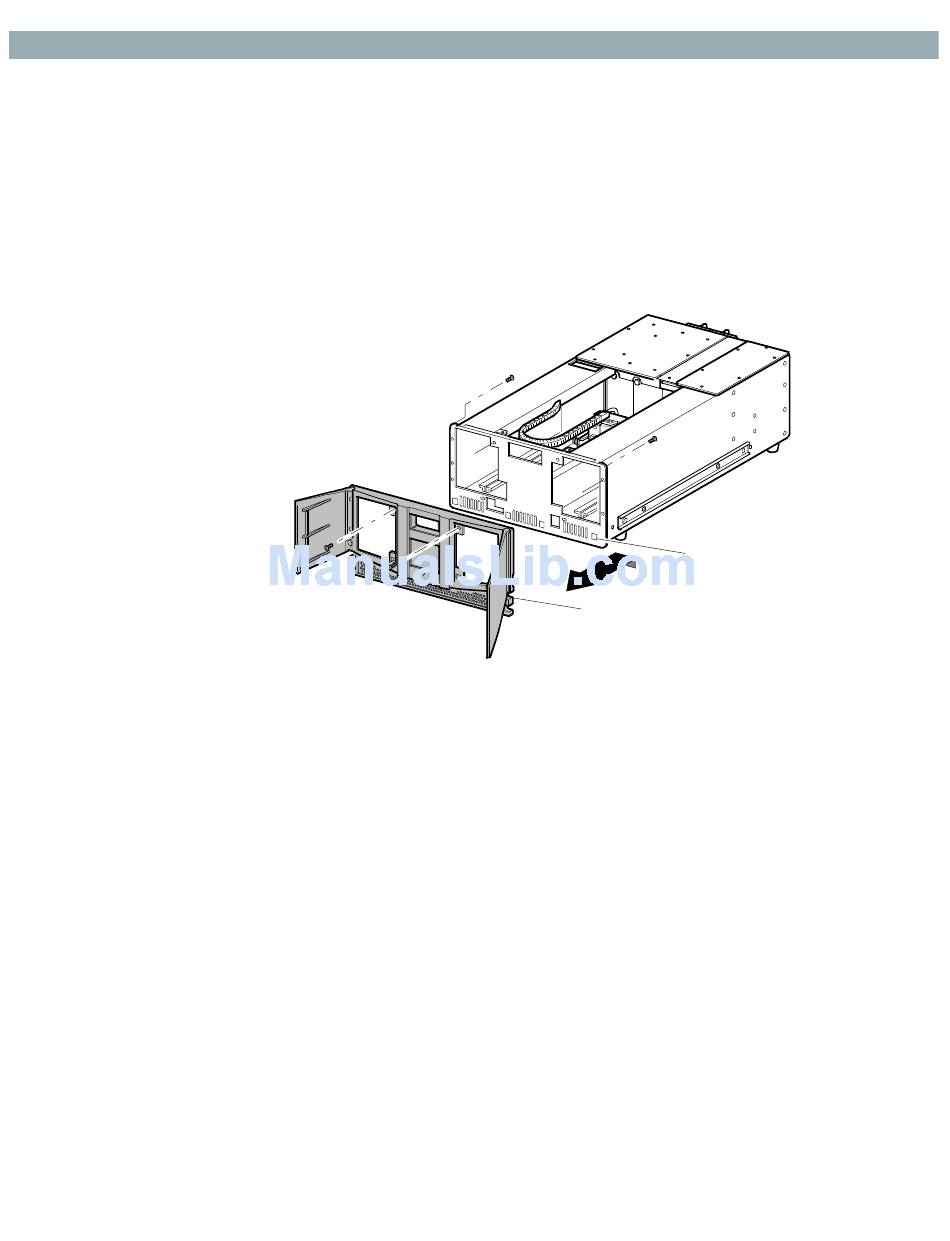

Figure 2–9. Front Panel Removal
Figure 2–10. Be especially careful that the flex cable
Molded Tab
Opening (4)
Neo-9042
