Drive Divider Replacement

3-64 Servicing the Neo Series 4000
u
1) Insert the Drive Divider into the tape drive bay (see
2) Secure the Drive Divider to the library chassis using the two previously removed flat-head
screws (see Figure 3–58).
NOTE: If the lower Drive Divider was removed, replace the Power Cable Wire Harness cover
plate located inside the chassis between the drive bays.
3) Replace the Drive Shoe assemblies following the instructions in
Remove and Replace"
4) Turn on the library module as follows, see
a. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
2
1
Figure
Figure 3–59.

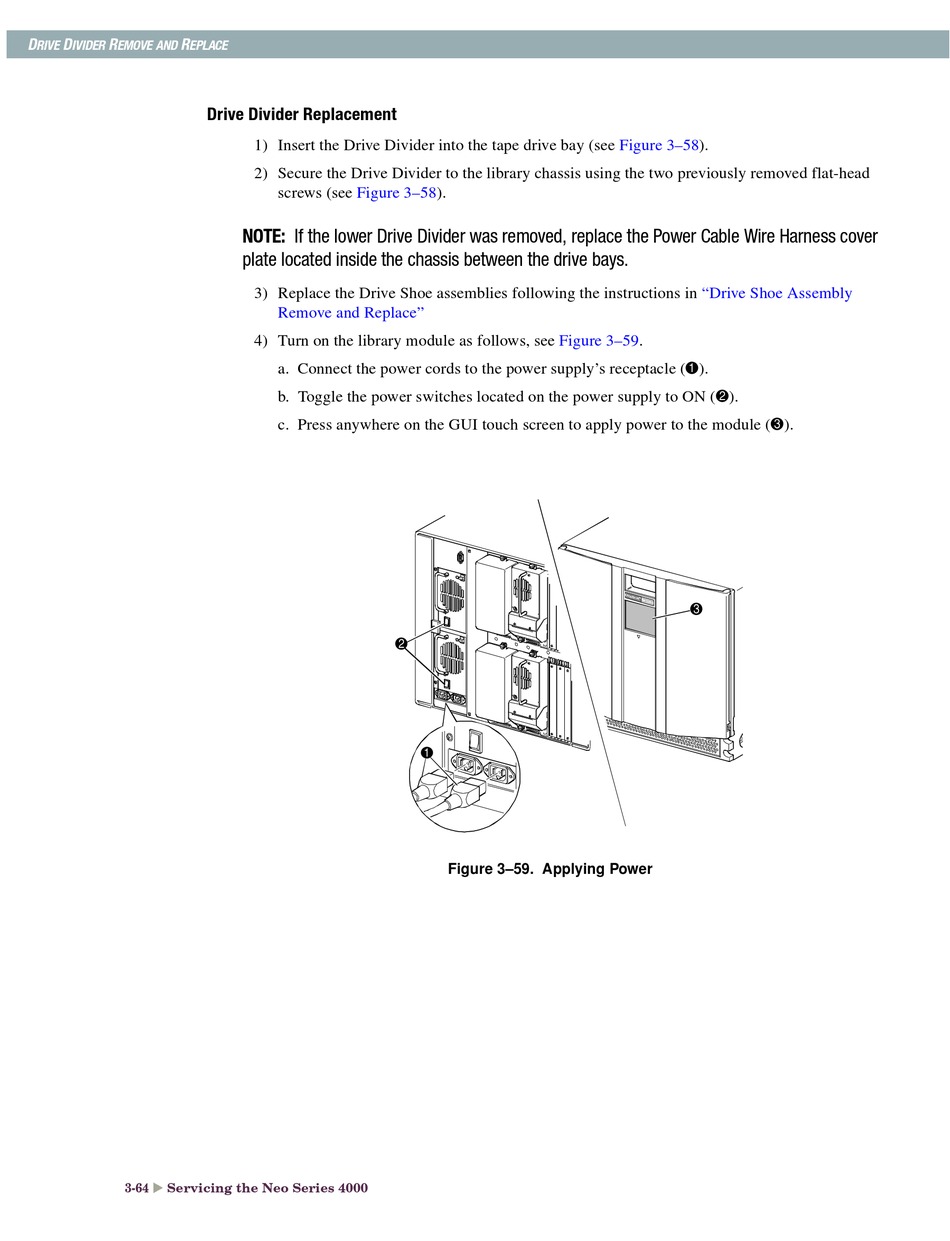

Figure 3–59. Applying Power
3–58).
"Drive Shoe Assembly
3
