Chapter 4 Operation; Introduction; Front Panel; Figure 4-1 Library Front Panel - Overland Storage Neo Series Library Service Manual

Chapter 4
Operation

Introduction

This chapter describes the operation the Overland Data Neo Series™ 2000/4000 Libraries. Sections
in this chapter include:
•

Front panel

•
Turning the library on
•
Library display screens and options
•
Inserting and removing tape cartridges
Front Panel
The front panel of the libraries include the left and right magazine doors, a Graphical User Interface
(GUI) touch screen, a library status LED, and a viewing window, see
1
2
3
1
Left Magazine Door
2
Viewing Window
3
GUI Touch Screen
4
Library Status LED
5
Right Magazine Door
1
2
4
3
5

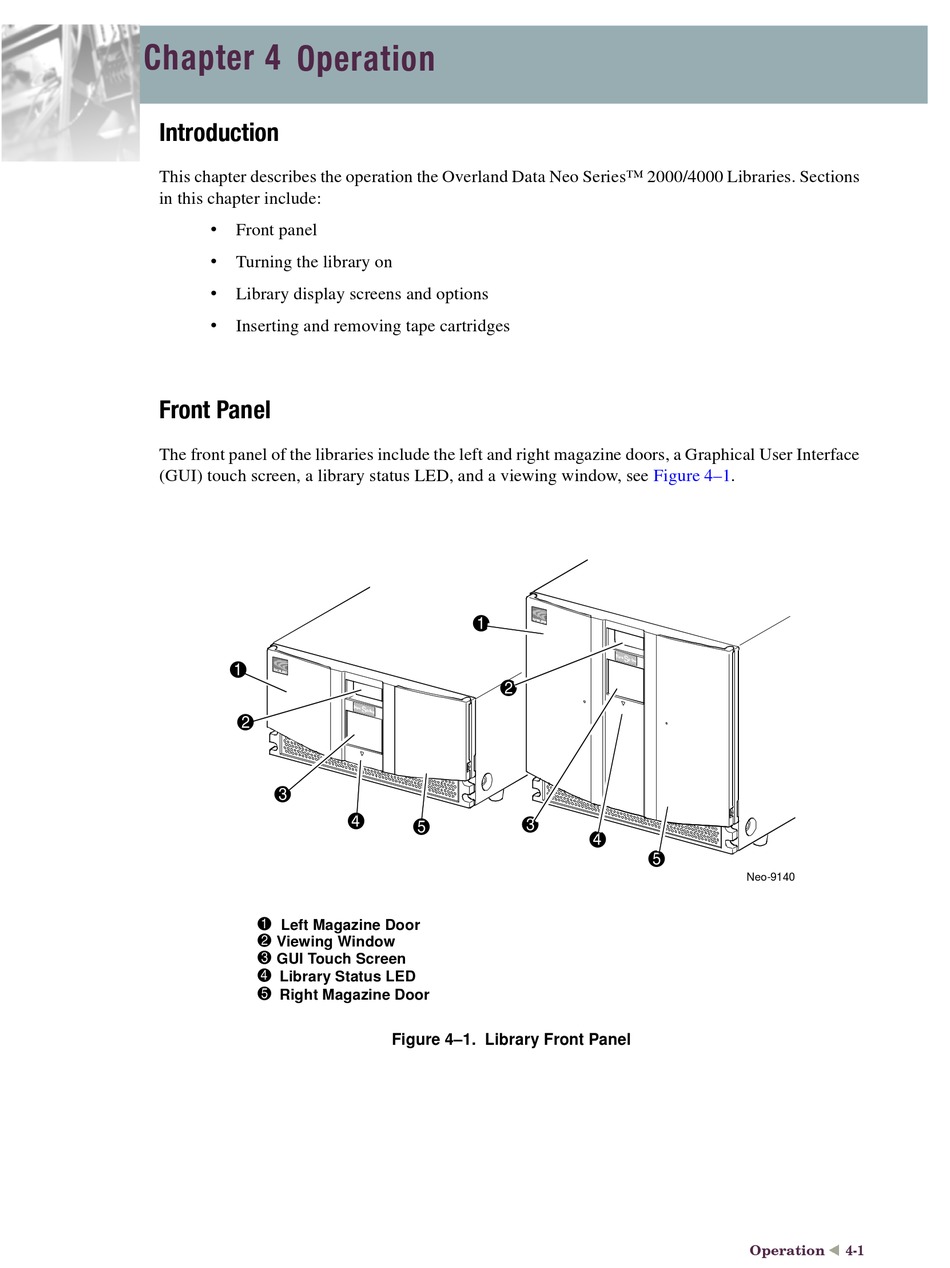

Figure 4–1. Library Front Panel
Figure 4–1.
4
5
Neo-9140
Operation 4-1
