Card Cage Fan Replacement

2-40 Servicing the Neo Series 2000
u
1) Position the Card Cage Fan inside the left magazine area with the cable at the top left corner.
The airflow direction is from the main chassis area into the Card Cage/Back Plane connector
area, see Figure 2–40.
2) Place the fan shroud and fan over the two mounting studs while guiding the cable through the
cable access hole into the card cage/back plane area.
3) Install the two screws that secure the fan shroud and fan to the studs.
4) Replace the cable at connector J11 on the Card Cage/Back Plane PCB, see
5) Replace the Card Cage/Back Plane Connector Access Plate if removed.
6) Replace the Drive 1 Shoe Assembly using
instructions in this chapter if removed.
7) Replace the tabletop cover, front main cover and Fan Cover Assembly using
Remove and Replace" instructions in this chapter.
8) Turn on the library module as follows: (see
1

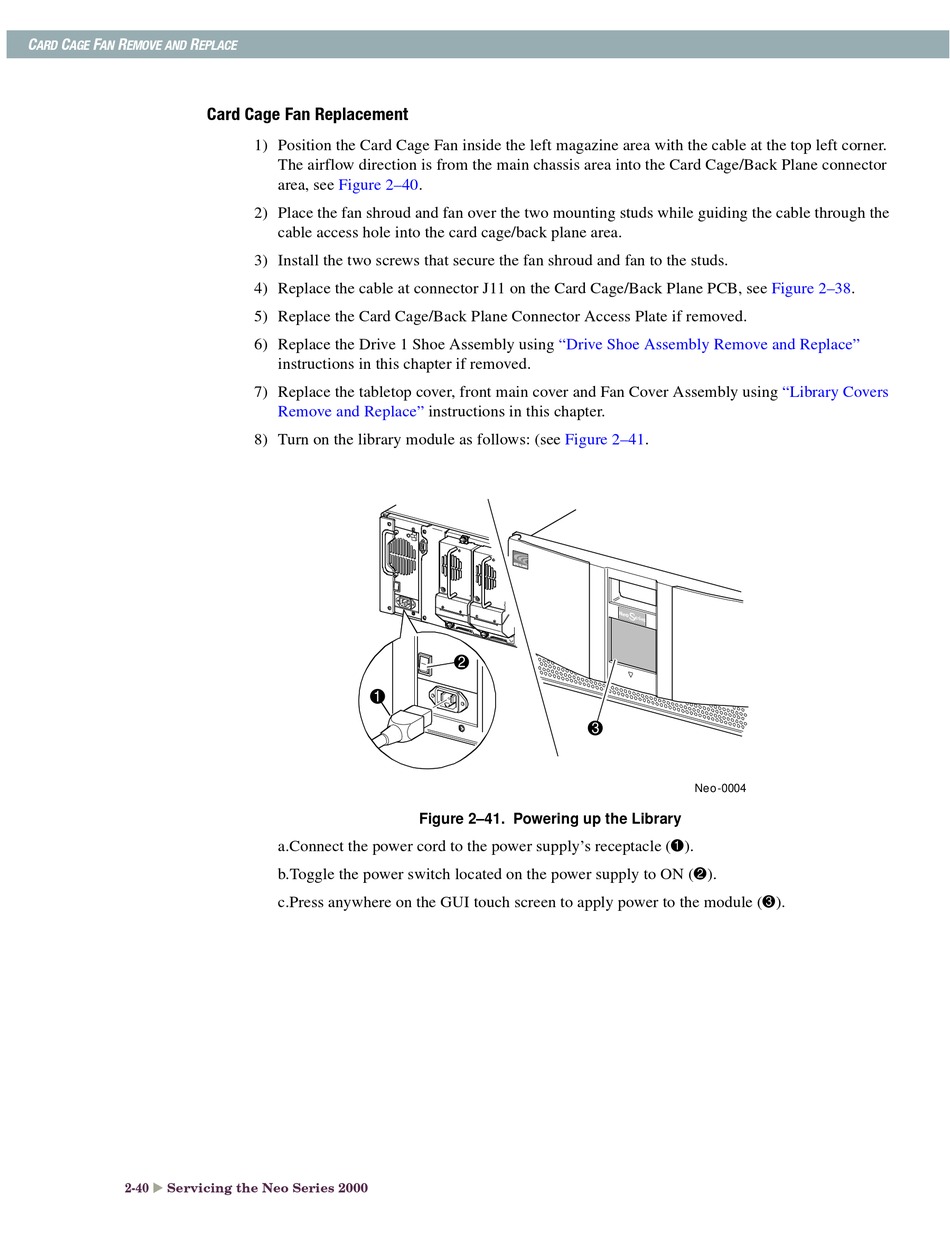

Figure 2–41. Powering up the Library
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
"Drive Shoe Assembly Remove and Replace"
Figure 2–41.
2
3
Figure 2–38.
"Library Covers
Neo-0004
