7) Remove Belt Tensioning Components, see
a. Remove the 2 screws and springs from Tensioner Ramp/Idler Pulley.
b. Remove the 2 screws to the Tensioner Ramp/Idler Pulley.
c. Remove Tensioner Ramp/Idler Pulley.

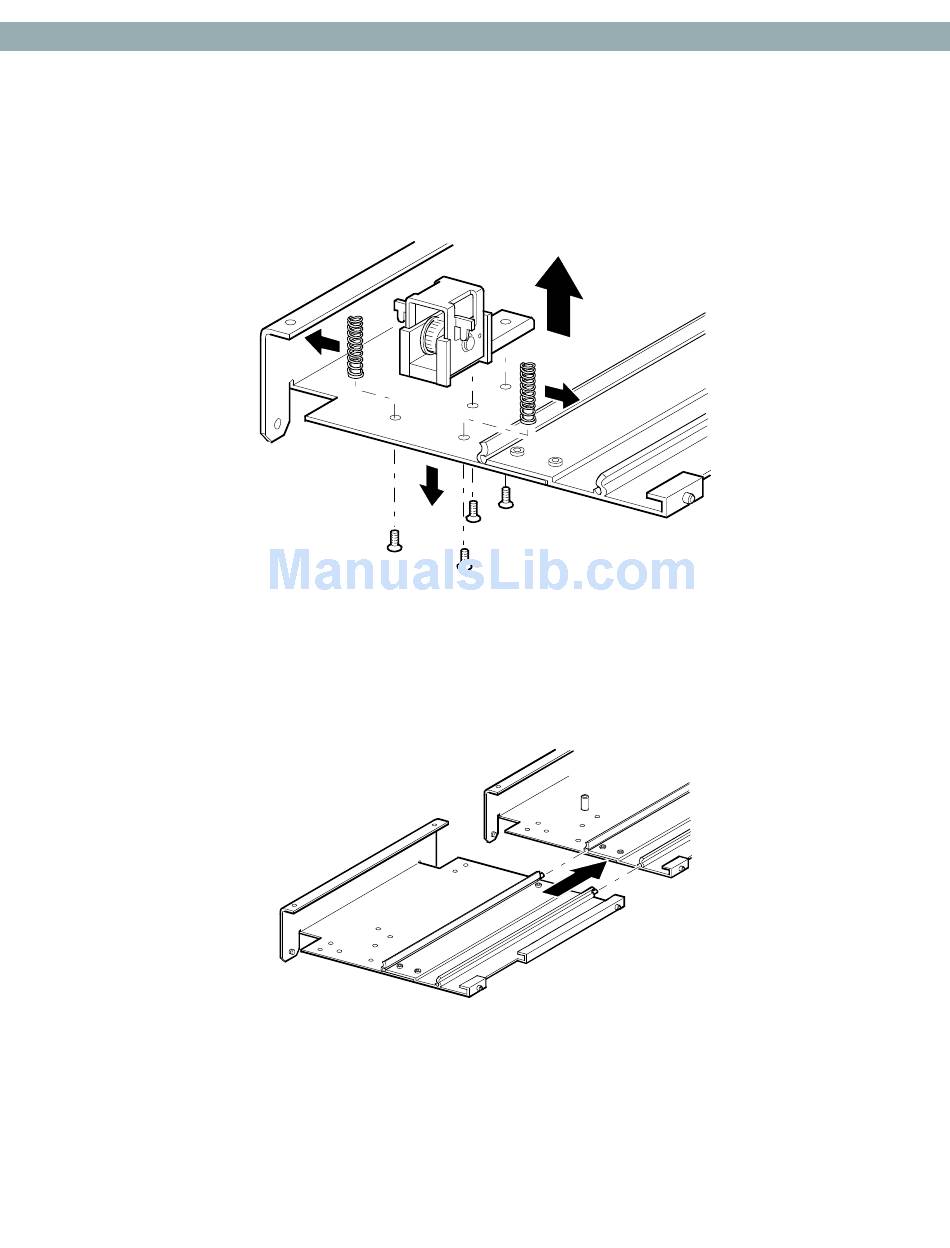

Figure C–13. Tensioner Ramp/Idler Pulley
8) Mounting the Elevator extension:
a. Insert alignment pins of the extension to the slot at the bottom of the
Figure C–14.
Figure C–14. Elevator Extension Alignment
b. Align the tie bar pins of the 2 narrow tie bars to the holes in the extension and primary chassis and attach
with the four mounting screws (2 each). See
Figure C–13.
Elevator
Figure C–15.
E A E
LEVATOR SSEMBLY XTENSION
Neo-9108
Primary chassis. See
Neo-9109
C-15
