Rotating Track Flex Cable Replacement; Figure 3-101 Shuttle Flex Cable Connections - Overland Storage Neo Series Library Service Manual

S A F C R
HUTTLE SSEMBLY LEX ABLE

Rotating Track Flex Cable Replacement

3-102 Servicing the Neo Series 4000
u
R
EMOVE AND EPLACE
J6

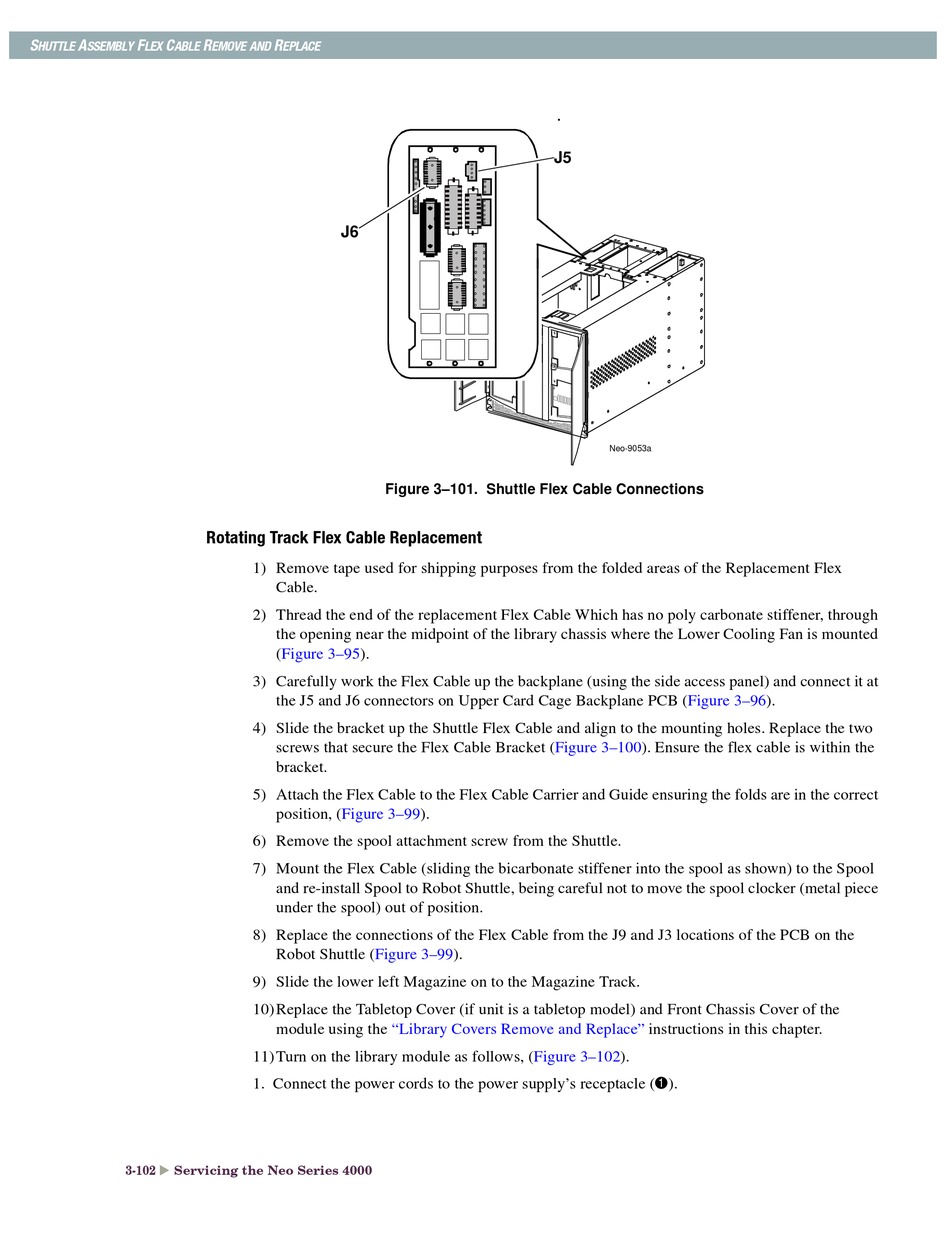

Figure 3–101. Shuttle Flex Cable Connections
1) Remove tape used for shipping purposes from the folded areas of the Replacement Flex
Cable.
2) Thread the end of the replacement Flex Cable Which has no poly carbonate stiffener, through
the opening near the midpoint of the library chassis where the Lower Cooling Fan is mounted
(Figure 3–95).
3) Carefully work the Flex Cable up the backplane (using the side access panel) and connect it at
the J5 and J6 connectors on Upper Card Cage Backplane PCB
4) Slide the bracket up the Shuttle Flex Cable and align to the mounting holes. Replace the two
screws that secure the Flex Cable Bracket
bracket.
5) Attach the Flex Cable to the Flex Cable Carrier and Guide ensuring the folds are in the correct
position, (Figure 3–99).
6) Remove the spool attachment screw from the Shuttle.
7) Mount the Flex Cable (sliding the bicarbonate stiffener into the spool as shown) to the Spool
and re-install Spool to Robot Shuttle, being careful not to move the spool clocker (metal piece
under the spool) out of position.
8) Replace the connections of the Flex Cable from the J9 and J3 locations of the PCB on the
Robot Shuttle (Figure
9) Slide the lower left Magazine on to the Magazine Track.
10) Replace the Tabletop Cover (if unit is a tabletop model) and Front Chassis Cover of the
module using the
11) Turn on the library module as follows,
1. Connect the power cords to the power supply's receptacle (1).
.
J5
(Figure
3–99).
"Library Covers Remove and Replace"
(Figure
Neo-9053a
(Figure 3–96).
3–100). Ensure the flex cable is within the
instructions in this chapter.
3–102).
