Rear Vertical Axis Assembly Remove and Replace

Removing the Rear Vertical Axis Assembly

3-88 Servicing the Neo Series 4000
u
R
EMOVE AND EPLACE
1) Using the Graphical User Interface (GUI), open the Left Magazine Door and remove the
upper and lower magazines.
NOTE: This allows for extra room and an area to stow the flex cable.
2) Secure power to the library module via the GUI, depress the power switches at the rear of the
unit and remove the power cords.
3) Remove the Tabletop Cover and Front Chassis Cover of the module using the
Remove and Replace"
4) Verify Left Magazine door is open and magazines are removed. If not, follow below procedure
for emergency magazine removal.
Locate the Door Release Access holes at the midpoint of the magazine doors and open the left
Magazine door manually using a thin, stiff metal rod (such as a hex key, 0.050), push the rod into
the manual access door release until the door opens. Remove the upper and lower magazines. This
allows for extra room and an area to stow the flex cable.
5) Remove the Flex Cable from the Flex Cable Guide and Carrier and retain the lower clip for
reinstallation.

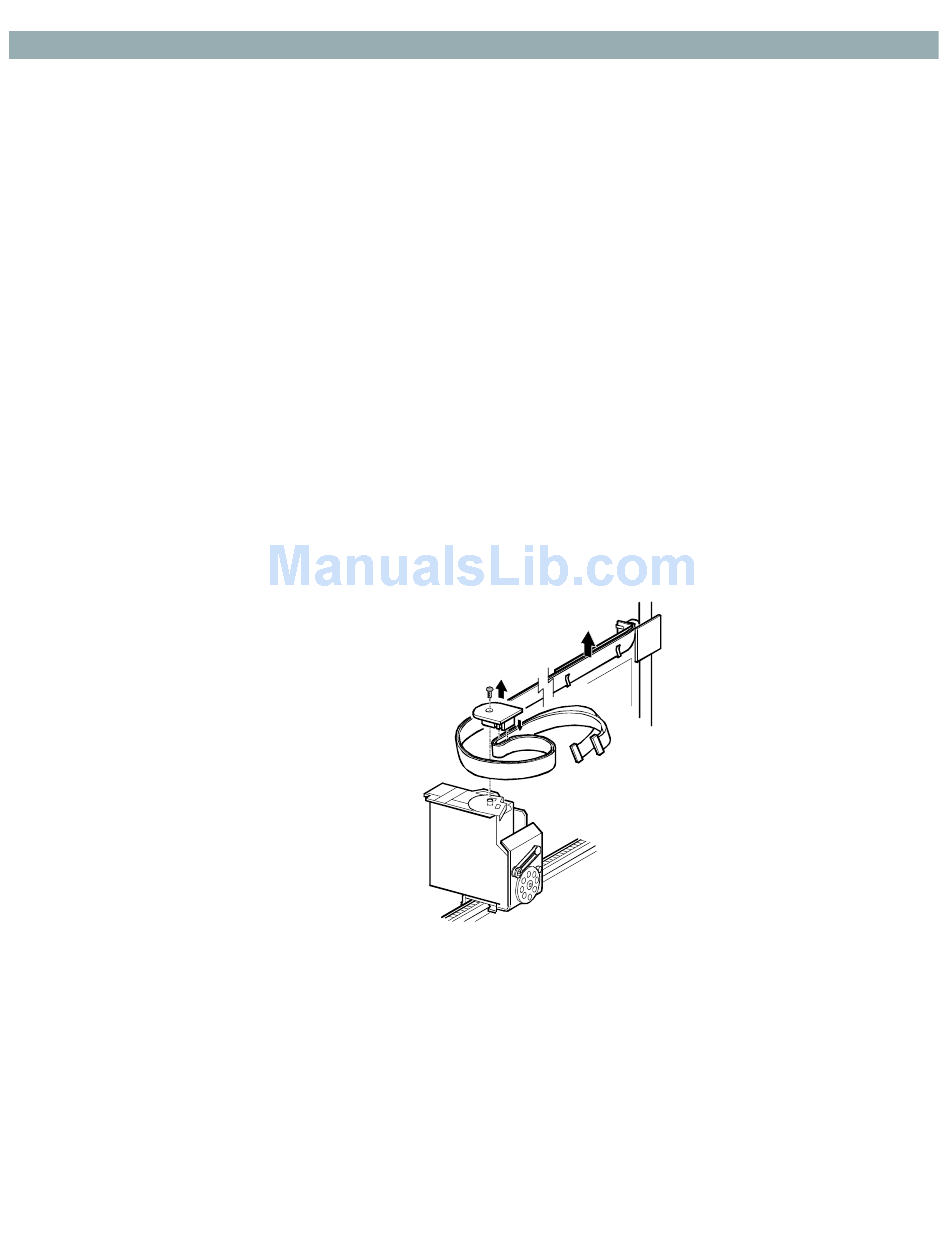

Figure 3–85. Flex Cable, carrier and clip removal
6) Stow Flex Cable in Left Magazine bay.
7) Remove the two upper mounting screws.
8) Tilt the unit inward and cut the cable tie from the drive motor.
9) Remove the 7 pin connector from the rear Vertical Axis Drive assembly,
instructions in this chapter.
"Library Covers
Neo-7000
(Figure 3–86).
