L C R R
IBRARY OVERS EMOVE AND EPLACE

Library Covers Remove and Replace

Tabletop Model Cover Removal

Tabletop Model Cover Replacement

Library Inside Covers

The Library has three inside covers. The Front Chassis Cover can be removed to gain access to the
shuttle assembly, magazine solenoids, and control panel board. The Power Supply Receiver cover is used
to prevent internal access to the installed power supplies. The Fan Cover Assembly is used as a mounting
platform for the Fibre Channel Option cooling fan and to prevent internal access to the installed tape
drives and Card Cage/backplane assembly.

Front Chassis Cover Removal

2-4 Servicing the Neo Series 2000
u
1) Remove the four screws that secure the Outer Skin to the library chassis, see
2) Carefully slide the cover toward the rear of the library until it clears the front panel and then
lift it up and away from the library chassis.

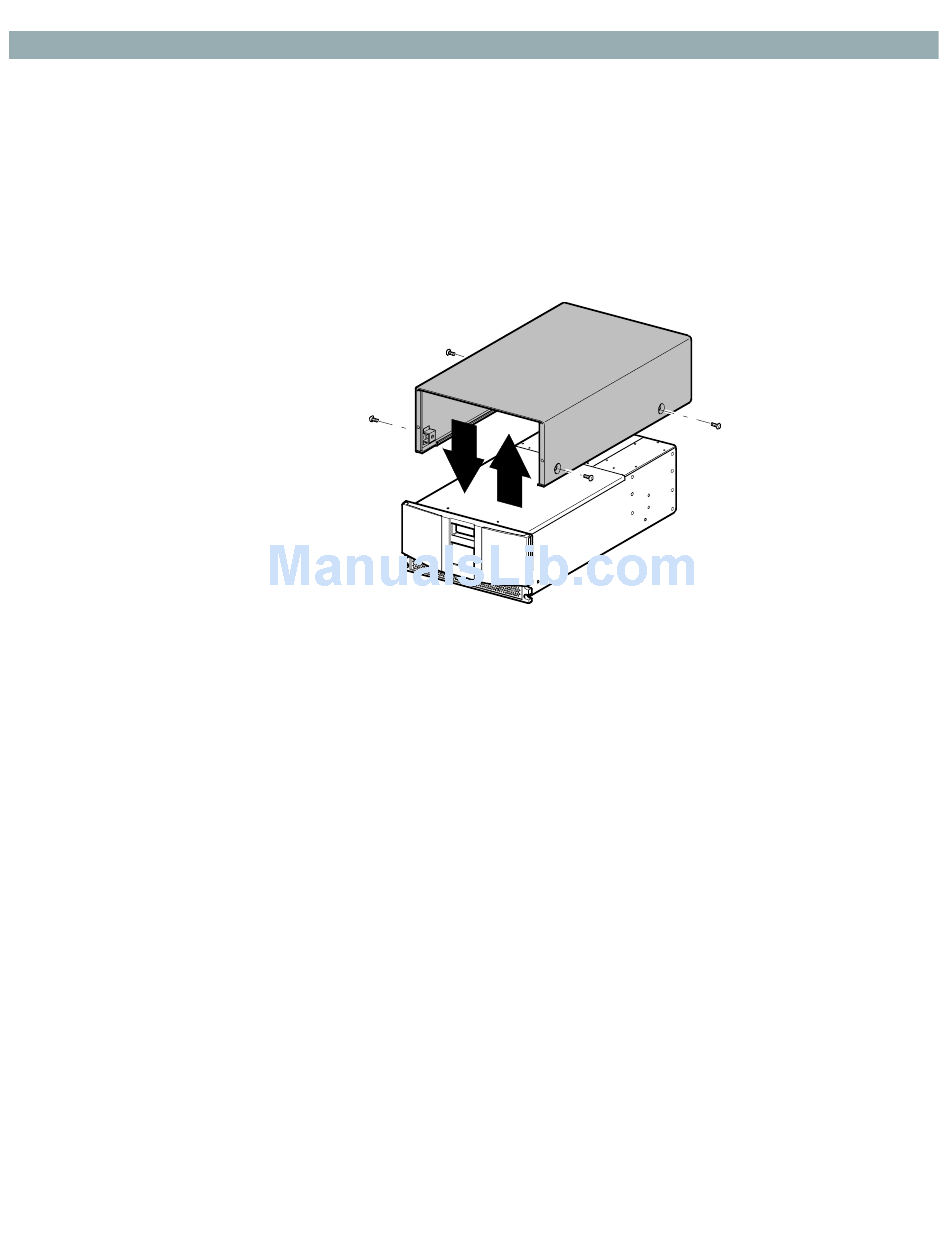

Figure 2–3. Tabletop Model Outer Skin Removal
1) Place the tabletop cover to the rear of the library chassis, see
2) Carefully slide the cover toward the front of the library to the front panel.
3) Replace the four screws that secure the tabletop cover to the library chassis.
1) Remove the two screws that secure the cover to the library chassis, see
2) Carefully slide the Front Chassis cover toward the front of the library to release the two rear
tabs and then lift it up and away from the library chassis.
Figure 2–3.
Neo-9039
Figure 2–3.
Figure 2–5.
